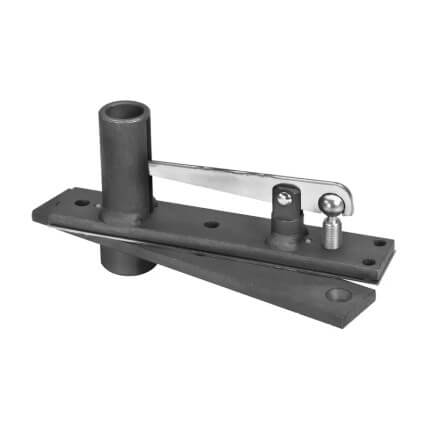

Rixson H345, Door Closer Pivot, Longer Throw Pin for Taller Doors Top Pivot, Heavy Duty
Rixson H340 Door Pivot for Door Closers, an optional top pivot that can withstand earthquakes for doors taller than 8' 6". In addition to maintaining door alignment, pivots help with floor closer and top pivot installation. Available in multiple finishes. View the options and details below.
PRICED PER UNITÂ
Rixson H340 Door Pivot for Door Closers, an optional top pivot that can withstand earthquakes for doors taller than 8' 6". In addition to maintaining door alignment, pivots help with floor closer and top pivot installation. Available in multiple finishes. View the options and details below.
Features:
- Fully concealed
- Non-handed
- Ideal for locations where there is a fear of dramatic building settling or for doors over 8'6" (2591mm) in height

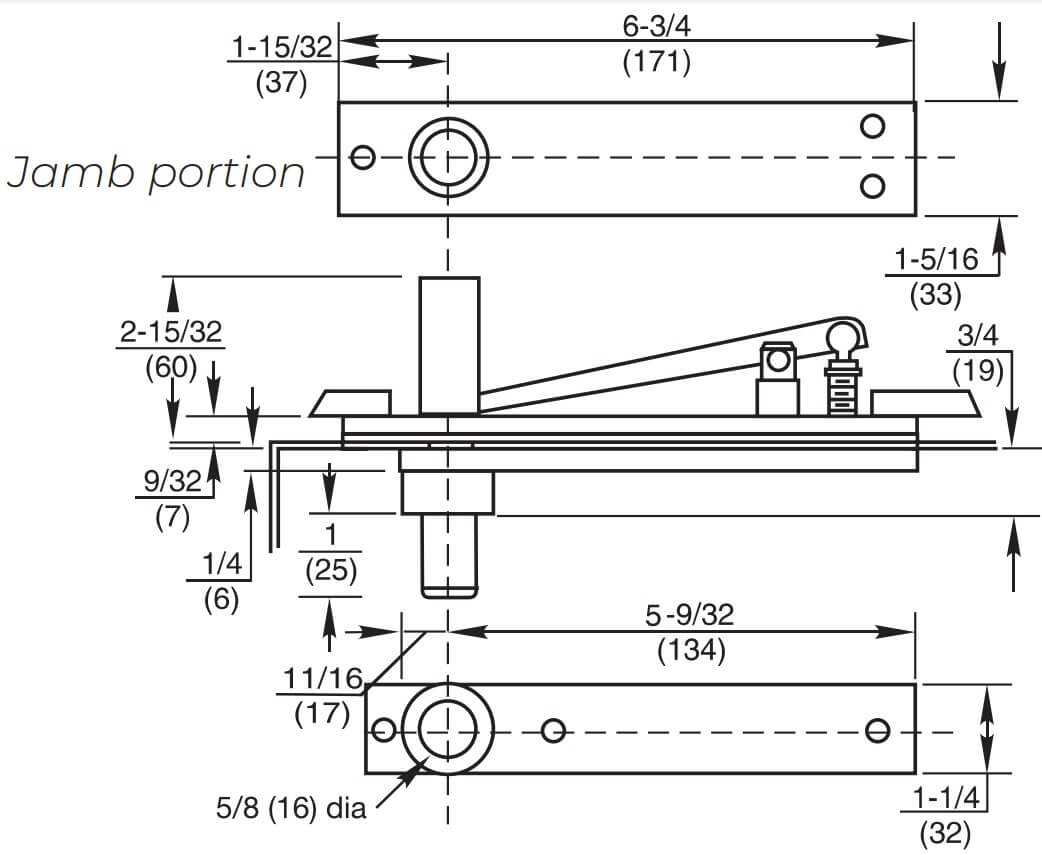

- Long pivot pin engages in top of door 1-3/4"(44mm)
- Can be used with any center hung bottom pivot or floor closer whose pivot point is 2-3/4" (70mm), or greater, from the edge of the door; order pivot set or floor closer LTP (less top pivot) with H345 on separate line item
- Walking beam-type pivot – 11/16" (17mm) diameter pivot pin
- Heavy-duty needle bearing
- Furnished with wood and machine screws

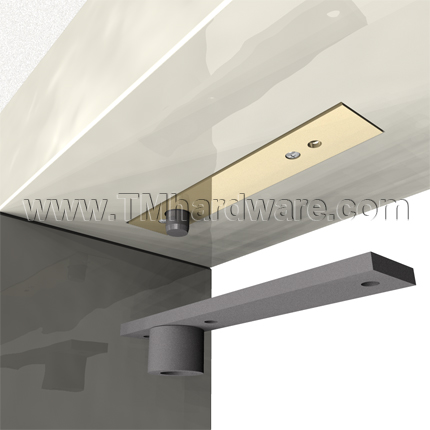

- Completely concealed when door is closed
PRICED PER UNITÂ
This product has a 2-year limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.Â
Click here to view Rixson 345, Door Closer Pivot, Longer Throw Pin for Taller Doors Top Pivot
-
QuickShipNo
-
ManufacturerRixson
-
MPNH345
- Description
-
SeriesNorton H345 Series
-
- Finishes
-
FinishBright Brass (605), Satin Brass (606), Polished Bronze (611), Satin Bronze (612), Oil Rubbed Bronze (613), Polished Nickel (618), Satin Nickel Plated (619), Flat Black (622), Bright Chrome Plated (625), Satin Chrome Plated (626)
-
- Compliance Details
-
Warranty2 Year Limited Warranty
-
