Home > Door Trim > Door Protectors > Edge Guards > Rockwood 302B, Mortise Door Edge, 93° U-Shaped, 1-3/4" Doors, up to 8FT

Rockwood 302B, Mortise Door Edge, 93° U-Shaped, 1-3/4" Doors, up to 8FT

Rockwood 302B, Mortise Door Edge, 93° U-Shaped, 1-3/4" Doors, up to 8FT

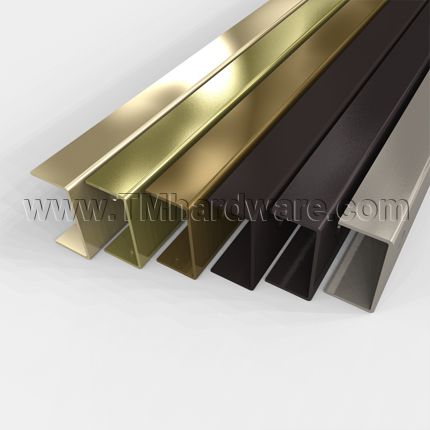

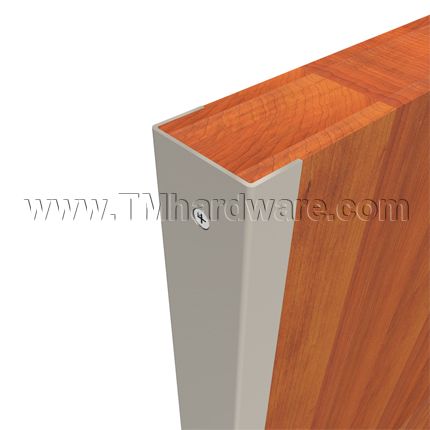

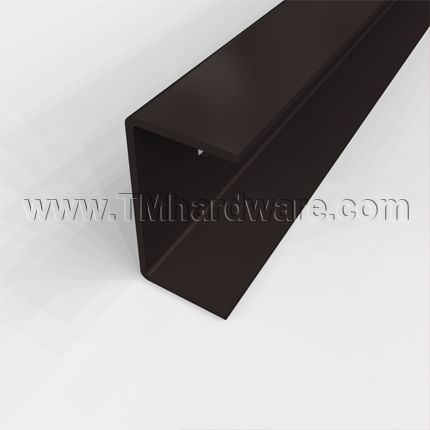

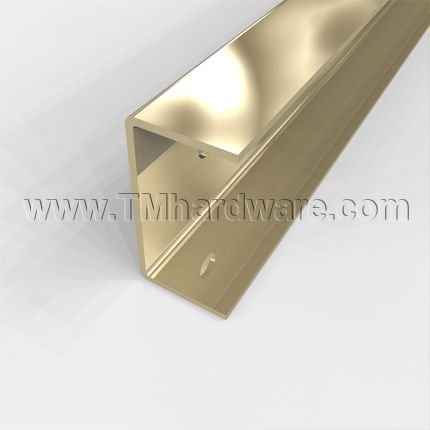

Rockwood 93° U Shaped Mortised Door Edge Rockwood 93° U Shaped Mortised Door Edge Rockwood 93° U Shaped Mortised Door Edge in US10B finish Rockwood 93° U Shaped Mortised Door Edge in US32D finish applied to Interior Door Rockwood 93° U Shaped Mortised Door Edge in US3 finish Rockwood Finishes

Rockwood's 93° U Shaped Mortised Door Edge is designed to protect the corners of the door, thereby extending door life. Designed for doors 1-3/4" thick, and Beveled Door. Door Edge Size 1-3/4" x 7/8". Available in a variety of finishes and lengths up to 96".

PRICED PER PIECE-See full product details in the tabs below

Market price: $232.00
save 55%
Price: $104.40
Size Range
Length (Inches)
UL Labeling
Save to wishlist
Made in USA
SKU R302B-42-US3
Shipping See Shipping Tab Below

Rockwood's 93° U Shaped Mortised Door Edges features:

Mortised Application: Door edges are sized to be mortised into the surface of 1-3/4" thick wood doors.

Design: U shaped design, Beveled Door

Dimensions: 1-3/4" x 7/8" x specify length up to 96" (Larger lengths can be purchased through our office)

Fastener: #6 x 5/8" FH SMS included

Thickness: Designed doors 1-3/4" thick. Custom sized doors can be purchased through our office.

Material: .050" Brass, Bronze, Stainless Steel

Finishes: See options above, See Rockwood Color Chart for a detailed list of Rockwood finishes.

Cutouts: Cutouts for flush bolts, lock strikes, locks, and hinges available (Can be purchased through our office)

Compliance Details: UL fire rated listed for stainless steel, brass and bronze. For use on wood or plastic faced fire doors rated up to and including 1-1/2 hours or hollow metal, steel covered, composite type fire doors rated up to and including 3 hours. Specify UL Labeling Required in Options when ordering.

Priced per piece.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

Product has a 1 year warranty against defects in material and workmanship
Click to view our Full Warranty Policy.

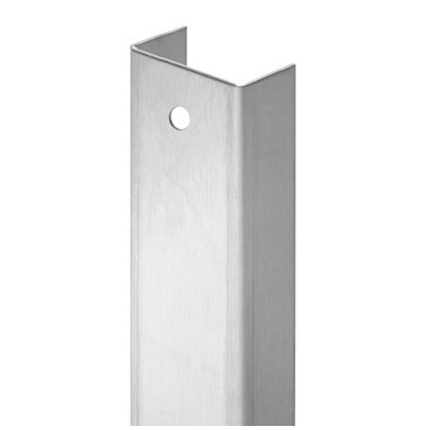

Click Here to view our Rockwood 90° U Shaped Mortised Door Edge

Product Specs
Compliance Details

Finishes comply with the following ANSI/BHMA Codes:

  • Bright Brass, Clear Coated-US3/605
  • Satin Brass, Clear Coated-US4/606
  • Satin Bronze, Clear Coated-US10/612
  • Dark Oxidized Satin Bronze, Oil Rubbed-US10B/613
  • Dark Oxidized Satin Bronze, Equivalent-US10BE/613E
  • Satin Stainless Steel-US32D/630
Shipping / Returns
  • Ship Time:
    • Stock QuickShip Items: If available, QuickShip Items are listed above. Quickship items ship within 4 business days. Quantities may be limited.
    • Expedite options are available. Please call to confirm stock and shipping time.
    • Standard Items: Items are custom made to order and require a lead time of 10-14 business days.
    • Ships via major carriers, such as UPS or FedEx Ground, with tracking information provided.
  • Domestic Shipping Fees- (Hawaii and Alaska not Included):
    • FREE SHIPPING on orders over $200.00 (excludes oversized and freight orders).
    • There will be a flat $19.99 shipping and handling fee on orders under $200.00.
    • Oversized Items: Items 86" and above have an oversize surcharge of $70.00
    • Freight Orders: Items 95" and above require freight shipment and have a shipping charge of $150.00
    • Orders totals above $1,500.00 will ship free, regardless of size.
  • Alaska and Hawaii, Canada, and International Shipping:
  • Returns:
    • Stock Items can be returned up to 6 months from date of purchase with a 30% Restock fee. Items must be in new, resaleable condition.
    • All other items are custom made to order and are not returnable.
    • We are commited to your satisfaction. As a courtesy, we may, at our discretion accept returns with a minimum 30% restock fee.
    • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
    • Return shipping is customer's responsibility. A return address will be provided with RMA#.
    • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
