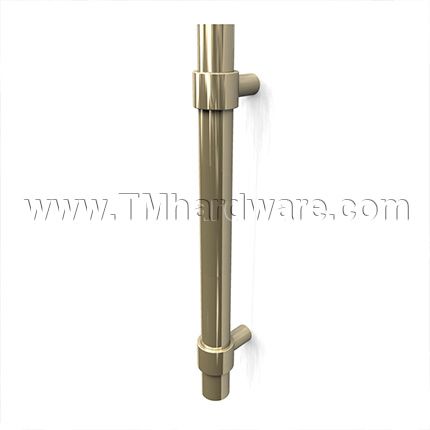

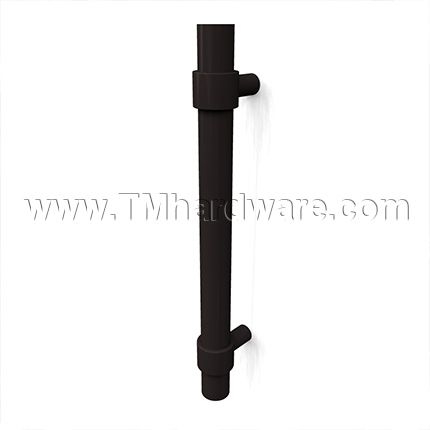

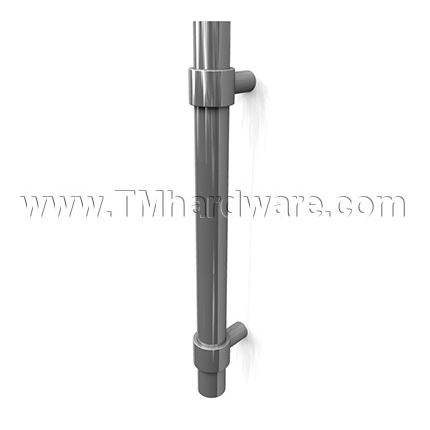

Rockwood BandWidth RM2200 - RM2210 Straight Pull - Flat Ends, up to 8FT OA

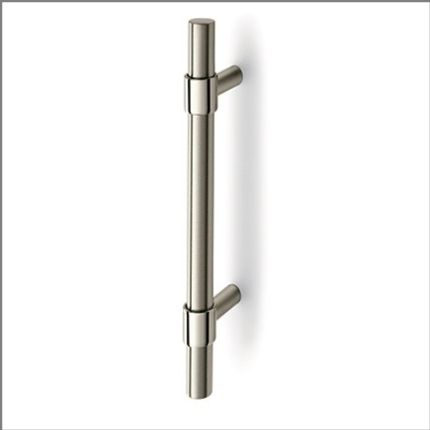

Rockwood RM2200 - RM2210 BandWidth Straight Door Pull features a collar that attaches the grip section to the mounting posts. Available in lengths 12" - 96". This Pull can be purchased as a single pull or as a push / pull set with back to back mounting. Many variations of size, material and finishes are available, see below for details and options.
PRICED PER PIECE / SET
Rockwood RM2200 -RM2210 BandWidth Straight Door Pull for High End Commercial Applications.

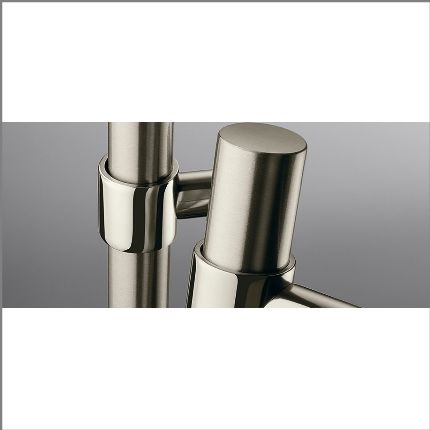

About BandWidth Line: The BandWidth design features a collar that attaches the grip section to the mounting posts. Available in lengths 12" - 96". Click here to view our full BandWidth Architectural Door Hardware Line.

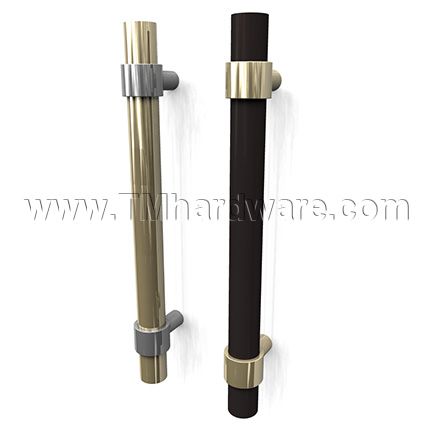

*The collar can be furnished in a matching finish and base metal, or any combination of contrasting finishes of similar or dissimilar metals. Contact our office for pricing.
Part # | Diameter | Projection |
RM2200 | 1.00" | 2.75" |
RM2210 | 1.25" | 3.00" |
*A mid post should be purchased for longer lengths
Mounting Types:
- Single Pull - provided with thru-bolt mount
- Push / Pull Set - provided with back to back concealed mounting
Door Types:
- Wooden Door - 1-3/4" Thick
- Metal Door - 1-3/4" Thick
- Glass Door - 1/2" Thick
- For additional thickness, please add to order comments
Additional Fastener Options (can be purchased through our office):
- Concealed mounting single pulls, Standard and Heavy Duty Types 6, 6R, 8 - See Additional Options
- Y Base Plates are recommended for wooden and glass doors to make a stable and durable mounting - can be purchased through our office.
Priced per set / piece
Available Finishes: See options above, see Rockwood Finishes Chart for a detailed list of all Rockwood finishes.
Custom finishes available. For details and pricing please call us at 845-388-1300.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
The mounting is guaranteed for the lifetime of the building. Click here to view our Full Warranty Policy.
For our Rockwood MezzoTek Push Bar with GripZone see our Rockwood RM2132 Push Bar.
-
QuickShipNo
-
ManufacturerRockwood Company
-
MPNRM2200, RM2210
-
Product TypeSingle Pull - Thru-Bolt Mount, Push / Pull Set - BTB Mounting
-
Product Code#RM2200 - 1.00" Diameter, #RM2210 - 1.25" Diameter
-
Door TypeWooden - 1.75" Thick, Metal - 1.75" Thick, Glass - .5" Thick
- Finishes
-

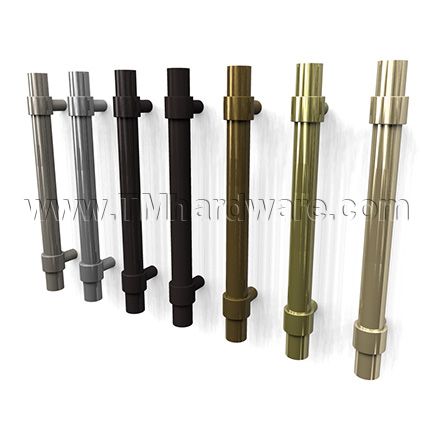

FinishPolished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Oil Rubbed Bronze, Equiv. (10BE), Polished Stainless Steel (US32), Satin Stainless Steel (US32D)
-

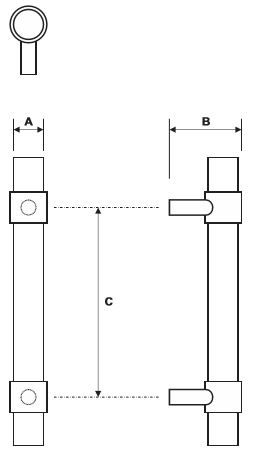

Product Code | A | B | C |
#RM2200 | 1.00" | 2.75" | 8", 10", 12” up to 96" |
#RM2210 | 1.25" | 3.00" | 8", 11", 16” up to 96" |
*A mid post should be purchased for longer lengths
Standard Mountings - Select from Options Above |
||
Also available in Heavy Duty Back to Back Mounting: features hex drive for positive tightening and large overall size for superior strength. Recommended for high frequency and rough service openings.
|
||
Optional Mounting Types - Can be purchased through our office |
||
Also available in Heavy Duty Concealed Mounting: features two set screws 180º apart. To view more details on these mounting types, see Mounting Types for Door Pulls. |
All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard:
- Polished Brass-US3/605
- Satin Brass-US4/606
- Satin Bronze-US10/612
- Satin Oil Rubbed Bronze-US10B/613
- Dark Oxidized Satin Bronze, Equivalent-US10BE/613E
- Polished Stainless Steel-US32/629
- Satin Stainless Steel-US32D/630
