Rockwood BandWidth RM2202 - RM2212 Push Bar - Flat Ends, up to 36" CTC

Rockwood BandWidth RM2202 - RM2212 Push Bar - Flat Ends, up to 36" CTC
Rockwood Company

Rockwood RM2202 - RM2212 BandWidth Push Bar with Flat Ends, is up to 36" CTC and features a collar that attaches the grip section to the mounting posts. This Push Bar is available as a single push bar or as a push / pull set with back to back mounting. Many variations of size, material and finishes are available, see below for details and options.

PRICED PER PIECE / SET

See tabs below for additional information
    • SKU
      RKRM2202_US32D
    • Market price:$523.00
      • save 5%
    • Starting price: Price: $496.85 per item


    Rockwood RM2202 -RM2212 BandWidth Push Bar with Flat Ends for High End Commercial Applications.

    About BandWidth Line: The BandWidth design features a collar that attaches the grip section to the mounting posts. Click here to view our full BandWidth Architectural Door Hardware Line.

    *The collar can be furnished in a matching finish and base metal, or any combination of contrasting finishes of similar or dissimilar metals. Contact our office for pricing.

     Part #  Diameter   Push CTC  Projection
     RM2202  1.00"  up to 36"  2.75"
     RM2212  1.25"  up to 36"  3.00"

    Don't know what length push bar you need? Click here to view How to Size a Push Bar.

    *A mid post should be purchased for longer lengths

    Mounting Types:

    • Single Push Bar - provided with thru-bolt mount
    • Push / Pull Set - provided with back to back concealed mounting

    Door Types:

    • Wooden Door - 1-3/4" Thick
    • Metal Door - 1-3/4" Thick
    • Glass Door - 1/2" Thick
    • For additional thickness, please add to order comments

    Additional Fastener Options (can be purchased through our office):

    • Concealed mounting single pulls, Standard and Heavy Duty Types 6, 6R, 8 - See  Additional Options
    • Y Base Plates are recommended for wooden and glass doors to make a stable and durable mounting - can be purchased through our office.

    Priced per set / piece

    Available Finishes: See options above, see Rockwood Finishes Chart for a detailed list of all Rockwood finishes.

    Custom finishes available. For details and pricing please call us at 845-388-1300.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
    The mounting is guaranteed for the lifetime of the building.     Click here to view our Full Warranty Policy.

    For our Rockwood BandWidth Push Bar with Round Ends see our Rockwood RM2206 Push Bar.

      • SKU
        RKRM2202_US32D
    • QuickShip
      No
    • Manufacturer
      Rockwood Company
    • MPN
      RM2202, RM2212
    • Product Type
      Single Push Bar - Thru-Bolt Mount, Push / Pull Set - BTB Mounting
    • Product Code
      #RM2202 - 1" Dia, #RM2212 - 1.25" Dia.
    • Door Type
      Wooden - 1.75" Thick, Metal - 1.75" Thick, Glass - .5" Thick
    • Finishes
      • Finish
        Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Oil Rubbed Bronze, Equiv. (10BE), Polished Stainless Steel (US32), Satin Stainless Steel (US32D)

    Click to Print

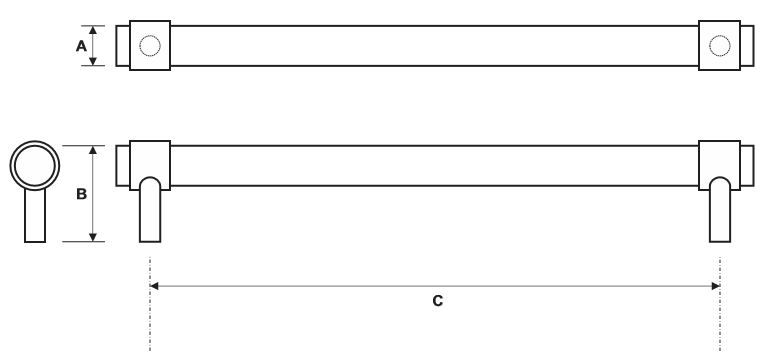

    Rockwood RM2202 Push Bar Product Specs

     Product #  A  B  C
     RM2202  1.00"  2.75"  up to 36"
     RM2212  1.25"  3.00"  up to 36"



     Standard Mountings - Select from Options Above
    *Includes standard strength mount. For Heavy Duty Mounting, please purchase through our office

    Also available in Heavy Duty Back to Back Mounting: features hex drive for positive tightening and large overall size for superior strength. Recommended for high frequency and rough service openings.



     Optional Mounting Types - Can be purchased through our office

    Also available in Heavy Duty Concealed Mounting: features two set screws 180º apart.

    To view more details on these mounting types, see Mounting Types for Door Pulls.



    All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard:

    • Polished Brass-US3/605
    • Satin Brass-US4/606
    • Satin Bronze-US10/612
    • Satin Oil Rubbed Bronze-US10B/613
    • Dark Oxidized Satin Bronze, Equivalent-US10BE/613E
    • Polished Stainless Steel-US32/629
    • Satin Stainless Steel-US32D/630
