Rockwood LineaMet RM3510 - RM3520 Straight Pull with Grooved Grip Area - Flat Ends, up to 8FT OA

This product has been discontinued. To view a similar item see our Rockwood LineaMax RM3701 - RM3702 Straight Pull

See tabs below for additional information
    • SKU
      RKRM3510_12_US32D
    Call for price!
    845-388-1300

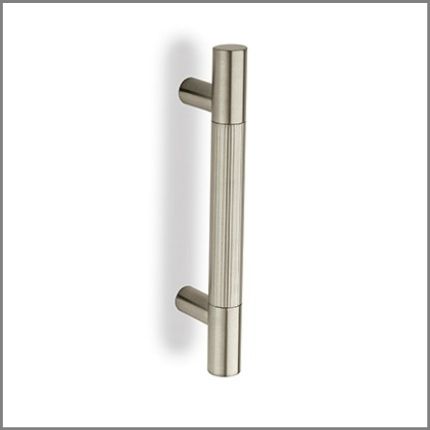

    Rockwood RM3510 -RM3520 LineaMet Straight Door Pull with Flat Ends for High End Commercial Applications.

    About LineaMet Line: The Rockwood LineaMet design group utilizes grooved materials in an unmatched contemporary fashion. Click here to view our full LineaMet Architectural Door Hardware Line.

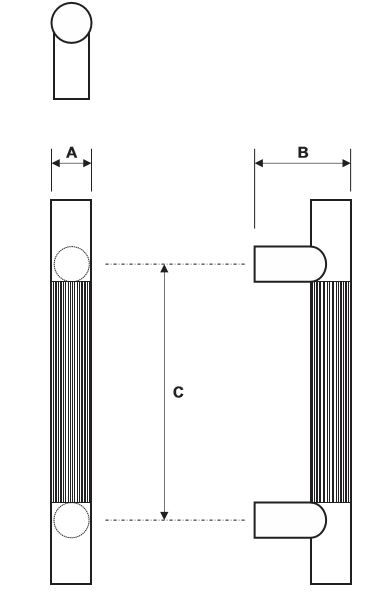

     Part #  Diameter   Projection
     RM3510  1.25"  3.00"
     RM3520  1.50"  3.25"

    *CTC is provided at standard factory locations. If specific CTC is needed add to order comments before completing purchase.

    Mounting Types:

    • Single Pull - provided with thru-bolt mount
    • Push / Pull Set - provided with back to back concealed mounting

    Door Types:

    • Wooden Door - 1-3/4" Thick
    • Metal Door - 1-3/4" Thick
    • Glass Door - 1/2" Thick
    • For additional thickness, please add to order comments

    Additional Fastener Options (can be purchased through our office):

    • Concealed mounting single pulls, Standard and Heavy Duty Types 6, 6R, 8 - See  Additional Options
    • Y Base Plates are recommended for wooden and glass doors to make a stable and durable mounting - can be purchased through our office.

    Priced per set / piece

    Available Finishes: See options above, see Rockwood Finishes Chart for a detailed list of all Rockwood finishes.

    Custom finishes available. For details and pricing please call us at 845-388-1300.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
    The mounting is guaranteed for the lifetime of the building.
    Click here to view our Full Warranty Policy.

    For our Rockwood LineaMet Offset Door Pull see our Rockwood RM3540 Door Pull.

      • SKU
        RKRM3510_12_US32D
    • QuickShip
      No
    • Manufacturer
      Rockwood Company
    • MPN
      RM3510, RM3520
    • Product Type
      Single Door Pull - Thru-Bolt Mount, Push / Pull Set - BTB Mounting
    • Product Code
      #RM3510 - 1.25" Dia., #RM3520 - 1.5" Dia.
    • Door Type
      Wooden - 1.75" Thick, Metal - 1.75" Thick, Glass - .5" Thick
    • Finishes
      • Finish
        Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Oil Rubbed Bronze, Equiv. (10BE), Polished Stainless Steel (US32), Satin Stainless Steel (US32D)

     Standard Mountings - Select from Options Above
    *Includes standard strength mount. For Heavy Duty Mounting, please purchase through our office

    Also available in Heavy Duty Back to Back Mounting: features hex drive for positive tightening and large overall size for superior strength. Recommended for high frequency and rough service openings.



     Optional Mounting Types - Can be purchased through our office

    Also available in Heavy Duty Concealed Mounting: features two set screws 180º apart.

    To view more details on these mounting types, see Mounting Types for Door Pulls.



    All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard:

    • Polished Brass-US3/605
    • Satin Bronze-US10/612
    • Satin Oil Rubbed Bronze-US10B/613
    • Dark Oxidized Satin Bronze, Equivalent-US10BE/613E
    • Polished Stainless Steel-US32/629
    • Satin Stainless Steel-US32D/630
