Rockwood LineaTek RM3612 - RM3622 Push Bar with Grooved Material - Flat Ends, up to 36" CTC
Rockwood LineaTek RM3612 - RM3622 Flat End Push Bars feature a grooved material. Available in 2 diameters. These Push Bars can be purchased as a single push bar or as a push / pull set with back to back mounting. Many variations of size, material and finishes are available, see below for details and options.
PRICED PER PIECE / SET
Rockwood RM3612 -RM3622 LineaTek Push Bar with Flat Ends for High End Commercial Applications.
About LineaTek Line: Rockwood LineaTek pulls feature grooved tubular material that differentiates these pulls from all others on the market. These post mount pulls and push bars make a contemporary statement and are available in brass, bronze, and stainless steel base materials. Click here to view our full LineaTek Architectural Door Hardware Line.

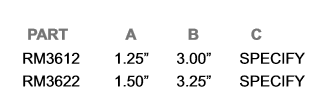

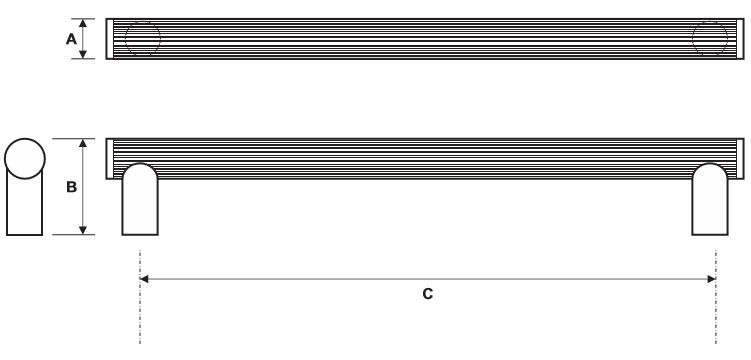

Part # | Diameter | Projection |
RM3612 | 1.25" | 3.00" |
RM3622 | 1.50" | 3.25" |
Don't know what length push bar you need? Click here to view How to Size a Push Bar.
*CTC is provided at standard factory locations. If specific CTC is needed add to order comments before completing purchase.
Mounting Types:
- Single Pull - provided with thru-bolt mount
- Push / Pull Set - provided with back to back concealed mounting
Door Types:
- Wooden Door - 1-3/4" Thick
- Metal Door - 1-3/4" Thick
- Glass Door - 1/2" Thick
- For additional thickness, please add to order comments
Additional Fastener Options (can be purchased through our office):
- Concealed mounting single pulls, Standard and Heavy Duty Types 6, 6R, 8 - See Additional Options
- Y Base Plates are recommended for wooden and glass doors to make a stable and durable mounting - can be purchased through our office.
Priced per set / piece

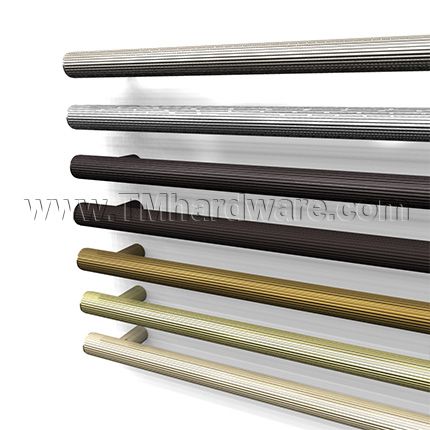

Available Finishes: See options above, see Rockwood Finishes Chart for a detailed list of all Rockwood finishes.
Custom finishes available. For details and pricing please call us at 845-388-1300.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
The mounting is guaranteed for the lifetime of the building. Click here to view our Full Warranty Policy.
For our Rockwood LineaMet Offset Door Pull with Round Ends see our Rockwood RM3644 Door Pull.
-
QuickShipNo
-
ManufacturerRockwood Company
-
MPNRM3612, RM3622
-
Product TypeSingle Push Bar - Thru-Bolt Mount, Push / Pull Set - BTB Mounting
-
Product Code#RM3612 - 1.25" Dia., #RM3622 - 1.50" Dia.
-
Push CTC12”, 12.25", 12.5", 12.75", 13", 13.25", 13.5", 13.75", 14", 14.25", 14.5", 14.75", 15", 15.25", 15.5", 15.75", 16", 16.25", 16.5", 16.75", 17", 17.25", 17.5", 17.75", 18", 18.25", 18.5", 18.75", 19", 19.25", 19.5", 19.75", 20", 20.25", 20.5", 20.75", 21", 21.25", 21.5", 21.75", 22", 22.25", 22.5", 22.75", 23", 23.25", 23.5", 23.75", 24", 24.25", 24.5", 24.75", 25", 25.25", 25.5", 25.75", 26", 26.25", 26.5", 26.75", 27", 27.25", 27.5", 27.75", 28", 28.25", 28.5", 28.75", 29", 29.25", 29.5", 29.75", 30", 30.25", 30.5", 30.75", 31", 31.25", 31.5", 31.75", 32", 32.25", 32.5", 32.75", 33", 33.25", 33.5", 33.75", 34", 34.25", 34.5", 34.75", 35", 35.25", 35.5", 35.75", 36"
-
Door TypeWooden - 1.75" Thick, Metal - 1.75" Thick, Glass - .5" Thick
- Finishes
-

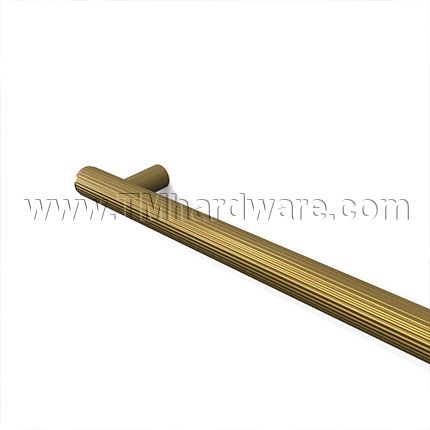

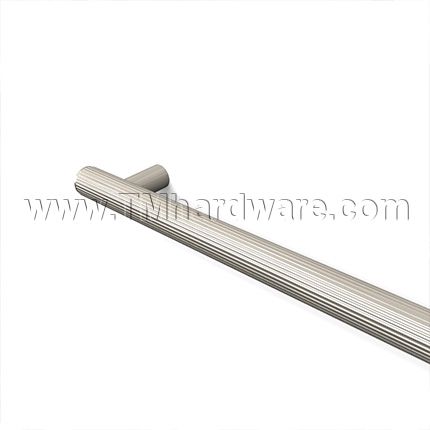

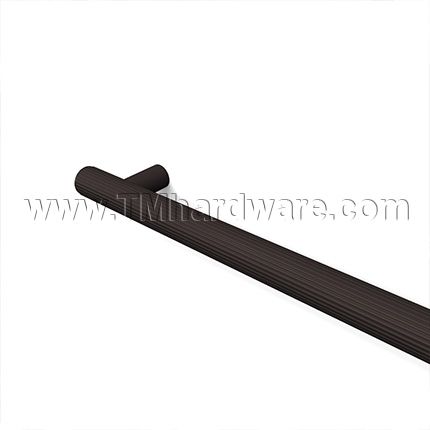

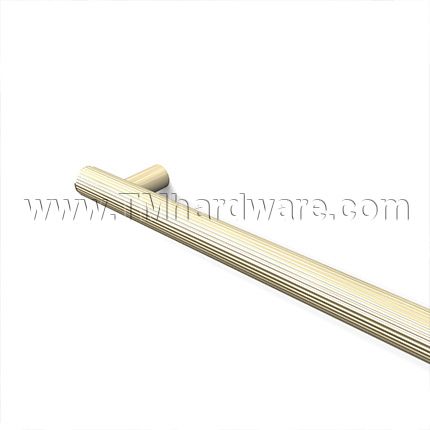

FinishPolished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Oil Rubbed Bronze, Equiv. (10BE), Polished Stainless Steel (US32), Satin Stainless Steel (US32D)
-
Standard Mountings - Select from Options Above |
||
Also available in Heavy Duty Back to Back Mounting: features hex drive for positive tightening and large overall size for superior strength. Recommended for high frequency and rough service openings.
|
||
Optional Mounting Types - Can be purchased through our office |
||
Also available in Heavy Duty Concealed Mounting: features two set screws 180º apart. To view more details on these mounting types, see Mounting Types for Door Pulls. |

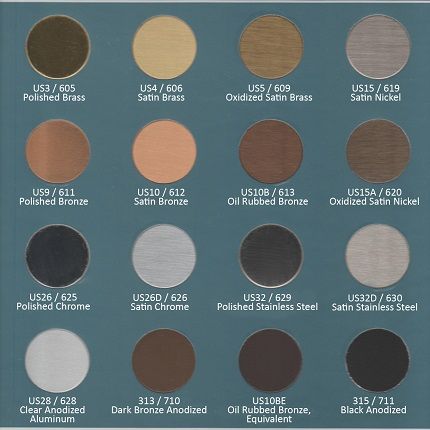

All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard:
- Polished Brass-US3/605
- Satin Brass-US4/606
- Satin Bronze-US10/612
- Satin Oil Rubbed Bronze-US10B/613
- Dark Oxidized Satin Bronze, Equivalent-US10BE/613E
- Polished Stainless Steel-US32/629
- Satin Stainless Steel-US32D/630
