Rockwood LP3301 Full Height with Horizontal Push/Pull Bar, Bolts UP, Bent End

Rockwood LP3301 Full Height with Horizontal Push/Pull Bar, Bolts UP, Bent End
Rockwood Company

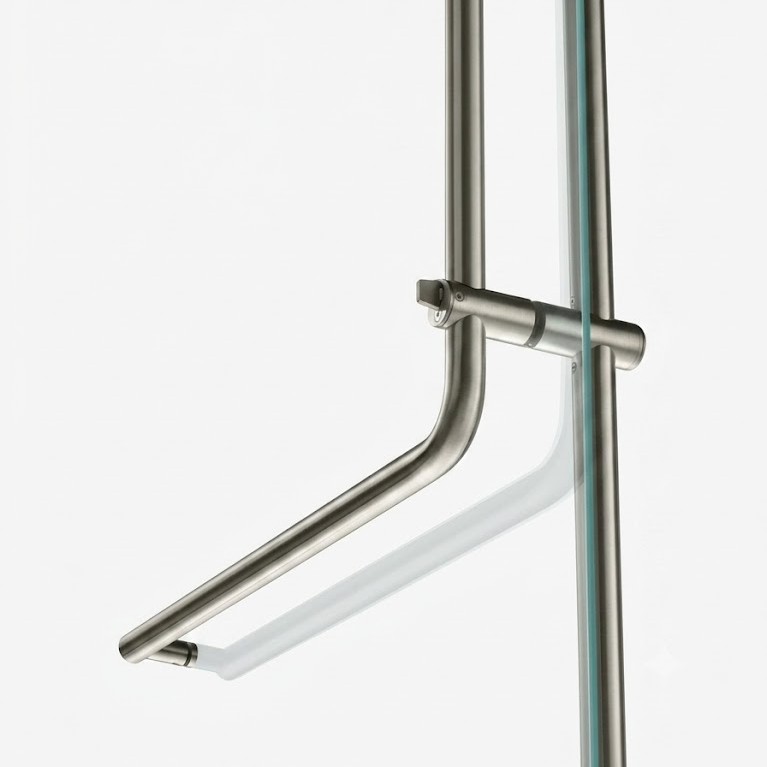

Rockwood LP3301 Full Height with Horizontal Push/Pull Bar, Bolts UP, Bent End combines a dead bolt locking system with a modern post mount door pull. This locking pull is made to be strong and long-lasting, with clean, attractive lines, and is designed for a smooth installation.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      RKLP3301FHUBEPT-630
    • Market price:$1,830.00
      • save 10%
    • Starting price: Price: $1,647.00 per item
    Additional discounts will be applied when added to cart!
    • Glass
      Metal
      Wood
      Door Type: Glass
    • Standard
      ADA
      Thumbturn Type: Standard


    Rockwood LP3301 Full Height with Horizontal Push/Pull Bar, Bolts UP, Bent End combines a dead bolt locking system with a modern post mount door pull. This locking pull is made to be strong and long-lasting, with clean, attractive lines, and is designed for a smooth installation.

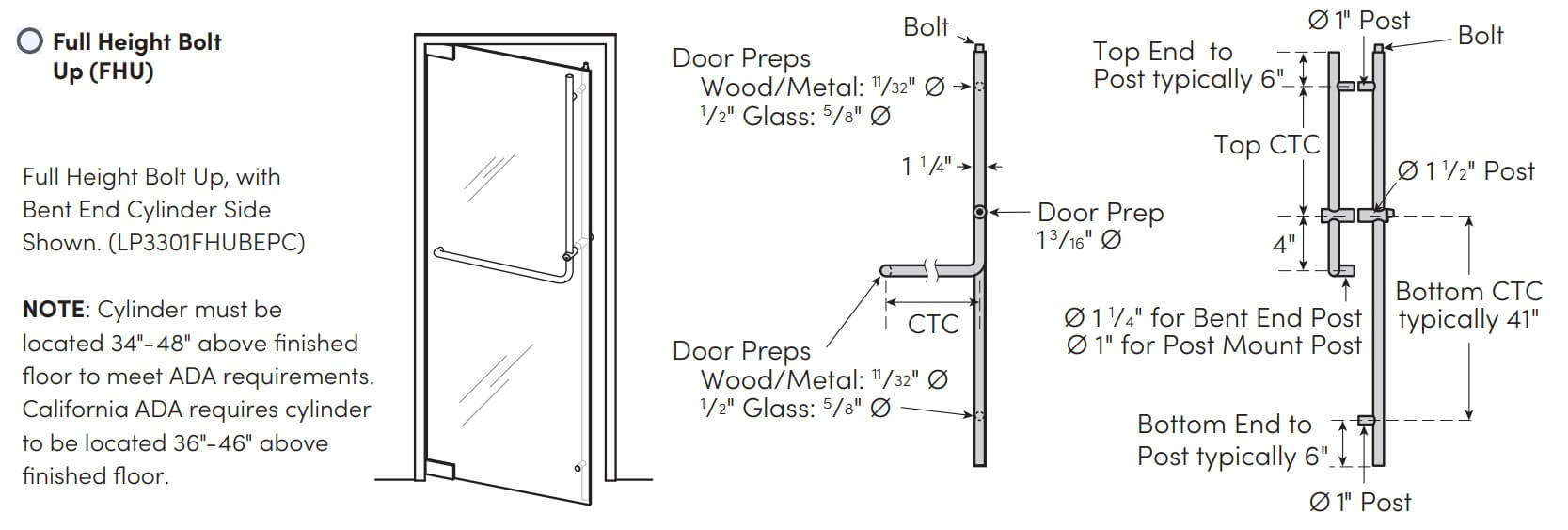

    Features:

    • Key operated from outside; turn piece on inside
    • Door types: 3/8" - 7/8" thick glass, 1-3/8" - 2-1/2" thick aluminum, hollow metal or wood doors
    • Multiple locking options: floor, head or both
    • Bolt location: 2" from face of door to center line of bolt
    • Bolt has 13/16" travel with fine adjustment
    • End Shape: Flat
    • Grip Shape: Round
    • Door Material: Wood, Metal, Hollow Metal, Glass
    • Standard End to Post: 6"

    Benefits:

    • Cylinder and thumbturn location eliminates physical strain when locking and unlocking
    • Glass door applications secure the opening and allow for more natural light
    • Bolt concealed inside pull provides a clean, streamlined look
    • Simple door preparation allows for faster installation
    • Suites with popular Rockwood door pulls, CORBIN RUSSWIN and SARGENT lever handles, McKINNEY hinges, creating a continuum of design
    • Offers flexibility in custom sizes for a variety of applications

    Custom Options:

    • Overall Length: 51.25" up to 75" max
    • Cylinder Type: 05-Customer Sending Cylinder to Factory
    • Horizontal Push/Pull Bar: 36.25" and above
    • Contact our office for these options.


    PRICED PER PIECE

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

    This product has a guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    Click here to check our Rockwood LP3301 Half Height with Horizontal Push/Pull Bar, Bolts UP, Post Mount

      • SKU
        RKLP3301FHUBEPT-630
    • QuickShip
      No
    • Manufacturer
      Rockwood Company
    • Door Type
      Glass, Metal, Wood
    • Top CTC
      10", 10.25", 10.5", 10.75", 11", 11.25", 11.5", 11.75", 12", 12.25", 12.5", 12.75", 13", 13.25", 13.5", 13.75", 14", 14.25", 14.5", 14.75", 15", 15.25", 15.5", 15.75", 16", 16.25", 16.5", 16.75", 17", 17.25", 17.5", 17.75", 18", 18.25", 18.5", 18.75", 19", 19.25", 19.5"
    • Top End to Post
      3", 3.25", 3.5", 3.75", 4", 4.25", 4.5", 4.75", 5", 5.25", 5.5", 5.75", 6"
    • Cylinder Type
      01-Stock ASSA ABLOY Accentra (not available on PC finishes), 02-SFIC Housing (standard), 03-SFIC Housing w/PCC, 07-Dummy Cylinder, 09-7 PIN SFIC HSG w/ASSA ABLOY Accentra Core
    • Thumbturn Type
      Standard, ADA
    • Bolt Location
      Bolts Up
    • Version
      Bent End Thumbturn Side- Mating Side Vertical, Bent End Cylinder Side - Mating Side Vertical
    • Bottom CTC
      10", 10.25", 10.5", 10.75", 11", 11.25", 11.5", 11.75", 12", 12.25", 12.5", 12.75", 13", 13.25", 13.5", 13.75", 14", 14.25", 14.5", 14.75", 15", 15.25", 15.5", 15.75", 16", 16.25", 16.5", 16.75", 17", 17.25", 17.5", 17.75", 18", 18.25", 18.5", 18.75", 19", 19.25", 19.5"
    • Bottom End to Post
      3", 3.25", 3.5", 3.75", 4", 4.25", 4.5", 4.75", 5", 5.25", 5.5", 5.75", 6"
    • Push Bar CTC
      10", 10.25", 10.5", 10.75", 11", 11.25", 11.5", 11.75", 12", 12.25", 12.5", 12.75", 13", 13.25", 13.5", 13.75", 14", 14.25", 14.5", 14.75", 15", 15.25", 15.5", 15.75", 16", 16.25", 16.5", 16.75", 17", 17.25", 17.5", 17.75", 18", 18.25", 18.5", 18.75", 19", 19.25", 19.5", 19.75", 20", 20.25", 20.5", 20.75", 21", 21.25", 21.5", 21.75", 22", 22.25", 22.5", 22.75", 23", 23.25", 23.5", 23.75", 24", 24.25", 24.5", 24.75", 25", 25.25", 25.5", 25.75", 26", 26.25", 26.5", 26.75", 27", 27.25", 27.5", 27.75", 28", 28.25", 28.5", 28.75", 29", 29.25", 29.5", 29.75", 30", 30.25", 30.5", 30.75", 31", 31.25", 31.5", 31.75", 32", 32.25", 32.5", 32.75", 33", 33.25", 33.5", 33.75", 34", 34.25", 34.5", 34.75", 35", 35.25", 35.5", 35.75", 36"
    • Handing
      Left Hand, Left Hand Reversed, Right Hand, Right Hand Reversed
    • Door Thickness
      1/2", 1-3/8", 1-3/4", 2", Other (Add to Order Comments)
    • Dimensions
      • Projection
        2-5/8"
    • Finishes
      • Options
        LP3301FHUBEPT, LP3301FHUBEPC
      • Finish
        Bright Brass (605), Satin Brass (606), Dark Satin Bronze, Equiv (613e), Black Powder Coat (BPC), Black Suede Powder Coat (BSP), Flat Black Powder Coat (FBPC), White Powder Coat (WPC), White Suede Powder Coat (WSP), Red Powder Coat (RPC), Oil Rubbed Bronze (613), Satin Oxidized Bronze (614), Satin Stainless Steel (630), Bright Stainless Steel (629), Translucent Powder Coat (4E), Somerset Pine (SPS), Casselman Pine (CPS), Scarlett Oak (SOS), Tangerine Oak (TOS), Espresso Walnut (EWS), Toasted Walnut (TWS), Auburn Cherry (ACS), Burnt Sienna Cherry (BCS), Maple Cherry (MCS), Sunrise Cherry (SCS), Amber Oak (AOS), Blonde Oak (BOS), White Marble (WMS)
