Rockwood MezzoTek RM2130- RM2140 Straight Pull with GripZone, up to 8FT OA
Rockwood RM2130 - RM2140 MezzoTek Straight pulls appear to float on necked posts yet are made with a unique sturdy construction. Available in 1-1/4" and 1-1/2" diameter and feature a GripZone which hides small marks and scratches on the grip area. These Pulls can be purchased as a single pull or as a push / pull set with back to back mounting. Many variations of size, material and finishes are available, see below for details and options.
PRICED PER PIECE / SET
Rockwood RM2130 -RM2140 MezzoTek Straight Door Pull with GripZone for High End Commercial Applications.
About MezzoTek Line: MezzoTek pulls appear to float on necked posts yet are made with a unique sturdy construction. Available in most architectural finishes in 1-1/4" and 1-1/2" diameter pulls. Full height pulls are available as well. Click here to view our full MezzoTek Architectural Door Hardware Line.
Part # | Diameter | Projection |
RM2130 | 1.25" | 3.00" |
RM2140 | 1.50" | 3.25" |
Mounting Types:
- Single Pull - provided with thru-bolt mount
- Push / Pull Set - provided with back to back concealed mounting
Door Types:
- Wooden Door - 1-3/4" Thick
- Metal Door - 1-3/4" Thick
- Glass Door - 1/2" Thick
- For additional thickness, please add to order comments
Additional Fastener Options (can be purchased through our office):
- Concealed mounting single pulls, Standard and Heavy Duty Types 6, 6R, 8 - See Additional Options
- Y Base Plates are recommended for wooden and glass doors to make a stable and durable mounting - can be purchased through our office.
*A mid post should be purchased for longer lengths
Materials: Polished Brass, Polished Bronze, Polished Stainless Steel, Satin 316 Alloy Stainless Steel
Custom finishes available. For details and pricing please call us at 845-388-1300.
Priced per set / piece
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
The mounting is guaranteed for the lifetime of the building. Click here to view our Full Warranty Policy.
For our MezzoTek Straight Door Pull without GripZone see our Rockwood RM2112 Door Pull.
-
QuickShipNo
-
ManufacturerRockwood Company
-
MPNRM2130, RM2140
-
Product TypeSingle Pull - Thru-Bolt Mounting, Push / Pull Set - BTB Mounting
-
Product Code#RM2130 - 1.25" Diameter, #RM2140 - 1.50" Diameter
-
Door TypeWooden - 1.75" Thick, Metal - 1.75" Thick, Glass - .5" Thick
- Finishes
-
FinishPolished Brass (US3), Polished Bronze (US9), Polished Stainless Steel (US32), 316 Alloy Stainless Steel, Satin
-

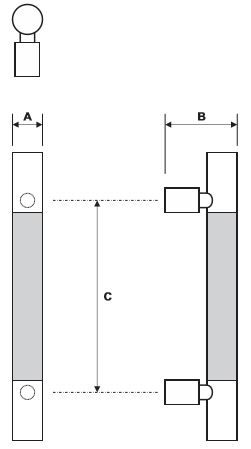

Product # | A | B | C |
#RM2130 | 1.25" | 3.00" | 8”, 10”, 16”, up to 96” |
#RM2140 | 1.50" | 3.25" | 11”, 16”, 20”, up to 96” |
*A mid post should be purchased for longer lengths
Standard Mountings - Select from Options Above |
||
Also available in Heavy Duty Back to Back Mounting: features hex drive for positive tightening and large overall size for superior strength. Recommended for high frequency and rough service openings.
|
||
Optional Mounting Types - Can be purchased through our office |
||
Also available in Heavy Duty Concealed Mounting: features two set screws 180º apart. To view more details on these mounting types, see Mounting Types for Door Pulls. |
