Rockwood NoirTek RM3902 - RM3922 Push Bar - Black Anodized Finish with Contrasting Posts - Flat Ends , up to 36" CTC
Rockwood NoirTek RM3902 - RM3922 Push Bar, Black Anodized Finish with Contrasting Posts, Flat Ends. Available in 3 diameters and up to 36" CTC. This Push Bar can be purshed as a single push bar or as a push / pull set with back to back mounting. Many variations of size, material and finishes are available, see below for details and options.
PRICED PER PIECE / SET

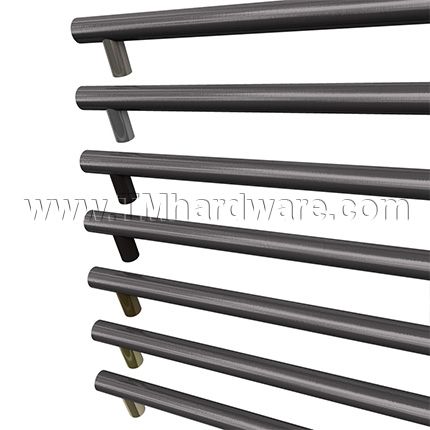

Rockwood RM3902 -RM3922 NoirTek Push Bar, Black Anodized Finish with Contrasting Posts and Flat Ends for High End Commercial Applications.
About NoirTek Line: The Rockwood NoirTek push bars will stand out on light colored entrances for a quick identity and unrivaled statement. Durable black hard coat anodized grips will compliment many design schemes and are an appealing finish on their own. Choose from an array of contrasting finishes for the mounting posts. Available in 3 diameters and up to 36" CTC. Click here to view our full NoirTek Architectural Door Hardware Line.
Part # | Diameter | Projection | CTC |
RM3902 | 1.00" | 2.75" | up to 36" |
RM3912 | 1.25" | 3.00" | up to 36" |
RM3922 | 1.50" | 3.25" | up to 36" |
Don't know what length push bar you need? Click here to view How to Size a Push Bar.
Mounting Types:
- Single Push Bar- provided with thru-bolt mount
- Push / Pull Set - provided with back to back concealed mounting
Door Types:
- Wooden Door - 1-3/4" Thick
- Metal Door - 1-3/4" Thick
- Glass Door - 1/2" Thick
- For additional thickness, please add to order comments
Additional Fastener Options (can be purchased through our office):
- Concealed mounting single pulls, Standard and Heavy Duty Types 6, 6R, 8 - See Additional Options
- Y Base Plates are recommended for wooden and glass doors to make a stable and durable mounting - can be purchased through our office.
Priced per set / piece
Available Finishes: See options above, see Rockwood Finishes Chart for a detailed list of all Rockwood finishes.
Custom finishes available. For details and pricing please call us at 845-388-1300.

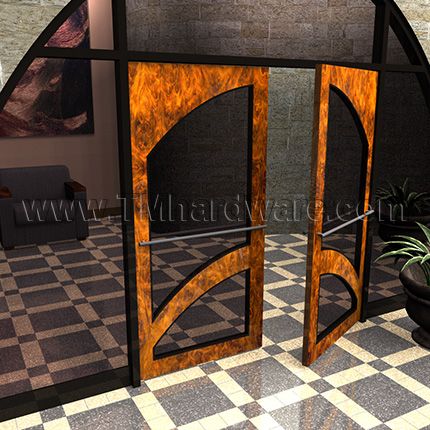

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
The mounting is guaranteed for the lifetime of the building. Click here to view our Full Warranty Policy.
For our Rockwood NiorTek Offset Pull with a Black Anodized Grip Zone - Round Ends see our Rockwood RM3934 Door Pull.
-
QuickShipNo
-
ManufacturerRockwood Company
-
MPNRM3902, RM3912, RM3922
-
Product TypeSingle Push Bar - Thru-Bolt Mount, Push / Pull Set - BTB Mounting
-
Product Code#RM3902 - 1" Dia., #RM3912 - 1.25" Dia., #RM3922 - 1.5" Dia.
-
Post FinishesPolished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Dark Oxidized Satin Bronze (US10B), Dk. Oxidized Satin Brnz, Equ. (10BE), Clear Anodized Aluminum (US28), Polished Stainless Steel (US32), Satin Stainless Steel (US32D), Dark Bronze Anodized Alum. (313), Black Anodized Aluminum (315)
-
Door TypeWooden - 1.75" Thick, Metal - 1.75" Thick, Glass - .5" Thick
Standard Mountings - Select from Options Above | ||
Also available in Heavy Duty Back to Back Mounting: features hex drive for positive tightening and large overall size for superior strength. Recommended for high frequency and rough service openings.
| ||
Optional Mounting Types - Can be purchased through our office | ||
Also available in Heavy Duty Concealed Mounting: features two set screws 180º apart. To view more details on these mounting types, see Mounting Types for Door Pulls. |
All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard:
- Polished Brass-US3/605
- Satin Brass-US4/606
- Satin Bronze-US10/612
- Satin Oil Rubbed Bronze-US10B/613
- Dark Oxidized Satin Bronze, Equivalent-US10BE/613E
- Clear Anodized Aluminum-US28/628
- Dark Bronze Anodized Aluminum-313/710
- Black Anodized Aluminum-315/711
- Polished Stainless Steel-US32/629
- Satin Stainless Steel-US32D/630
