Rockwood RM3040-RM3060 Neometrix Offset Door Pull with Grip Zone

Rockwood RM3040-RM3060 Neometrix Offset Door Pull with Grip Zone
Rockwood Company

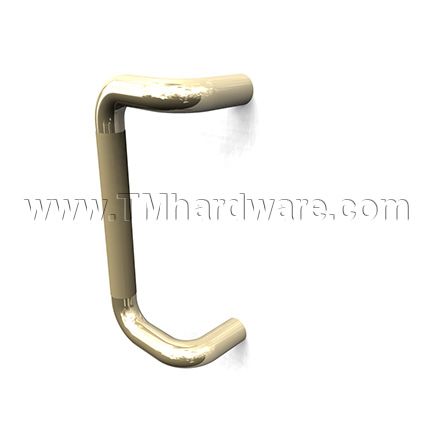

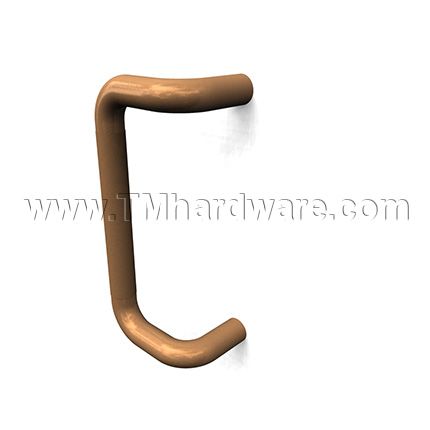

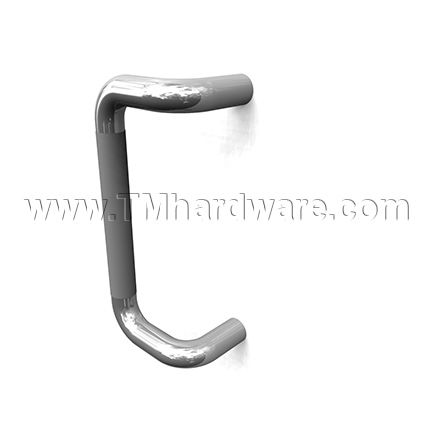

Rockwood Neometrix RM3040 - RM3060 Offset Door Pull features a Grip Zone which hides small marks and scratches on the grip area, great for high frequency usage commercial applications. This Pull is available as a single pull or as a push / pull set with back to back mounting. Many variations of size, material and finishes are available, see below for details and options.

PRICED PER PIECE / SET

*Note: Back to Back screw packs options are sold as a SET and will double the price and quantity. Quantity 1 = 2 Pulls.

See tabs below for additional information
    • SKU
      RKRM3040-12-US3
    • Market price:$513.00
      • save 5%
    • Starting price: Price: $487.35 per item

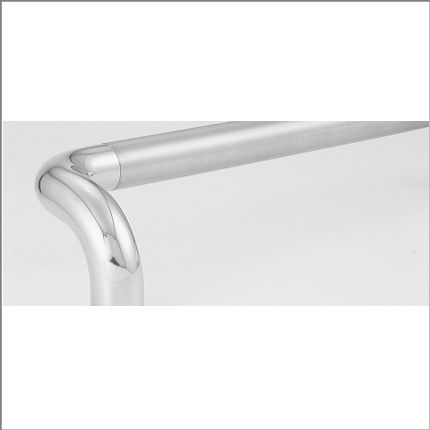

    About Neometrix Line: The NeoMetrix line features GripZone — a satin finished grip area contrasting to the bright mirror finish at the ends. Not only visually appealing, this winning design is practical as well. The satin finish contact area hides small marks and scratches caused by rings, jewelry, and keys. On push bars, the GripZone identifies which side of the door swings open. Click here to view the full NeoMetrix Architectural Door Hardware Line.

     Product #
     Diameter
     CTC
     Projection
     RM3040
     1"
     12", 18", 36"
     3-1/2"
     RM3050
     1-1/4"
     12", 24", 36"
     3"
     RM3060
     1-1/2"
     12", 24", 36"
     3-1/2"

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
     The mounting is guaranteed for the lifetime of the building. Click here to view our Full Warranty Policy.

    For a Straight Architectural Pull see our Rockwood 3010 Neometrix Straight Door Pull.

      • SKU
        RKRM3040-12-US3
    • QuickShip
      No
    • Manufacturer
      Rockwood Company
    • MPN
      RM3040, RM3050, RM3060
    • Product Code
      #RM3040 - 1"Dia., #RM3050 - 1.25"Dia., #RM3060 - 1.5"Dia.
    • CTC (Inches)
      12" CTC, 24" CTC, 36" CTC
    • About this Product
      • Mount Design
        Offset Mount
      • Collection
        Neo Metrix Collection
      • Style
        Modern
      • Base Material
        Brass, Bronze, Stainless Steel
    • Dimensions
      • Diameter
        1" Diameter, 1.25" Diameter, 1.5" Diameter
      • Length
        Up to 36" Length
      • Dimension
        Projection:
        3040 - 3-1/2"
        3050 - 3"
        3060 - 3-1/2"
    • Installation
      • Screw Pack
        #1: Thru-Bolt (Wood or Metal Door), Single Pull, Decor Thru-Bolt (Glass Door), Single Pull, Surface Concealed (Metal Door), Single Pull, Back to Back (Wood or Metal Door), Pull Set*, Back to Back (Glass Door), Pull Set*, Decor Thru-Bolt (Wd or Mtl Door), Single Pull, Concealed (Wood Door), Single Pull
      • Door Thickness
        .5" Thick Door, 1.75" Thick Door, 2" Thick Door, Other (Add to Order Comments)
    • Special Features
      • Grip Zone
        Yes
    • Finishes
      • Finish
        Polished Brass (US3), Polished Bronze (US9), Polished Stainless Steel (US32), 316 Alloy Stainless Steel, Polished
    • Compliance Details
      • Warranty
        Door Handle: 1 Year Limited Warranty, Mounting: Lifetime Limited Warranty

    Click to Print

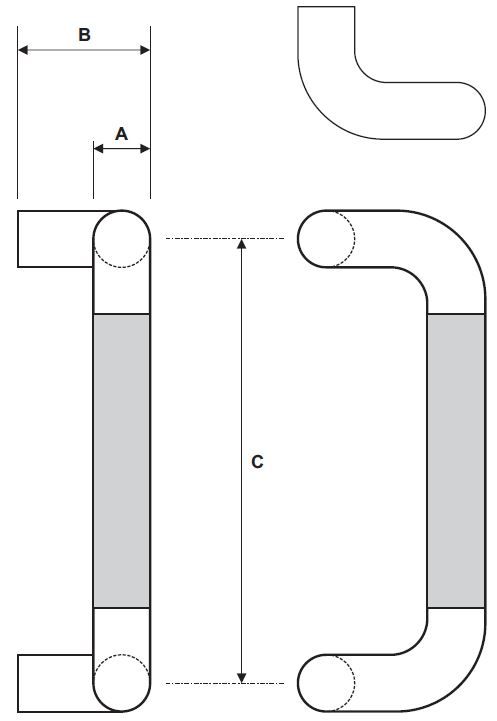

    Rockwood RM 3040 Door Pull Product Specs

     Product #  A  B  C
     RM3040  1"  3.50"  12", 18"
     RM3050  1-1/4"  3.00"  12", 18", 24"
     RM3060  1-1/2"  3.50"  12", 18", 24"

     Standard Mountings - Select from Options Above
    *Includes standard strength mount. For Heavy Duty Mounting, please purchase through our office

    Also available in Heavy Duty Back to Back Mounting: features hex drive for positive tightening and large overall size for superior strength. Recommended for high frequency and rough service openings.



     Optional Mounting Types - Can be purchased through our office

    Also available in Heavy Duty Concealed Mounting: features two set screws 180º apart.

    To view more details on these mounting types, see Mounting Types for Door Pulls.
