Rockwood Tubular RM201 - RM204 90° Offset Pull - 1.25" Diameter, up to 36" CTC

Rockwood Tubular RM201 - RM204 90° Offset Pull - 1.25" Diameter, up to 36" CTC

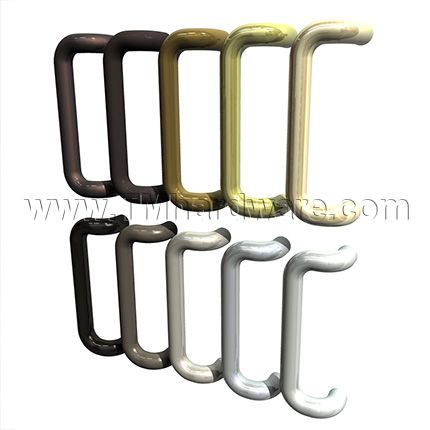

Rockwood RM201 Rockwood RM201 313 Rockwood RM201 313 Applied on Door Rockwood RM201 US3 Rockwood RM201 US4 Applied on Door Rockwood RM201 US28 Rockwood RM201 US32 Applied on Door Rockwood Finishes
0.0

Rockwood Tubular RM201 - RM204, 90° Offset Pull with a 1.25" Diameter. This Pull can be purchased as a single pull or as a push / pull set with back to back mounting. Many variations of size and material are available, see below for details and options.

PRICED PER PIECE / SET

Market price: $157.00
save 10%
Price: $141.30
Product Type
Product Code
Finishes
Door Type
Qty
Save to wishlist
Made in USA
SKU RRM201_12_US28
Shipping See Shipping Tab Below
Description

Rockwood RM201 -RM204 Tubular 90° Offset Door Pull for High End Commercial Applications.

About Tubular Line: Our 1-1⁄4" diameter tubular pulls are made from rugged 16 gauge wall tubing with solid brass end inserts. These large diameter pulls provide a greater door contact area (60% larger mounting area) than 1" pulls, which ensures that our guaranteed fastening system will provide a tight permanent installation. Click here to view our full Tubular Architectural Door Hardware Line.

 Part #  Diameter   Projection  CTC
 RM201  1.25"  3.00"  12"
 RM202  1.25"  3.00"  18"
 RM203  1.25"  3.00"  24"
 RM204  1.25  3.00"  36"

Available Finishes: See options above, see Rockwood Finishes Chart for a detailed list of all Rockwood finishes.

Mounting Types:

  • Single Pull - provided with thru-bolt mount
  • Push / Pull Set - provided with back to back concealed mounting

Door Types:

  • Wooden Door - 1-3/4" Thick
  • Metal Door - 1-3/4" Thick
  • Glass Door - 1/2" Thick
  • For additional thickness, please add to order comments

Additional Fastener Options (can be purchased through our office):

  • Concealed mounting single pulls, Standard and Heavy Duty Types 6, 6R, 8 - See  Additional Options
  • Y Base Plates are recommended for wooden and glass doors to make a stable and durable mounting - can be purchased through our office.

Priced per set / piece

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 1 year guarantee against defects in material and workmanship.
The mounting is guaranteed for the lifetime of the building.
Click here to view our Full Warranty Policy.

For our Rockwood AccenTek-Formed Thick Flat Pull see our Rockwood RM4820 Door Pull.

Product Specs
Options



 Standard Mountings - Select from Options Above
*Provided with Heavy Duty Mounting

Also available in Heavy Duty Back to Back Mounting: features hex drive for positive tightening and large overall size for superior strength. Recommended for high frequency and rough service openings.



 Optional Mounting Types - Can be purchased through our office

Also available in Heavy Duty Concealed Mounting: features two set screws 180º apart.

To view more details on these mounting types, see Mounting Types for Door Pulls.



Compliance Details

All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard:

  • Polished Brass-US3/605
  • Satin Brass-US4/606
  • Satin Bronze-US10/612
  • Satin Oil Rubbed Bronze-US10B/613
  • Dark Oxidized Satin Bronze, Equivalent-US10BE/613E
  • Clear Anodized Aluminum-US28/628
  • Dark Bronze Anodized Aluminum-313/710
  • Black Anodized Aluminum-315/711
  • Polished Stainless Steel-US32/629
  • Polished 316 Alloy Stainless Steel-US32316
  • Satin Stainless Steel-US32D/630
  • Satin 316 Alloy Stainless Steel-US32D316
