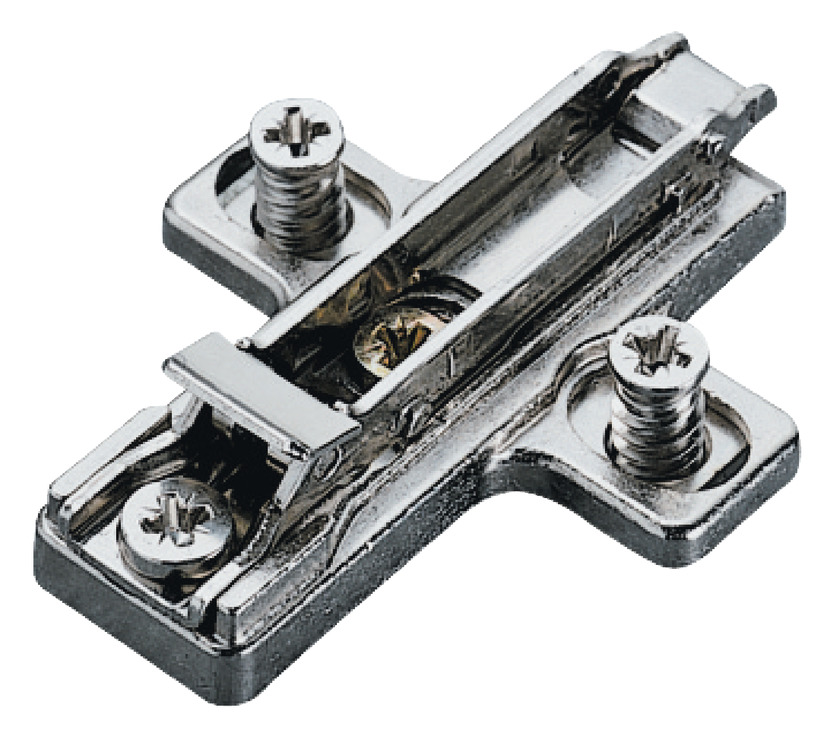

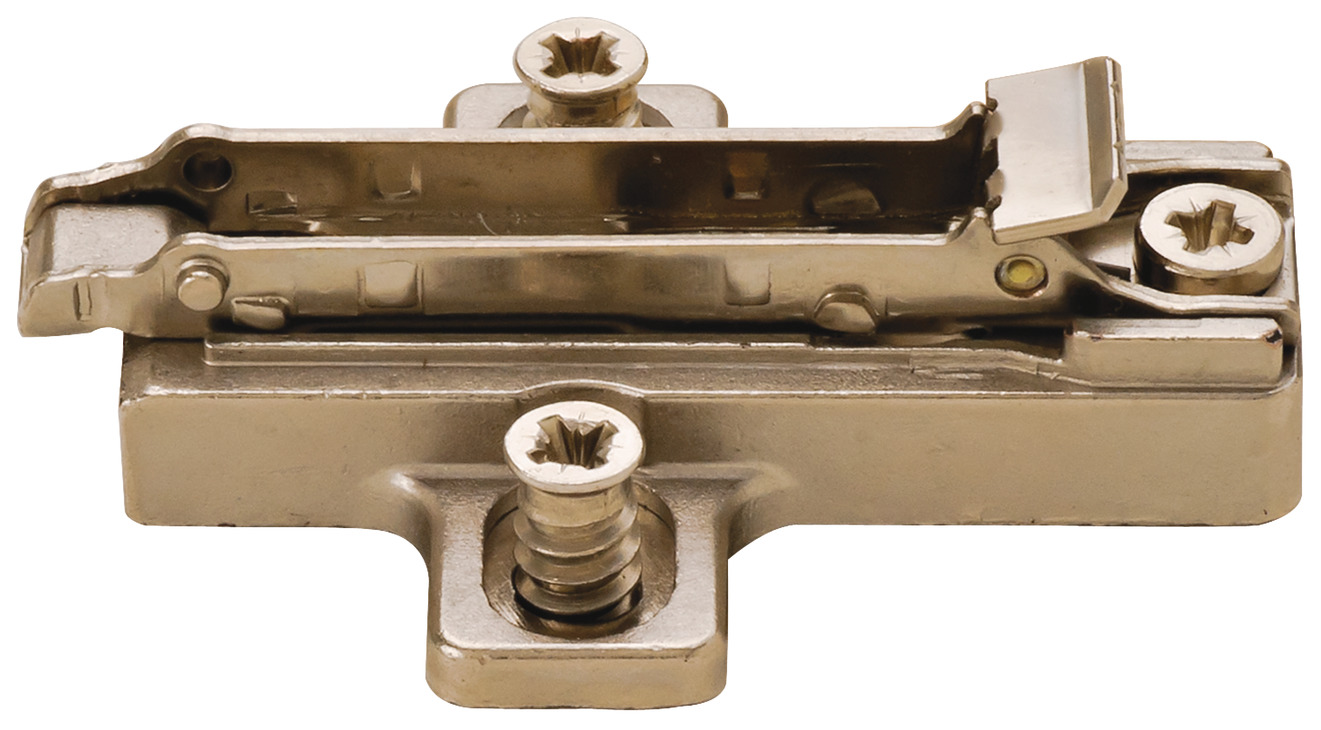

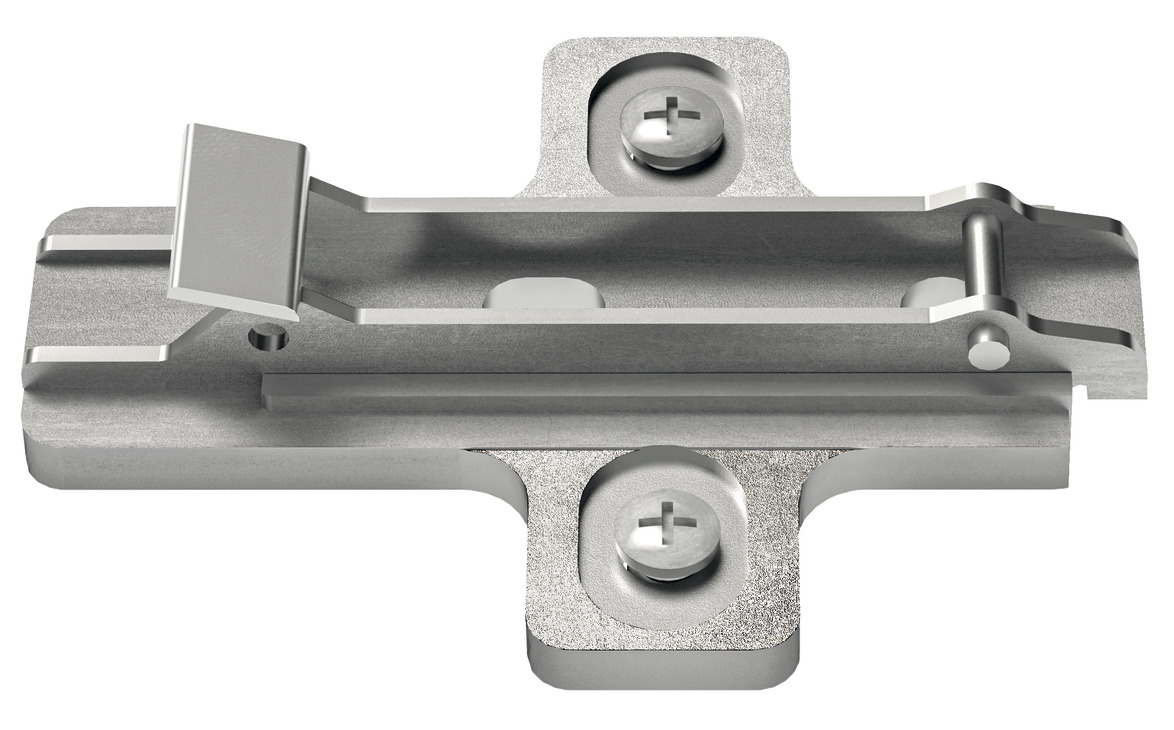

Salice Concealed Hinge, Mounting Plate, 7.5mm Euro screws, 3mm Height

Salice Concealed Hinge, Mounting Plate, 7.5mm Euro screws, 3mm Height
Hafele

For small or light door cabinet hardware, BARGR39/20 Clip Mounting Plate for Concealed Hinge from Salice is the best choice. This kitchen cabinet hardware is made from zinc, and because it is built with quality in mind, it exceeds ANSI/BHMA standards A156.9 2010. In addition, these Salice kitchen cabinet hinges are impervious to extreme temperatures.

SOLD PER PIECE

Minimum purchase quantity: 7 units
See tabs below for additional information
    • SKU
      HF-329.71.533
    • Market price:$1.84
      • save 20%
    • Starting price: Price: $1.47 per item


    For small or light door cabinet hardware, BARGR39/20 Clip Mounting Plate for Concealed Hinge from Salice is the best choice. This kitchen cabinet hardware is made from zinc, and because it is built with quality in mind, it exceeds ANSI/BHMA standards A156.9 2010. In addition, these Salice kitchen cabinet hinges are impervious to extreme temperatures.

    SOLD PER PIECE

    Features :

    • Screw mounted in system holes
    • Spring lever
    • With independent vertical and depth adjustment with cam
    • For center/common panels
    • Comes with pre-installed 7.5 mm (5/16") euro screws
    • Material: Steel/Zinc

    Dimension:

    • Height: 3 mm
    • Drill Hole Diameter: 5 mm
    • Center Panel Thickness: 16 mm
    • Screw distance: 32 mm
    • Edge distance: 37 mm
    • Adjustment facility: Height adjustment Via eccentric ±2 mm, Depth adjustment Via eccentric -0.5 mm to +2.8 mm

    Note: Require 3rd screw #7 x 16 mm (5/8)

    SOLD PER PIECE

    This product has a lifetime limited warranty against defects in material and workmanship
    Click to view our     Full Warranty Policy.

    Click here to view Salice Concealed Hinge, Mounting Plate, 7.5mm Euro screws, 0mm Height

      • SKU
        HF-329.71.533
    • QuickShip
      No
    • Manufacturer
      Hafele
    • MPN
      329.71.533
    • Finishes
      • Finish
        Nickel Plated
    • Compliance Details
      • Warranty
        Lifetime Limited Warranty
