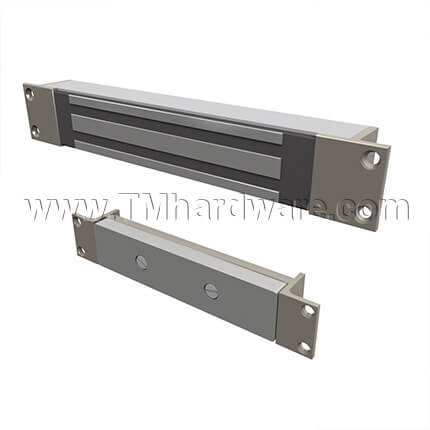

Securitron SAM Shear Aligning Magnalock, Electronic Lock

This concealed Magnalock solves the most difficult door control scenarios with its versatile mounting choices, making it perfect for traffic control or medium security. A sliding, in-swing, out-swing, or swing-through door can have the Securitron SAM Shear Aligning Magnalock mounted on it. Alternatively, it can be installed on each leaf of a pair of doors. Either at the header, door edge, or threshold, it can be entirely hidden when mounted into wood, steel, aluminum, or locking.

Features:

• Efficient, low-power usage
• Automatic dual-voltage (VDC) —no field adjustment required
• Fully sealed for weatherproof operations
• Rust resistant—all ferrous metal surfaces plated for durability
• Instant release circuit— no residual magnetism
• Noise suppression with included MOV
• Recessed for aesthetically appealing finish
• 10 ft [3.05m] of jacketed, stranded conductor cable
• Direct mount in door frame for strength and reliability

Optional Features:

• Door Position Switch DPS (D) - provides a signal to an access control system indicating whether the door is open or closed
• BondSTAT (B) - detects an armature plate and notifies access control and/or alarm systems that a door is properly secured

Specifications:

• Holding Force: 1,200 lbs [544kg]
• Operating Temperature:  -40 to +140F [-40 to +60C], Indoor or Outdoor use
• Electrical:
  • 320 mA at 12 VDC
  • 170 mA at 24 VDC

Certifications:

• UL 10C Listed
• CAN4-S104, CAN/ ULC-S533 Listed
• ANSI/UL 294 Listed
• ANSI/BHMA A156.23, Grade 2; E08561-1000, E08571-1000, E08581-1000, E08591-1000
• CSFM—California State Fire Marshal Approved
• CE:EN 50081-1(92), EN 61000- 6-2(99) Approved

PRICED PER UNIT

This product has a lifetime limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.
