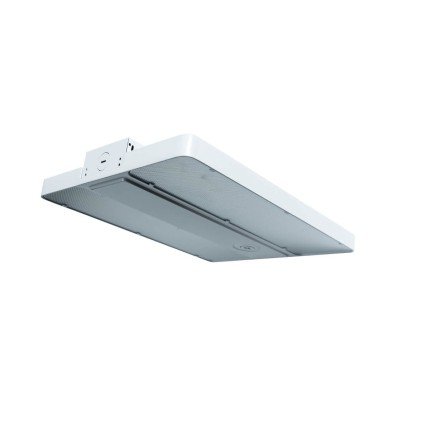

Topaz Industrial LED Linear High Bay 100W, Power and CCT Selectable

Topaz Industrial LED Linear High Bay 100W, Power and CCT Selectable
Topaz

For high bay applications in commercial, industrial, warehouse, and manufacturing settings, Topaz Industrial LED Linear High Bay with Power and CCT selectable is a reliable choice. The high-efficiency lens provides an extensive, consistent beam dispersion. These luminaires offer an operational life of more than 50,000 hours and a superior energy and money-saving replacement for fluorescent or up to 200W equivalent HID high bay lighting.

PRICED PER UNIT

See tabs below for additional information
    • SKU
      TPLHB-15L-W-PCS-U
    • Market price:$112.95
      • save 10%
    • Starting price: Price: $101.75 per item


    For high bay applications in commercial, industrial, warehouse, and manufacturing settings, Topaz Industrial LED Linear High Bay with Power and CCT selectable is a reliable choice. The high-efficiency lens provides an extensive, consistent beam dispersion. These luminaires offer an operational life of more than 50,000 hours and a superior energy and money-saving replacement for fluorescent or up to 200W equivalent HID high bay lighting.

    Click to view the Full Topaz LED Lamps and Luminaries Catalog 2022.

    Key Features:

    • 1/2" KO for controls or wiring
    • Power & CCT field selectable switch to adjust between 3 wattages and 2 color temperature at installation (select models)
    • Die-cast aluminum body with center driver housing for durability and thermal control
    • Diffused lens provides minimal glare and visual comfort
    • Sensor ready: integrated socket allows for use of low-voltage lighting controls

    CONTROLS:

    • Low voltage sensor receptacle for sensor install
    • Plug and play low voltage PIR sensor and remote control accessory available
    • Line voltage PIR sensor accessory available for use with 120-277V
    • 0-10V dimming standard on all fixtures

    Ratings:

    • cULus listed for damp location
    • FCC part 15
    • -40°F to 131°F ambient operating temperatures


    PRICED PER UNIT

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 5-year limited guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    For higher wattage option, see our Topaz Industrial LED Linear High Bay 300W, 4000K CCT

      • SKU
        TPLHB-15L-W-PCS-U
    • QuickShip
      No
    • Manufacturer
      Topaz
    • MPN
      LHB-15L-W-PCS-U
    • General Specification
      • Input Voltage
        120-277V
      • Power Factor / THD%
        ≥0.9, THD% ≤20%
      • Lumens Per Watt
        Up to 156 LPW
      • Dimmable
        to 10% on select dimmers
      • Functional Life (L70)
        50,000 Hours
      • Location Rating
        Damp
      • Ambient Operating Temperature
        -40°F to 131°F
    • Item Specification
      • Lighting Type
        High Bay - Linear
      • Trim Color
        White Trim
      • Lumens
        up to 15,600 Lumens
      • Watts
        60W / 80W / 100W
      • CCT - Color Temperature
        3000K/3500K/4000K/5000K
      • Beam Angle
        Wide
      • Input Amps
        1.0/0.44A
    • Compliance Details
      • Warranty
        15 Year Limited Warranty
