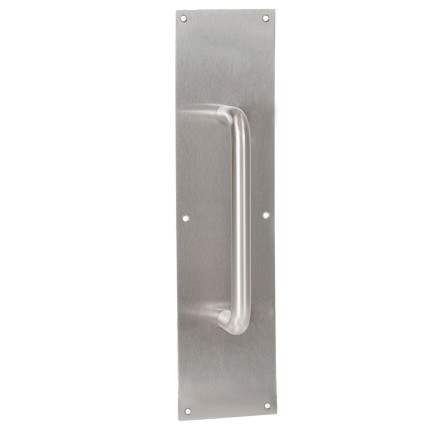

Trimco 3/4" Dia. Round Heavy Duty Pull Plate, 6", 8” and 10" CTC

Trimco 3/4" Dia. Round Heavy Duty Pull Plate, 6", 8” and 10" CTC
Trimco

The Trimco 1017 Series Half-Round Pull Plates integrate a 1194 Series Grip with a 1001 Series Plate. These ADA-compliant pull plates are matched with a cast 6″, 8″ or 10″ CTC  conventional pull and come in standard plate sizes of 3-1/2″x15″ and 4″x16″ . Available in a variety of finishes.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      TC1017-2-605
    • Market price:$150.69
      • save 15%
    • Starting price: Price: $128.09 per item
    • 3-1/2" x 15"
      4" x 16"
      Plate Size: 3-1/2" x 15"
    • 6"
      8"
      10"
      Pull Center to Center: 6"


    The Trimco 1017 Series Half-Round Pull Plates integrate a 1194 Series Grip with a 1001 Series Plate. These ADA-compliant pull plates are matched with a cast 6″, 8″ or 10″ CTC  conventional pull and come in standard plate sizes of 3-1/2″x15″ and 4″x16″ . Available in a variety of finishes.

    Features:

    • Combines 1001 Series Plate with an 1194 Series Grip.
    • Plates are made of heavy duty .050" stainless steel, brass or bronze and are pencil beveled on all four sides.

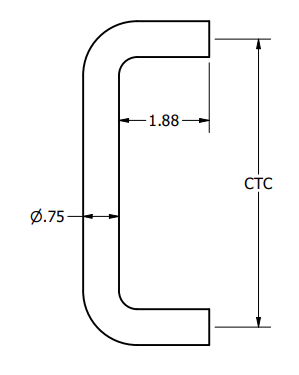

    • ADA compliant ¾" dia. straight pull with either 6", 8" or 10" CTC.

    Applications:

    • Commercial & Industrial Buildings
    • Government & Military Facilities
    • Hospitality
    • Multifamily & Mixed-Use
    • Retail & Strip Malls

    Certifications:

    • BHMA J405
    • ANSI A117.1 Accessibility Code (ADA Compliant)

    PRICED PER PIECE

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

    This product has a lifetime-limited guarantee against defects in workmanship and materials.

    Click here to view our Full Warranty Policy.

    For similar similar items with size , you can check our Trimco Bar Style Heavy Duty Pull Plate, 6" and 8” CTC

      • SKU
        TC1017-2-605
    • Series
      1017 Series Pull Plate
    • QuickShip
      No
    • Manufacturer
      Trimco
    • MPN
      1017
    • Dimensions
      • Plate Size
        3-1/2" x 15", 4" x 16"
      • Thickness
        .050"
      • Pull Center to Center
        6", 8", 10"
    • Finishes
      • Finish
        Bright Brass (605), Satin Brass (606), Oil Rubbed Bronze (613), Dark Satin Bronze, Equiv (613e), Satin Black Coated (622), Satin Chrome Plated (626), Satin Aluminum, Clear Anodized (628), Bright Stainless Steel (629), Satin Stainless Steel (630), Healthy Hardware - Steralloy (Silver Color) (710)
    • Compliance Details
      • Compliance Details
        BHMA J405
      • ANSI Designation
        ANSI A117.1 Accessibility Code (ADA Compliant)
      • Warranty
        Lifetime Limited Warranty
