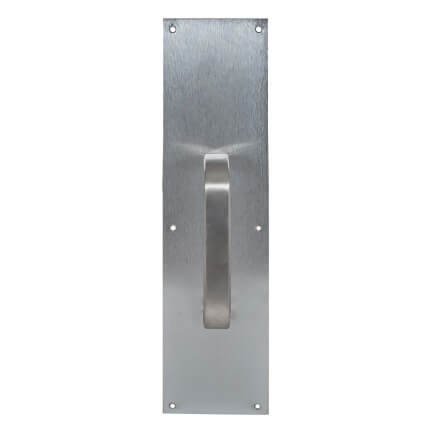

Trimco 3/4 Round Heavy Duty Pull Plate, 5-1/2" and 8” CTC

Trimco ¾ Round Heavy Duty Pull Plate, 5-1/2" and 8” CTC
Trimco

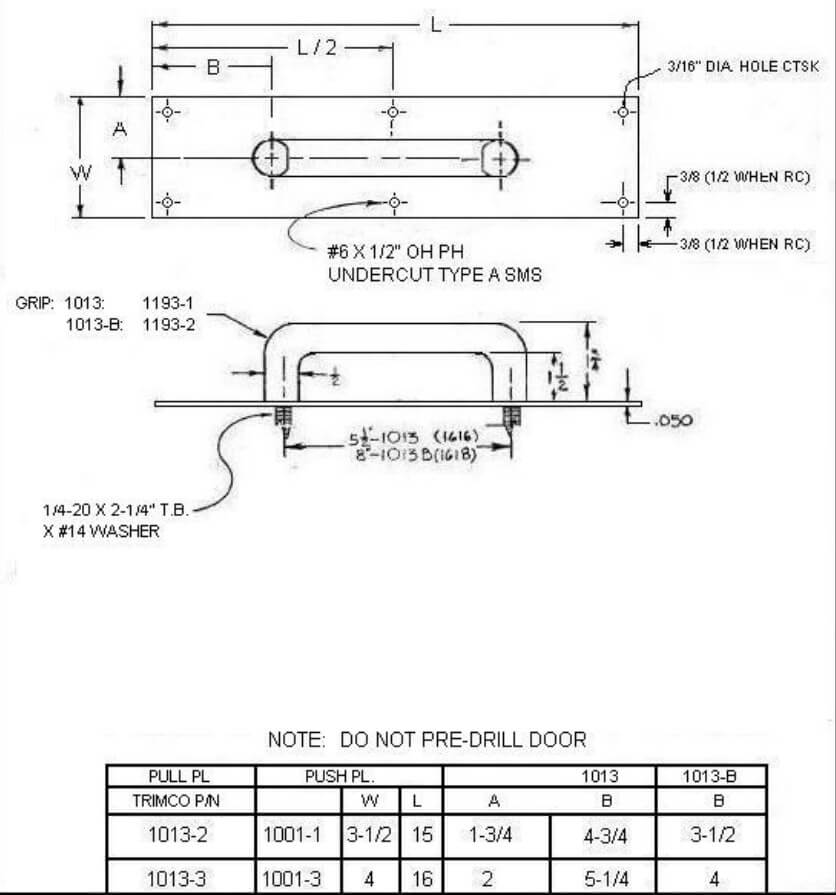

The Trimco 1013 Series 3/4 Round Pull Plates integrate a 1193 Series Grip with a 1001 Series Plate. These ADA-compliant pull plates are matched with a cast 5-1/2″ or 8″ CTC conventional pull and come in standard plate sizes of 3-1/2″x15″ and 4″x16″ . Available in a variety of finishes.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      TC1013-2-613
    • Market price:$179.95
      • save 15%
    • Starting price: Price: $152.96 per item
    • 3-1/2" x 15"
      4" x 16"
      Plate Size: 3-1/2" x 15"
    • 5-1/2"
      8"
      Pull Center to Center: 5-1/2"


    The Trimco 1013 Series 3/4 Round Pull Plates integrate a 1193 Series Grip with a 1001 Series Plate. These ADA-compliant pull plates are matched with a cast 5-1/2″ or 8″ CTC conventional pull and come in standard plate sizes of 3-1/2″x15″ and 4″x16″ . Available in a variety of finishes.

    Features:

    • Combines 1001 Series Plate with an 1117 Series Grip.
    • Plates are made of heavy duty .050" stainless steel, brass or bronze and are pencil beveled on all four sides.
    • ADA compliant cast 5" CTC traditional pull.

    Applications:

    • Commercial & Industrial Buildings
    • Multifamily & Mixed-Use
    • Retail & Strip Malls
    • Government & Military Facilities
    • Public Buildings & Facilities

    Certifications:

    • BHMA J405
    • ANSI A117.1 Accessibility Code (ADA Compliant)

    PRICED PER PIECE

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

    This product has a lifetime-limited guarantee against defects in workmanship and materials.

    Click here to view our Full Warranty Policy.

    For similar similar items with size , you can check our Trimco Cast Tapered Heavy Duty Pull Plate, 5-1/2" CTC

      • SKU
        TC1013-2-613
    • Series
      1013 Series Pull Plate
    • QuickShip
      No
    • Manufacturer
      Trimco
    • MPN
      1013
    • Dimensions
      • Plate Size
        3-1/2" x 15", 4" x 16"
      • Thickness
        .050"
      • Pull Center to Center
        5-1/2", 8"
    • Finishes
      • Finish
        Oil Rubbed Bronze (613), Dark Satin Bronze, Equiv (613e), Satin Black Coated (622), Satin Chrome Plated (626), Bright Stainless Steel (629), Satin Stainless Steel (630)
    • Compliance Details
      • Compliance Details
        BHMA J405
      • ANSI Designation
        ANSI A117.1 Accessibility Code (ADA Compliant)
      • Warranty
        Lifetime Limited Warranty
