Pemko #BKT050, BKT075, BKT1532 Z-Brackets for Mounting Additional Hardware

This Z-Mounting Bracket enables soffit-mounted perimeter gaskets and parallel arm door closers or strike plates to be used in the same opening. Brackets have a 6" length and are available in various offset dimensions, see below. Made of steel with Zinc or Powder Coat.

PRICED PER PIECE - See tabs below for additional specs and details

See tabs below for additional information

Quantity

Add to compare

Z Brackets features:

The door closer/strike plate mounting Z-brackets enable soffit-mounted perimeter gaskets and parallel arm door closers or strike plates to be used in the same opening.

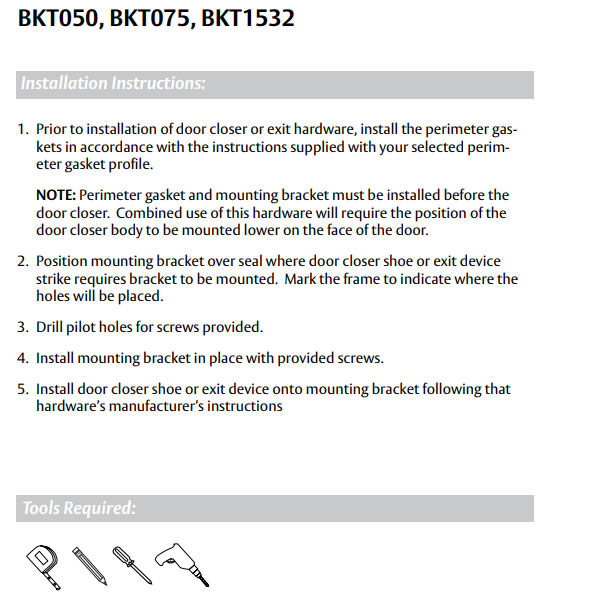

When mounted separately, door closers and soffit-mounted perimeter gaskets occupy the same space on a frame's header. Z-brackets make this installation easy. Simply install the perimeter gasket in its desired position, attached a bracket over it, then mount the door closer arm bracket to the Z-bracket.

Strike plates can also be mounted to these Z-brackets. This eliminates the need to cut or shorten the perimeter gasket around the strike plate and allows for a continuous seal along the jambs.

Thick steel construction ensures reliability in the opening.

Included in UL File with Perimeter Gaskets-good for use on Fire Rated openings

Mount the door closer bracket or strike plate directly to the Z-bracket which eliminates the need to cut perimeter gaskets to fit additional frame hardware

Material: Guage Steel

Finishes: Zinc Coated Steel (SP), Gray Powder Coated Steel (G). Additional custom powder coat finishes are available through our office.

Fasteners: Wood and tek screws included.

Length: 6"

Fire Rated: May be used in conjunction with a Category J gasket.

Part Number	Offset Dimension	Gauge
BKT050	1/2"	11
BKT075	3/4"	7
BKT1532	1-1/8"	7

Priced Per Piece.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

This product has a 3 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.

See other versions of our Head and Jamb Mounting Brackets.

- SKU
  PKBKT050-SP
QuickShip
No
Manufacturer
Pemko Manufacturing
MPN
BKT050, BKT075, BKT1532
Offset Dimension
1/2" Offset (BKT050), 3/4" Offset (BKT075), 1-1/8" Offset (BKT1532)
Finishes
- Finish
  Zinc Plated
