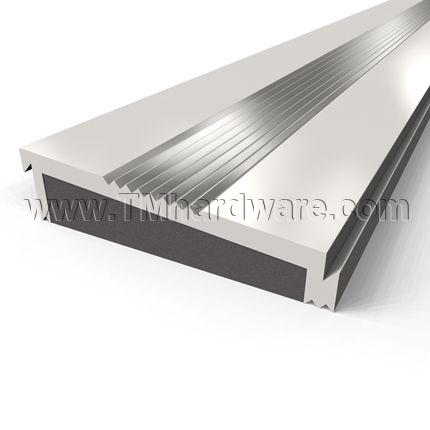

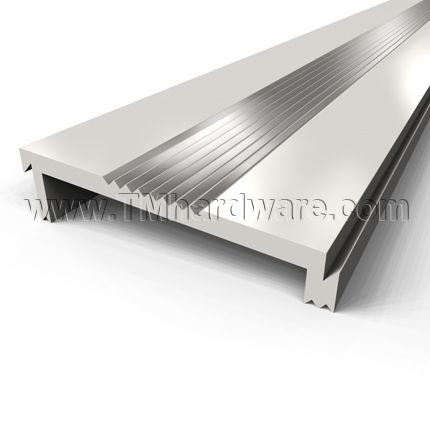

Zero #233 .5" to .75" Height Aluminum Ramp Bridge, 3" Length

This Zero #233 heavy duty aluminum ramp bridge has interlocking components which eliminates the need to weld joints. It can accommodate changes in floor conditions from .75" to .5". Can be combined with other products to create an ADA compliant ramp. Available with various options and is custom cut to size.

PRICED PER FOOT

This ramp bridge should be used in conjunction with a Ramp End from our Ramp Systems. See How to Choose a Ramp System for help in combining your Ramp System.

See tabs below for additional information

Finish
Length
Add Photoluminescent

Quantity

Add to compare

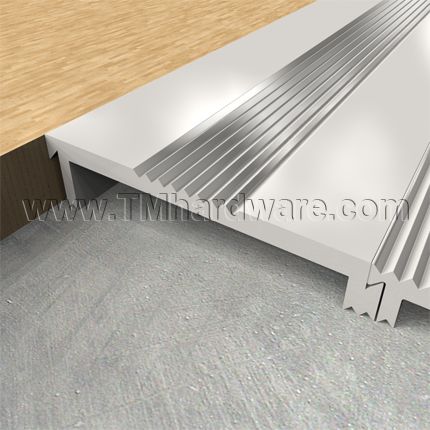

This 3" heavy duty has interlocking components which eliminate the need to weld joints together. This commercial grade ramp is crafted from high quality .187" thick aluminum which will not buckle from overuse. It can accommodate changed in floor conditions from .75" to .5" and can be combined with other products to create an ADA compliant ramp. The ramp bridge photoluminescent inserts (see below). It comes in aluminum mill finish and is custom cut to size.

Installation screws provided. Note, Drilling for threshold is not supplied unless specified and template is provided. Please contact us or call at 845-388-1300 to supply template.

If ramp is being drilled directly into concrete, Expansion Anchors are recommended.

This Ramp Bridge should be used in conjunction with other parts of our Ramp System, see How to Choose a Ramp System. This product (Z233) is compatible with the following Ramp Ends:

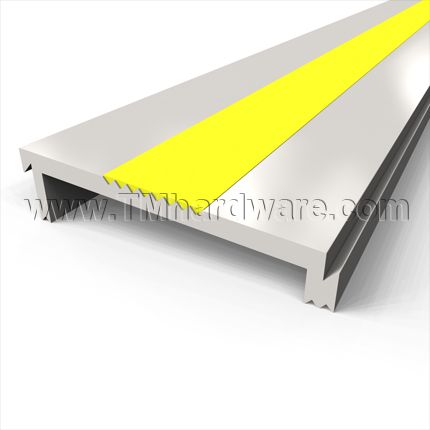

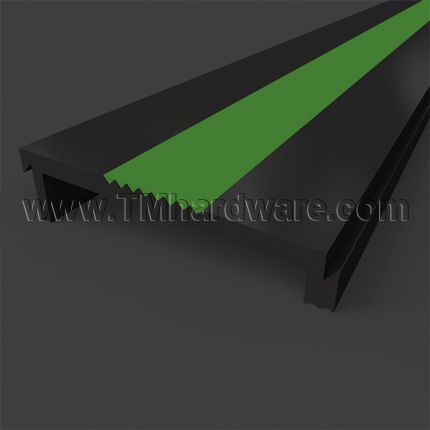

Photoluminescent: Facilitates safe emergency exists when power systems have failed. The photoluminescent material is charged by exposure to ambient light and admits luminescent after the activating light source is no longer available. Made with top grade strontium pigments, the material in the system is non-electric, non-toxic and non-radioactive. It is designed for easy maintenance, maximum durability and good slip resistance in all conditions.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 1 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.

For more application ideas, see Sample Application tab.

- SKU
  ZR233A
QuickShip
No
Manufacturer
Zero International
MPN
233

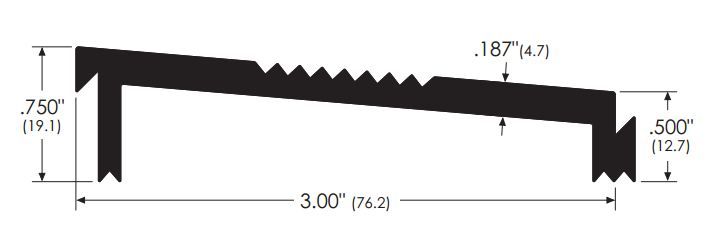

Dimensions
- Offset Height
  .75" Height
- Width
  3" Width
- Length
  Custom Cut to Size
- Material Thickness
  .187" Thick
Ramp Design
- Material
  Aluminum
- Ramp Component
  Ramp Bridge
- Ramp Type
  Flush Application
- Installation
  Installation screws provided.
- Drilling
  Drilling holes NOT provided
Finishes
- Finish
  Mill Finish Aluminum (US27), Flat Black (US19)

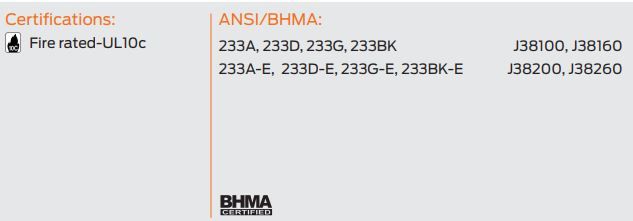

Compliance Details
- Compliance Details
  Fire Rated, BHMA Certified
- ANSI Designation
  J38100, J38160, J38200, J38260
- Warranty
  1 Year Limited Warranty

Click to Print

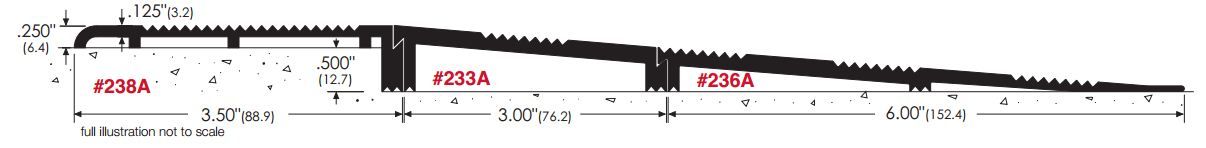

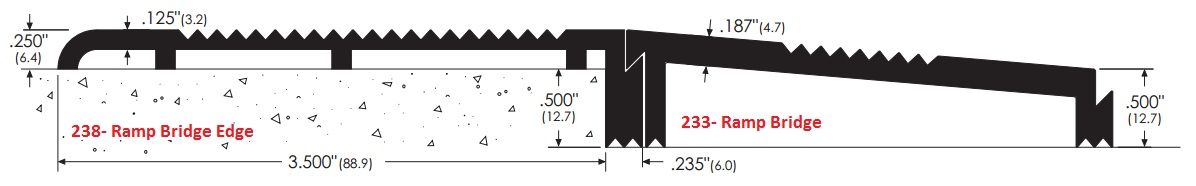

Product can be easily combined with Ramp Bridge Edge Piece which will protect stair edge from abuse and create a smooth transition in floor surfaces.

compliance details for z233
