How to Choose a Ramp System



Threshold Ramps are designed to ensure ease of movement through doorways or even interior thresholds and steps and for those with limited mobility. Additionally by leveling an uneven adjacent floor surfaces you eliminate tripping hazards associated with height discrepancies. For additional options, see our Half Thresholds.

Our threshold ramps are crafted from heavy duty materials that will last through constant usage and not buckle or warp over time. Choose from our standard widths, or combine products of various widths to create a ramp that will fit your specific dimensions. Lengths are custom cut to size.

Important Note, All parts listed on this page are compatible only with Zero Ramp Parts only (Ensure that all parts purchased have an SKU beginning with 'Z')



END PIECES

Ramp End Pieces can be used alone or together with a Ramp Bridge. Combine a Ramp to one or more Bridges to create a product that fits your specific dimensions. Ramp parts are notched and can be easily applied together with no welding required. Lengths are custom cut to size.

Aluminum:

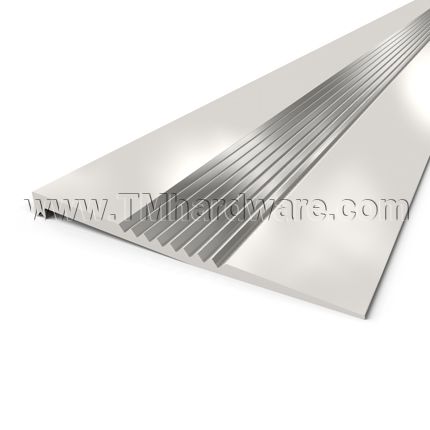

SKU: Z235
Width: 3"
Height: 0" - .25"
Thickness: .125"
Connnects With: Z234

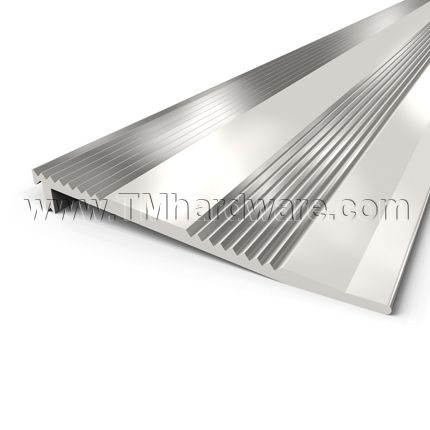

SKU: Z2361
Width: 3.94"
Height: 0" - .5"
Thickness: .187"
Connnects With: Z233, Z232, Z237

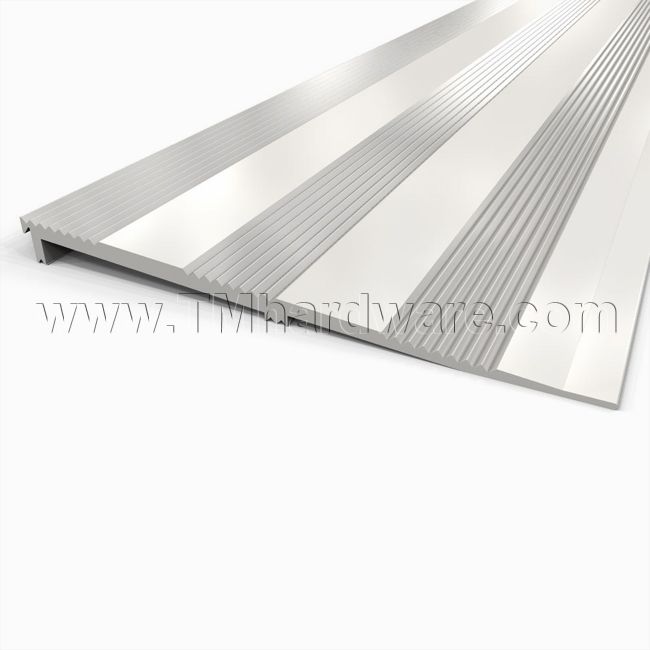

SKU: Z236
Width: 6"
Height: 0" - .5"
Thickness: .187"
Connnects With: Z233, Z232, Z237
Rubber:

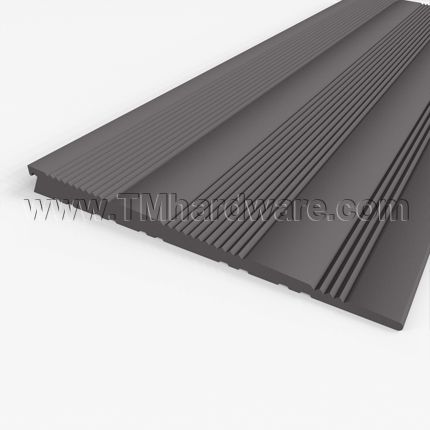

SKU: Z259
Width: 6"
Height: .125" - .5"
Thickness: N/A
Connnects With: Z258



RAMP BRIDGES

Ramp Bridges are used in cunjunction with Ramp End Pieces to create a Ramp System that fit your specific dimensions. Additionally, by combining two or more pieces, it creates a stronger, more durable and stable product. Lengths are custom cut to size.

Aluminum:

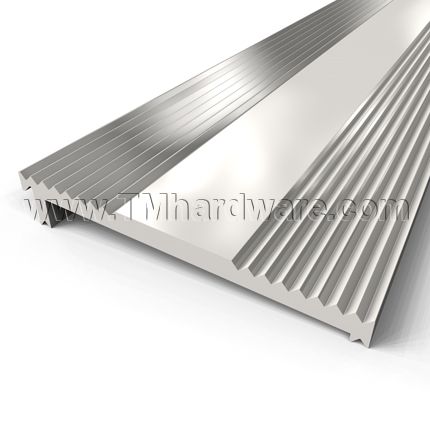

SKU: Z234
Width: 3"
Height: .25" - .5"
Thickness: .187"
Connnects With: Z233, Z232, Z237, Z235

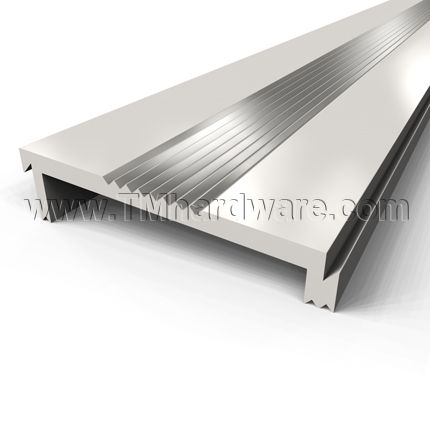

SKU: Z233
Width: 3"
Height: .5" - .75"
Thickness: .187"
Connnects With: Z238, Z236, Z2361

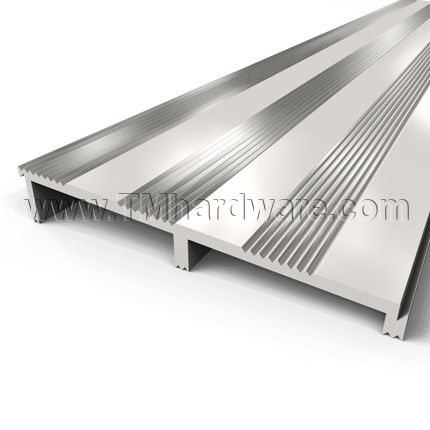

SKU: Z232
Width: 6"
Height: .5" - 1"
Thickness: .187"
Connnects With: Z236, Z2361
Rubber:

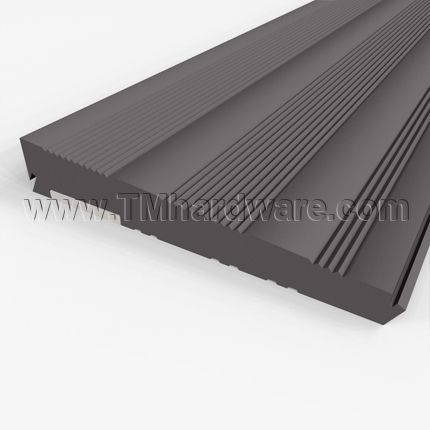

SKU: Z258
Width: 6"
Height: .5" - 1"
Thickness: N/A
Connnects With: Z259


EDGE PIECES

Edge Pieces are combined with Ramp Briges or End Pieces and are applied over a step or drop in surface height to protect the edge of the stair and to create a smooth transition between the upper floor surface and the ramp.

SKU: Z237
Width: 3.5"
Height: .5"
Accommadates Drop Of: .25"
Thickness: .125"
Connnects With: Z2361, Z236

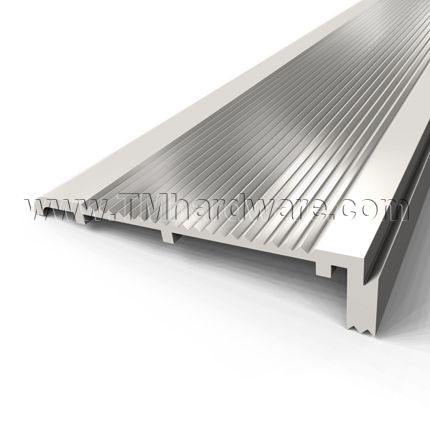

SKU: Z238
Width: 3.5"
Height: .75"
Accommadates Drop Of: .5"
Thickness: .125"
Connnects With: Z233

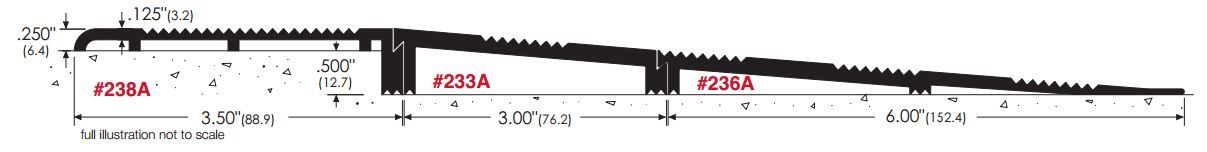

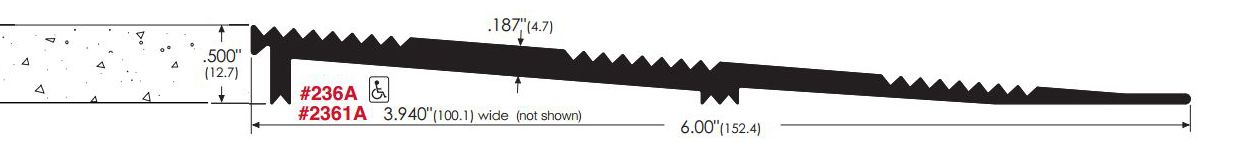

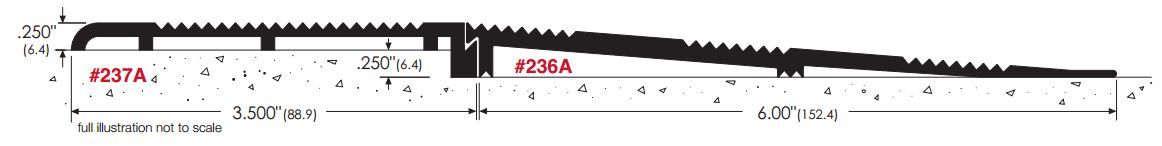

SAMPLE APPLICATIONS
