Zero #234 .25" to .5" Height Aluminum Ramp Bridge, 3" Length

This Zero #234 high quality aluminum mill finish ramp bridge can be combined with other ramp parts to create an ADA Compliant ramp. It accommodates changes in floor surfaces from .5" to .25". The parts are interlocking, eliminating the need to weld joints together and is custom cut to size.

PRICED PER FOOT

This ramp bridge should be used in conjunction with a Ramp End from our Ramp Systems. See How to Choose a Ramp System for help in combining your Ramp System.

See tabs below for additional information

Finish
Length

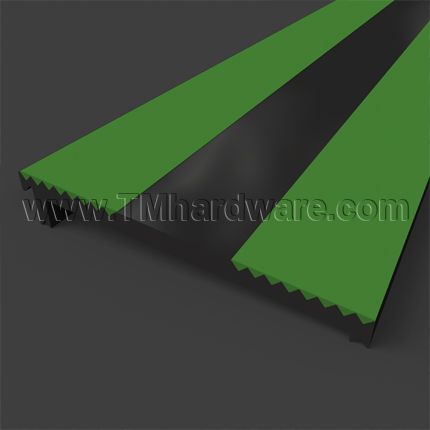

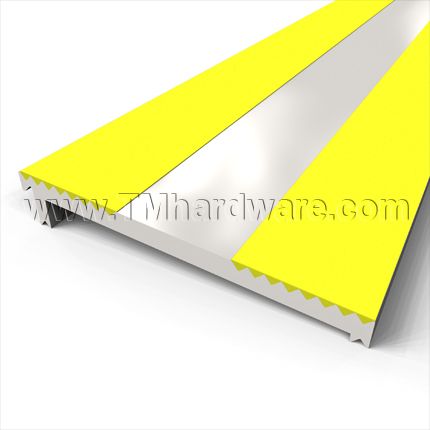

Add Photoluminescent

Quantity

Add to compare

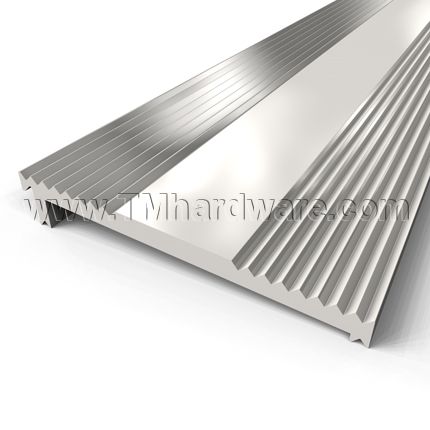

This Zero #234 high quality 3" ramp bridge can be combined with other ramp parts to create an ADA Compliant ramp. It is extruded from high quality .187" thick aluminum mill finish, which ensure a long lasting product that will not buckel, even through frequent usage. It is built to accommodate changes in floor surfaces from .5" to .25".

The parts are interlocking, eliminating the need to weld joints together. Available in aluminum mill finish.

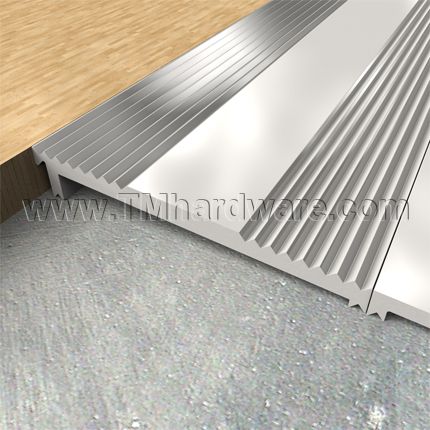

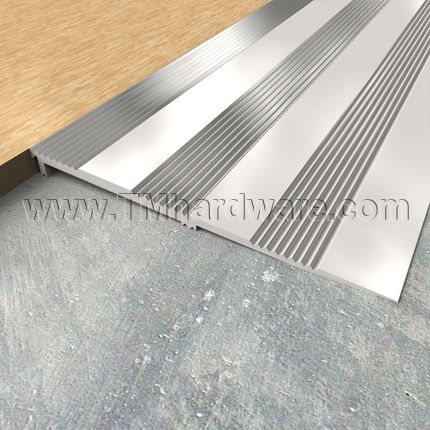

Detailed images are used in conjunction with our 6" Wheelchair Accessible Ramp.

Installation screws provided.

This Ramp Bridge should be used in conjunction with other parts of our Ramp System, see How to Choose a Ramp System. This product (Z234) is compatible with the following Ramp Ends:

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 1 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.

- SKU
  ZR234A
QuickShip
No
Manufacturer
Zero International
MPN
234

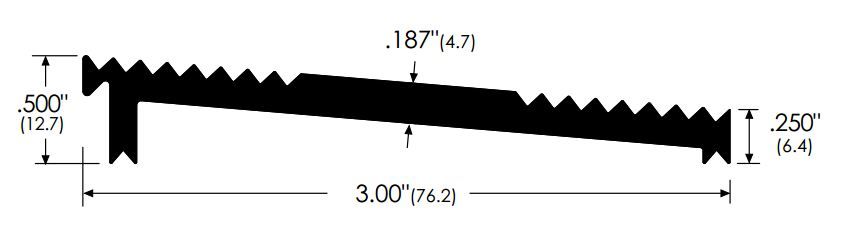

Dimensions
- Offset Height
  .5" Height
- Width
  3" Width
- Length
  Custom Cut to Size
- Material Thickness
  .187" Thick
Ramp Design
- Material
  Aluminum
- Ramp Component
  Ramp Bridge
- Ramp Type
  Flush Application
- Installation
  Installation screws provided.
- Drilling
  Drilling holes NOT provided
Finishes
- Finish
  Mill Finish Aluminum (US27), Flat Black (US19)

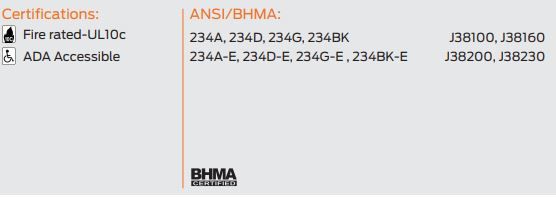

Compliance Details
- Compliance Details
  Fire Rated, ADA Compliant, BHMA Certified
- ANSI Designation
  J38100, J38160, J38200, J38230
- Warranty
  1 Year Limited Warranty
