Zero #232 .5" to 1" Height Aluminum Ramp Bridge, 6" Length

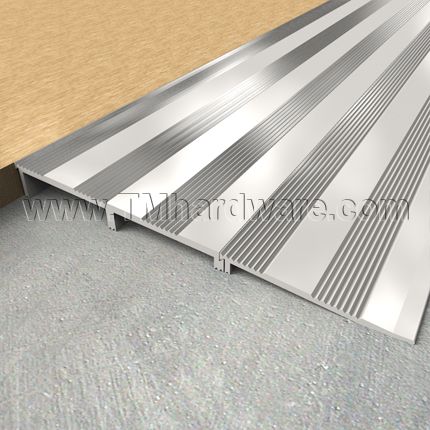

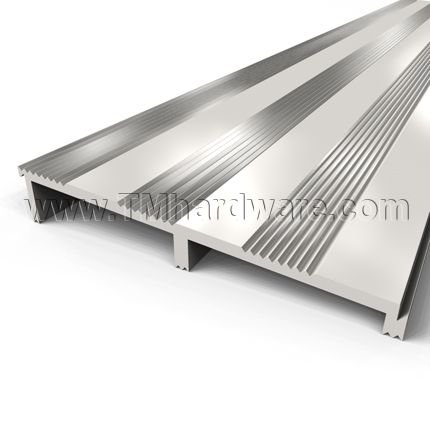

This Zero #232 6" Aluminum Ramp Bridge accommodates changes in floor surface heights from 1" to .5" inches. The ramp bridge is designed with interlocking parts, which eliminates the need for welding. Available in high quality aluminum and is custom cut to required width.

PRICED PER FOOT

This ramp bridge should be used in conjunction with a Ramp End from our Ramp Systems. See How to Choose a Ramp System for help in combining your Ramp System.

See tabs below for additional information

Finish
Length
Add Photoluminescent

Quantity

Add to compare

This 6" Aluminum Ramp Bridge accommodates changes in floor surface heights from 1" to .5" which, when combined with other products, can for an ADA Compliant ramp. The ramp bridge is designed with interlocking parts, which eliminate the need for welding. It is crafted from .187" thick high quality aluminum which ensures a long-lasting product that will not buckle.

Installation screws provided.

This Ramp Bridge should be used in conjunction with other parts of our Ramp System, see How to Choose a Ramp System. This product (Z232) is compatible with the following Ramp Ends:

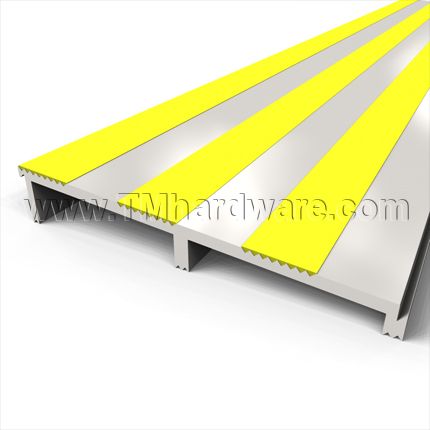

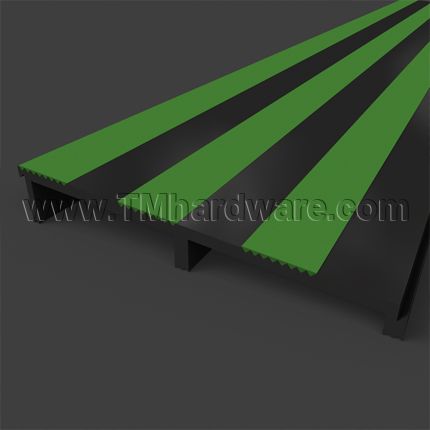

Photoluminescent: Facilitates safe emergency exists when power systems have failed. The photoluminescent material is charged by exposure to ambient light and admits luminescent after the activating light source is no longer available. Made with top grade strontium pigments, the material in the system is non-electric, non-toxic and non-radioactive. It is designed for easy maintenance, maximum durability and good slip resistance in all conditions Please note, images are for illustrative purposes only.

They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 1 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

- SKU
  ZR232A
QuickShip
No
Manufacturer
Zero International
MPN
232

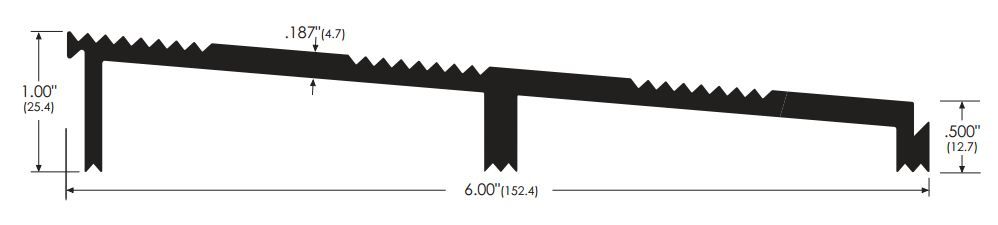

Dimensions
- Offset Height
  1" Height
- Width
  6" Width
- Length
  Custom Cut to Size
- Material Thickness
  .187" Thick
Ramp Design
- Material
  Aluminum
- Ramp Component
  Ramp Bridge
- Ramp Type
  Flush Application
- Installation
  Installation screws provided.
- Drilling
  Drilling holes NOT provided
Finishes
- Finish
  Mill Finish Aluminum (US27), Flat Black (US19)

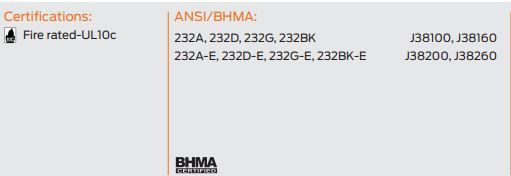

Compliance Details
- Compliance Details
  Fire Rated, BHMA Certified
- ANSI Designation
  J38100, J38160, J38200, J38260
- Warranty
  1 Year Limited Warranty

Click to Print

compliance details for Z232
