Zero #164 Utility Threshold, 4" Aluminum or Bronze with Smooth Top, .5" Height

Zero #164 Utility Threshold, 4" Aluminum or Bronze with Smooth Top, .5" Height
Zero International

This Zero #164 4" Utility Threshold has a smooth top which prevents mud, ice and snow gathering in grooves, ensuring easy maintenance. It is fire rated, wheelchair accessible and prevents air infiltration. Available in aluminum mill finish, bronze mill finish and is custom cut to size. Options of epoxy and full body strength available.

PRICED PER FOOT

See tabs below for additional information
    • SKU
      ZR164A
    • Market price:$18.00
      • save 5%
    • Starting price: Price: $17.10 per foot

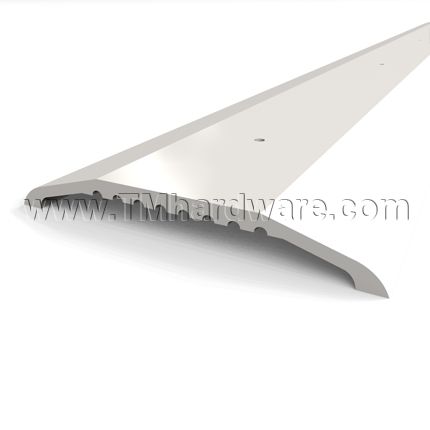

    Smooth top design prevents mud and ice from gathering in grooves and ensures easy maintenance.

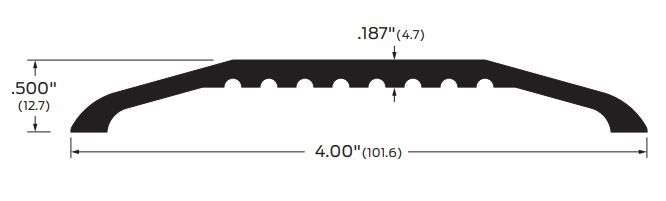

    Width: 4"

    Height: .5"

    Thickness: .187"

    Length: Custom cut to size up to 104" (Larger sizes can be purchased through our office)

    A Note on Finishes: Aluminum Mill Finish is plain smooth metal as it comes from the mill, without a coating. Bronze is a mill finish, sometimes referred to as Architectural Bronze. It is a solid bronze piece, which increases longevity and aesthetics, thus the large difference in price. It gets darker in color in time when exposed to the environment.

    Compliance Details: Fire Rated, Positive Pressure Rated, UL Listed, ADA / Wheelchair Compliance

    Installation: Installation instructions and screws provided. If threshold is being drilled into concrete, an Expansion Anchor is recommended.

    Drilling: This product is drilled at standard factory locations.

    Additional Options- Select from options above:

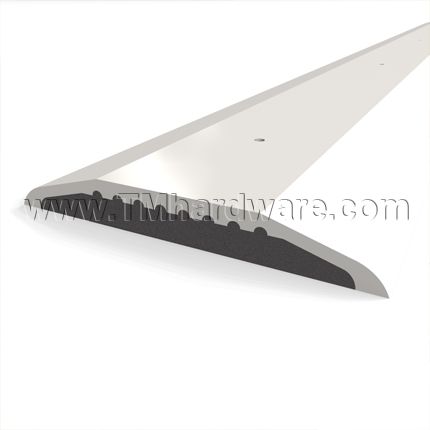

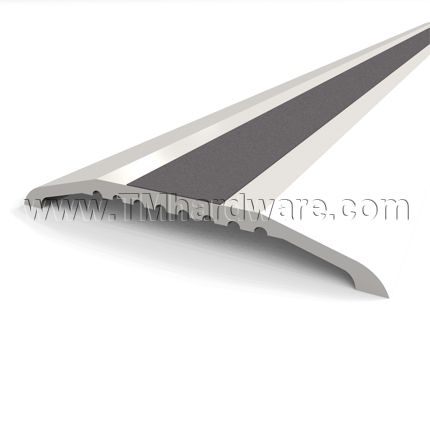

    • Non-Stick Epoxy Abrasives can be bonded into the grooves. The tread provides a coefficient of friction of 1.02 dry and 0.98 wet to comply with ADA, OSHA and most local building codes requirements.
    • Full Body Strength: An aluminum composite filler containing aluminum oxide and silicone carbide. Ideal applications include heavy commercial traffic in supply rooms, manufacturing buildings, schools, cafeterias, automobile dealers, hospitals, industrial facilities.

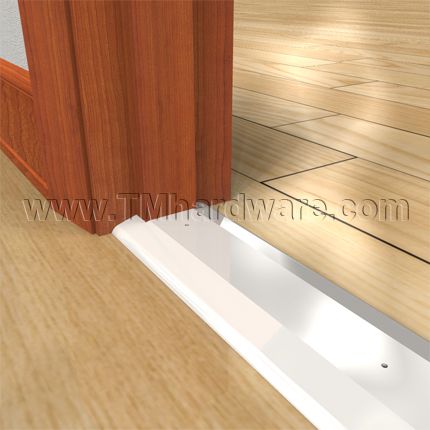

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
    Click here to view our Full Warranty Policy.

    Click here to see this product in a stainless steel version Zero International #164STST

      • SKU
        ZR164A
    • QuickShip
      No
    • Manufacturer
      Zero International
    • MPN
      164
    • Options
      None, Epoxy Abrasives, Full Body Strength
    • Dimensions
      • Overall Height
        .5" Height
      • Overall Width
        4" Width
      • Threshold Length
        Custom Cut to Size
      • Required Door Clearance
        .625" Height
    • Product Design
      • Flat Saddle Design
        Smooth Top Design
      • Threshold Type
        Flat Utility Threshold
      • Material
        Aluminum, Brass
    • Installation
      • Drilling Holes
        Drilling holes provided
      • Fasteners
        Fasteners Provided
    • Finishes
      • Finish
        Mill Finish Aluminum (US27), Bronze Mill Finish (Brass), Flat Black (US19)
    • Compliance Details
      • Warranty
        1 Year Limited Warranty
