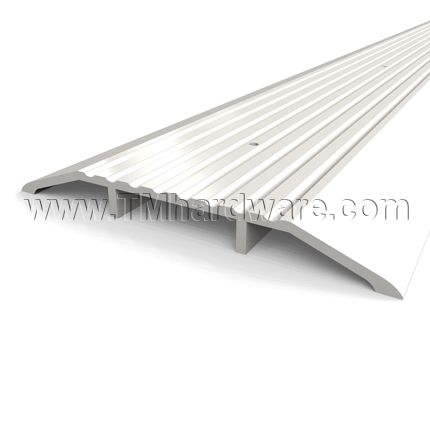

Zero #8655 Utility Threshold, 5" Wide Aluminum, .5" Height
This Zero #8655 Aluminum Utility Threshold is wheelchair compatible and Fire rated. Creates a smooth finish for any doorway and stops dust and drafts from entering. Options of epoxy abrasives and full body strength available. Custom cut to size.
PRICED PER FOOT
Threshold is regular duty, designed for areas with medium frequency foot traffic. For heavy duty, commercial use, see our 5" Wide Utility Threshold.
Width: 5"
Height: .5"
Thickness: .115"
Length: Custom cut to size
Compliance Details: Fire Rated, ADA / Wheelchair Compliance
Installation: Installation instructions and screws provided. If threshold is being drilled into concrete, an Expansion Anchor is recommended.
Drilling: This product is drilled at standard factory locations.
Additional Options- Select from options above:

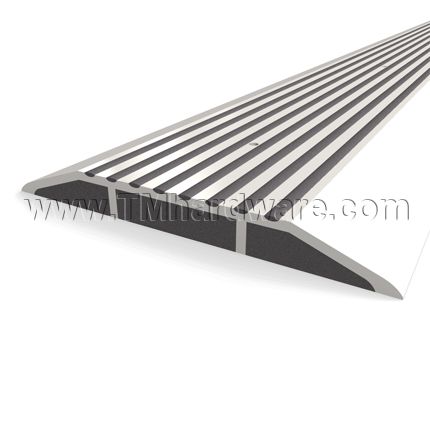

- Non-Stick Epoxy Abrasives can be bonded into the grooves. The tread provides a coefficient of friction of 1.02 dry and 0.98 wet to comply with ADA, OSHA and most local building codes requirements.

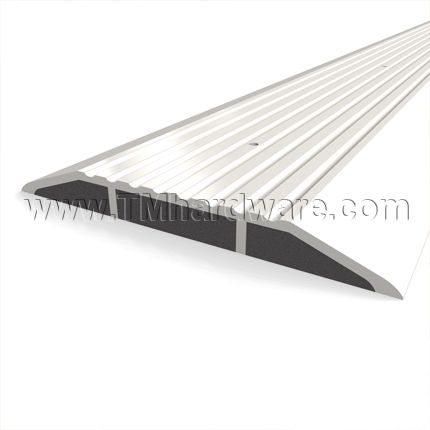

- Full Body Strength: An aluminum composite filler containing aluminum oxide and silicone carbide. Ideal applications include heavy commercial traffic in supply rooms, manufacturing buildings, schools, cafeterias, automobile dealers, hospitals, industrial facilities.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
-
QuickShipNo
-
ManufacturerZero International
-
MPN8655
-
OptionsStandard Aluminum, Aluminum with Epoxy Abrasives, Aluminum with Full Body, Alum. with Epoxy and Full Body

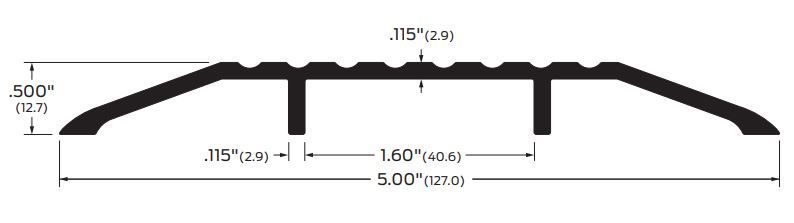

- Dimensions
-
Overall Height.5" Height
-
Overall Width5" Width
-
Threshold LengthCustom Cut to Size
-
Required Door Clearance.625" Height
-
Thickness.115" Thick
-
- Product Design
-
Flat Saddle DesignFluted (Grooved) Design
-
Threshold TypeFlat Utility Threshold
-
MaterialAluminum
-
- Installation
-
Drilling HolesDrilling holes provided
-
FastenersFasteners Provided
-
- Finishes
-
FinishMill Finish Aluminum (US27), Flat Black (US19)
-

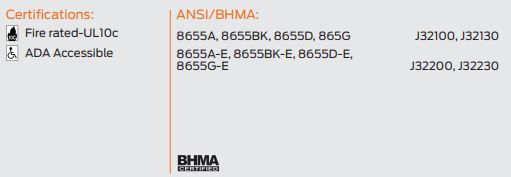

- Compliance Details
-
Warranty1 Year Limited Warranty
-
