Zero, Door Threshold, Aluminum, 8" wide, .25" Height

Zero, Door Threshold, Aluminum, 8" wide, .25" Height
Zero International

Similar stock sizes are available to ship within 1 business day. Click here for QuickShip Barzen 8 inch wide Door Threshold

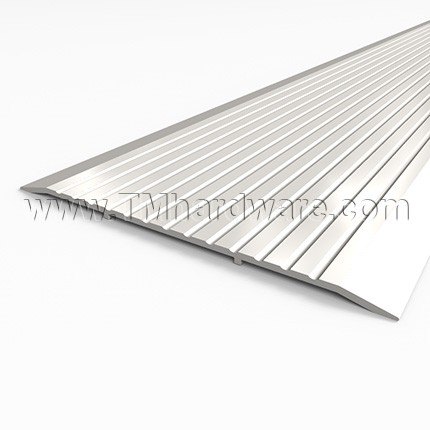

This Zero #548 8" utility threshold is designed for home or commercial use. It can serve as a cover for an expansion joint if screws are only applied to one side of the threshold (see product specs tab). Crafted from high quality aluminum, this threshold will not bend or break under heavy use. It is wheelchair accessible and fire rated. Available in a variety of different finishes and is custom cut to size.

This item has EXTENDED LEAD TIMES. For a similar profile Quick Ship threshold click here.

PRICED PER FOOT.

See tabs below for additional information
    • SKU
      ZR548A
    • Market price:$29.48
      • save 5%
    • Starting price: Price: $28.01 per foot


    This Zero #548 8" Door Saddle is designed for home or commercial use. It can serve as a cover for an expansion joint if screws are only applied to one side of the threshold (see product specs tab). Crafted from high quality aluminum, this threshold will not bend or break under heavy use.

    Heavy duty threshold can also be applied as an Expansion Joint Cover application. See product data tab.

    Installation: Installation instructions and screws provided. If threshold is being drilled into concrete, an Expansion Anchor is recommended.

    Drilling: Drilling for threshold is not supplied unless specified and template is provided. Please contact us or call at 845-388-1300 to supply template.

    Additional Options - Select from options above:

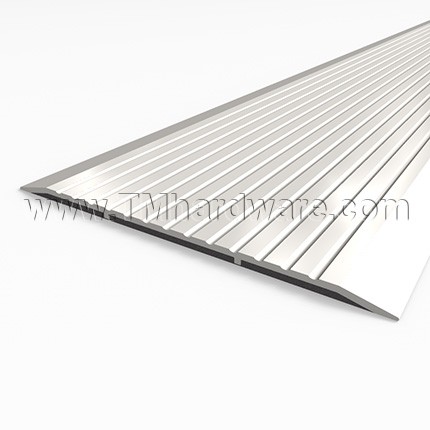

    • Non-Stick Epoxy Abrasives can be bonded into the grooves. The tread provides a coefficient of friction of 1.02 dry and 0.98 wet to comply with ADA, OSHA and most local building codes requirements.

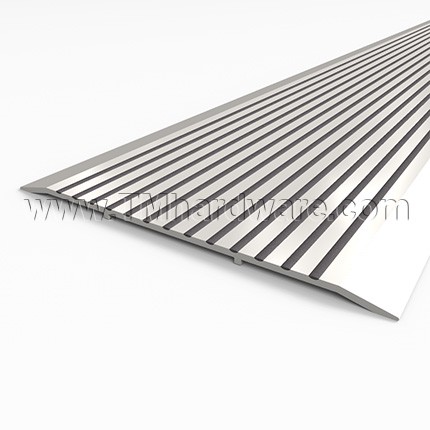

    • Full Body Strength: An aluminum composite filler containing aluminum oxide and silicone carbide. Ideal applications include heavy commercial traffic in supply rooms, manufacturing buildings, schools, cafeterias, automobile dealers, hospitals, industrial facilities.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
    Click here to view our Full Warranty Policy.

    Click here to veiw our other Expansion Joint Cover Plate Thresholds.

      • SKU
        ZR548A
    • QuickShip
      No
    • Manufacturer
      Zero International
    • MPN
      548
    • Dimensions
      • Overall Height
        .25" Height
      • Overall Width
        8" Width
      • Threshold Length
        Custom Cut to Size
      • Required Door Clearance
        .375" Height
      • Thickness
        .125" Thick
    • Product Design
      • Flat Saddle Design
        Fluted (Grooved) Design
      • Threshold Type
        Flat Utility Threshold
      • Material
        Aluminum
    • Installation
      • Drilling Holes
        Threshold is not provided drilled
    • Finishes
      • Finish

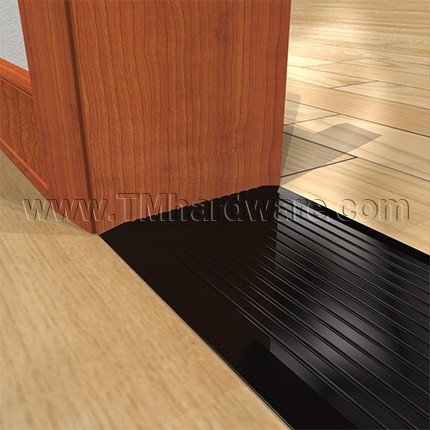

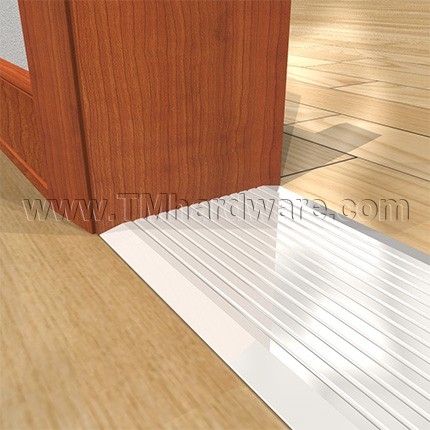

        Mill Finish Aluminum (US27), Black Anodized Aluminum (315), Dark Bronze Anodized Aluminum (313), Gold Anodized Aluminum, Flat Black (US19)

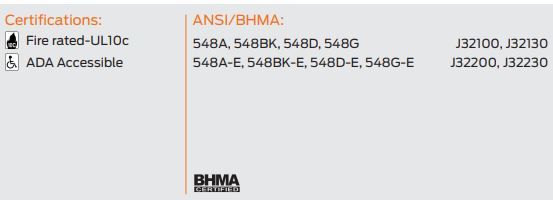

    • Compliance Details
      • Compliance Details
        Fire Rated, ADA Compliant
      • ANSI Designation
        J32100, J32130, J32200, J32230
      • Warranty
        1 Year Limited Warranty

    Click to Print

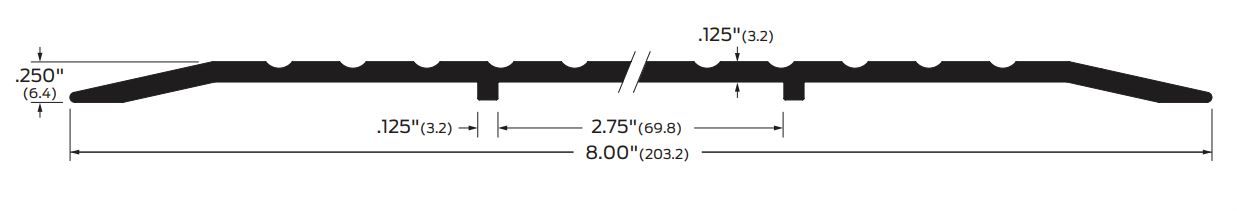

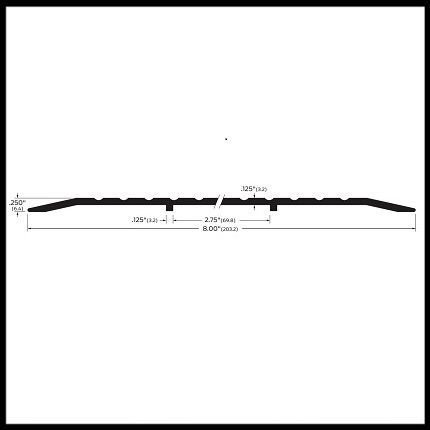

    product specs for z548

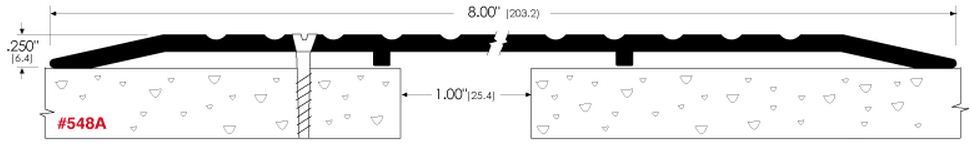

    Cover for 1" Expansion Joint

    Threshold can also serve as a cover for an expansion joint if screws are only applied to one side of the threshold. Expansion joints are the gaps left between two flooring areas to prevent warping of floor materials resulting from the expansion and shrinkage of certain types of flooring due to seasonal temperature changes. When a threshold is screwed in place above it to conceal the gap, having screws securing the threshold into only one of the two adjacent floor surfaces supplies the flexibility needed to permit possible floor changes, unlike a fully screwed in threshold.






    .


    SHIPPING / PROCESSING TIME:

    This product ships directly from the manufacturer.
    Zero is experiencing Significant Delays. If you are in a rush please call us for alternative options.



    • Domestic Shipping Fees- (Hawaii and Alaska not Included):
      • FREE SHIPPING on orders over $300.00 (excludes oversized and freight orders).
      • There will be a flat $19.99 shipping and handling fee on orders under $300.00.
      • Oversize: Orders containing items sized 50" - 95" have an oversize surcharge of $49.99.
      • Freight Items: Orders containing items sized 96" - 108" have an oversize surcharge of $199.99.
      • Oversize Freight Items: Orders containing items sized 109" and above have an oversize surcharge of $299.99.
      • Orders totals above $2,000.00 will ship free, regardless of size.

    • Alaska and Hawaii, Canada, and International Shipping:
    • Returns:
      • This product is custom made and is not returnable.
      • We are committed to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 30% restock fee.
      • CLAIMS FOR SHORTAGE OR DAMAGE IN TRANSIT: All claims must be made within Seven (7) days of receipt of goods.
      • Weatherstripping products will not be considered for returns.
      • Item must be in new, re-saleable condition.
      • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
      • Return shipping is customer's responsibility. A return address will be provided with RMA#.
      • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
