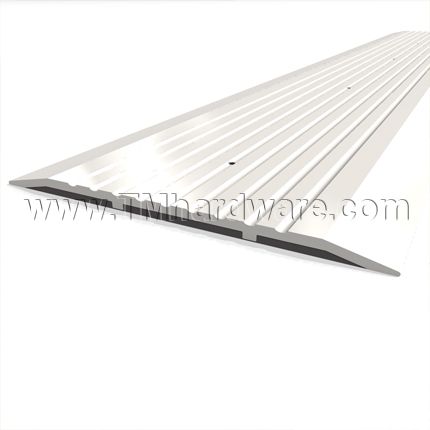

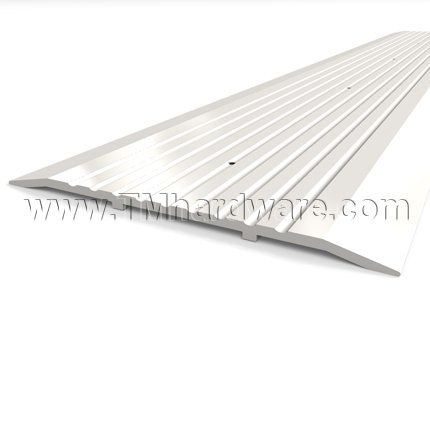

Zero #546 Door Threshold, 6" Wide, .25" Height

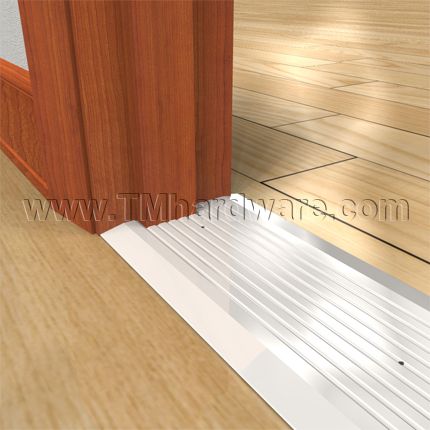

This Zero #546 threshold is wheelchair accessible and fire rated. It finishes off doorways nicely and creates a smooth transition between floor surfaces. It is also effective in dust and draft elimination. Available in a variaty of finishes and is custom cut to size.
PRICED PER FOOT
This Zero Door threshold is wheelchair accessible and fire rated. It finishes off doorways nicely and creates a smooth transition between floor surfaces. It is also effective in dust and draft elimination.Â
Installation: Installation instructions and screws provided. If threshold is being drilled into concrete, an Expansion Anchor is recommended.
Drilling: Drilling for threshold is not supplied unless specified and template is provided. Please contact us or call at 845-388-1300 to supply template.
Additional Options- Select from options above:

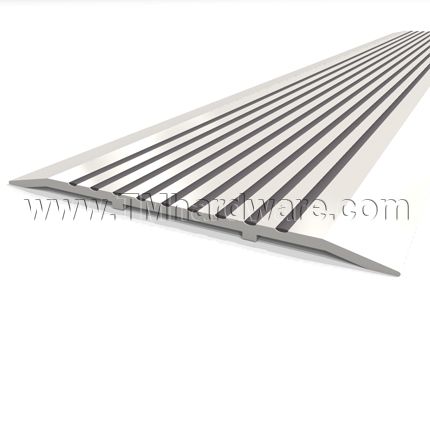

- Non-Stick Epoxy Abrasives can be bonded into the grooves. The tread provides a coefficient of friction of 1.02 dry and 0.98 wet to comply with ADA, OSHA and most local building codes requirements.
- Full Body Strength: An aluminum composite filler containing aluminum oxide and silicone carbide. Ideal applications include heavy commercial traffic in supply rooms, manufacturing buildings, schools, cafeterias, automobile dealers, hospitals, industrial facilities.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
Click here to go back to our Door Threshold Homepage.
-
QuickShipNo
-
ManufacturerZero International
-
MPN546

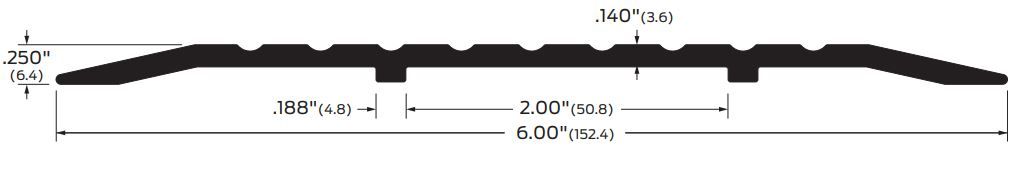

- Dimensions
-
Overall Height.25" Height
-
Overall Width6" Width
-
Threshold LengthCustom Cut to Size
-
Required Door Clearance.375" Height
-
Thickness.125" Thick
-
- Product Design
-
Flat Saddle DesignFluted (Grooved) Design
-
Threshold TypeFlat Utility Threshold
-
MaterialAluminum
-
- Installation
-
Drilling HolesThreshold is not provided drilled
-
- Finishes
-
FinishMill Finish Aluminum (US27), Black Anodized Aluminum (315), Dark Bronze Anodized Aluminum (313), Gold Anodized Aluminum, Flat Black (US19)
-

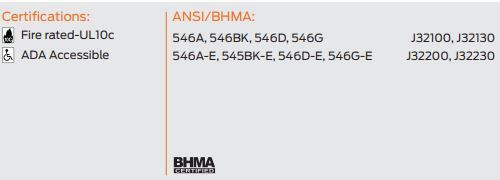

- Compliance Details
-
Compliance DetailsFire Rated, ADA Compliant, BHMA Certified
-
ANSI DesignationJ32100, J32130, J32230, J32200
-
