Zero #328MS Meeting Stile, Aluminum or Bronze Casing with Neoprene Ring Seal

This Zero #328MS product can be applied as a astragal between two adjacent double active doors. It is smoke and fire rated and can effectively reduce natural sound levels. Available in Bronze or various aluminum anodized finishes and is custom cut to size.

PRICED PER FOOT - see full product details and specs in the tabs below

Reminder: If being purchased for both doors, select quantity 2, or as needed.

See tabs below for additional information
    • SKU
      ZR328AA_MS
    • Market price:$10.66
      • save 5%
    • Starting price: Price: $10.13 per foot


    This Zero #328MS product can be applied as a astragal between two adjacent double active doors. It is smoke and fire rated and can effectively reduce natural sound levels. The Solid Neoprene Bulb Seal has great compression and waterproof properties.

    Additional Applications:

    Additional Options: Note, this product is also available in Anti-Ligature design, designed for use in correctional facilities and psychiatric wards. Can be purchased through our office.

    Reminder: If being purchased for both doors, select quantity 2, or as needed.

    Replacement Seals: To purchase a replacement for this seal see our .25" Neoprene Bulb Replacement Seal.

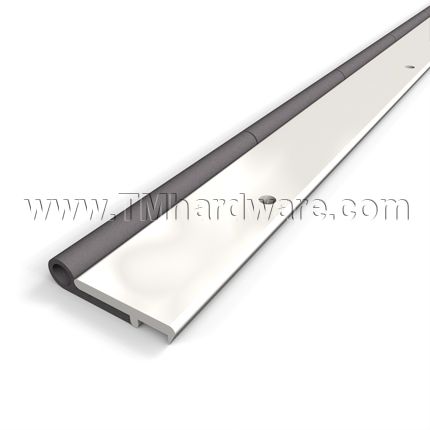

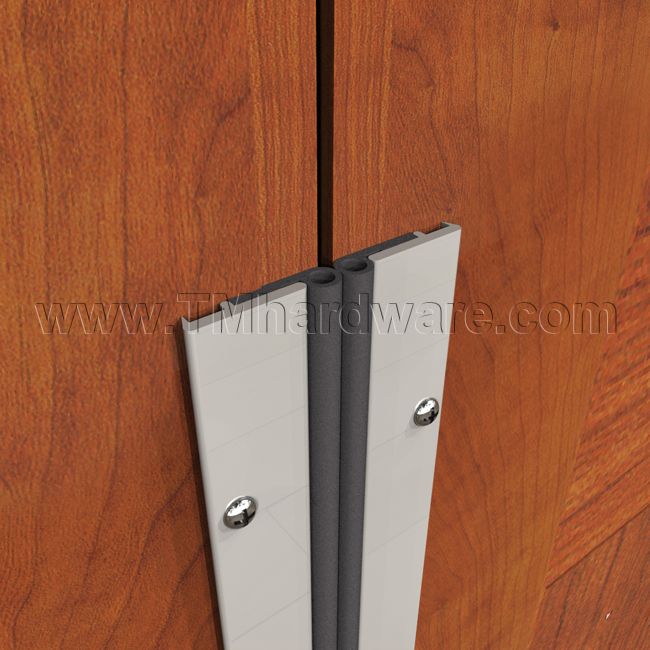

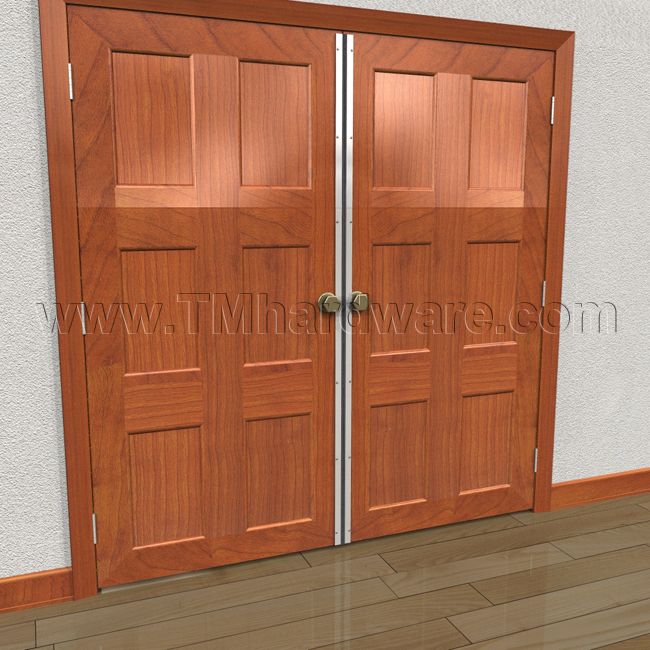

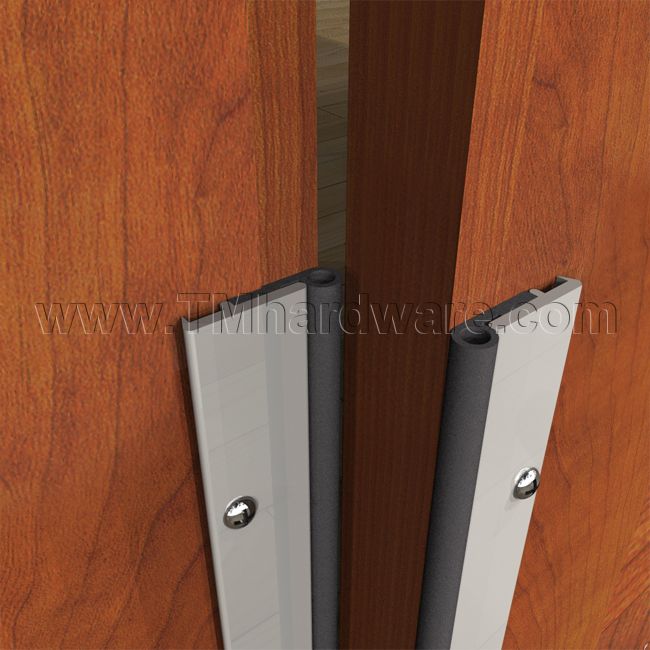

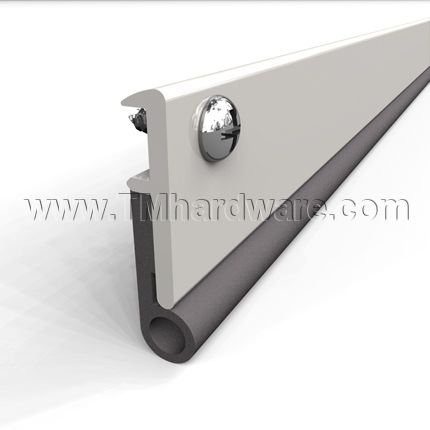

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, colors may vary slightly and size may be enlarged to show detail. See our product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
     Click to view our Full Warranty Policy.

    To view an option of single active door astragal, see our Zero International #339W-MS 1.5" Smoke Rated Meeting Stile.

      • SKU
        ZR328AA_MS
    • QuickShip
      No
    • Manufacturer
      Zero International
    • MPN
      328-MS
    • About This Product
      • Retainer Material
        Aluminum, Bronze
      • Seal Type
        Neoprene
      • Door Type
        Double Active Doors
      • Mounting
        Surface Mounted

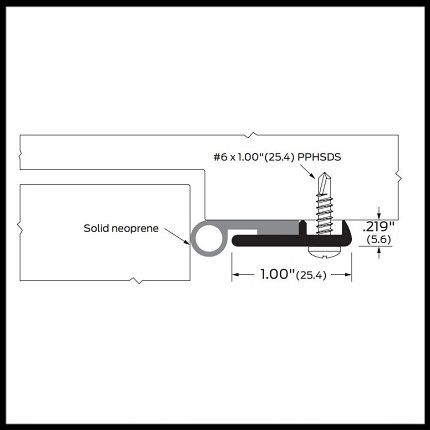

    • Dimensions
      • Total Height
        1"
      • Width
        .219"
      • Size (Feet)
        Custom Cut to Size
    • Installation
      • Installation Screws
        #6 x 1.00" (25.4) PPHSDS Provided
    • Finishes
      • Finish
        Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), Gold Anodized Aluminum, Bronze Mill Finish (Brass), Flat Black (US19)
    • Compliance Details
      • Compliance Details
        Fire Rated, Smoke Rated, Air Infiltration Rated, Sound Rated
      • ANSI Designation
        R3B164, R3B434, R3B735
      • Warranty
        1 Year Limited Warranty

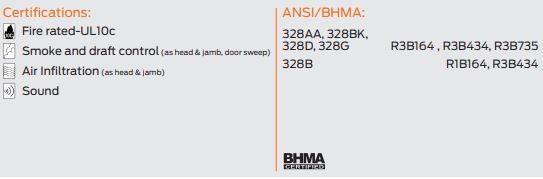

    compliance details for z328
