Zero #8194MS Meeting Stile, .6" Aluminum with .375" Neoprene Rubber Seal

This Zero #8194MS surface mounted meeting stile is designed for use on double active doors. It's fitted with a .375" neoprene rubber lip seal to create a seal against moisture, light, dust, fumes and insects. Available in two anodized finishes and length is custom cut to size.

SOLD BY THE FOOT.

Reminder: If being purchased for both doors, select 'Quantity 2', or as needed.

Minimum purchase quantity: 3 units
See tabs below for additional information
    • SKU
      ZR8194AA|MS
    • Market price:$5.65
      • save 5%
    • Starting price: Price: $5.37 per foot


    A properly sealed door can significantly alter the effectiveness of your door and prevent unnecessary energy waste, thereby lowering utility bills. A meeting stile can seal the gap that is present between a pair of double doors.

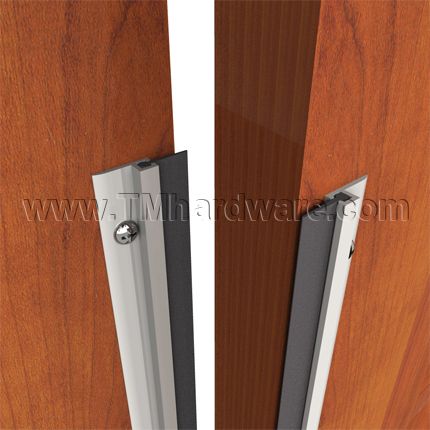

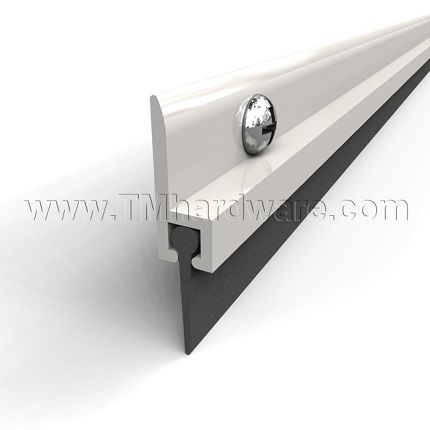

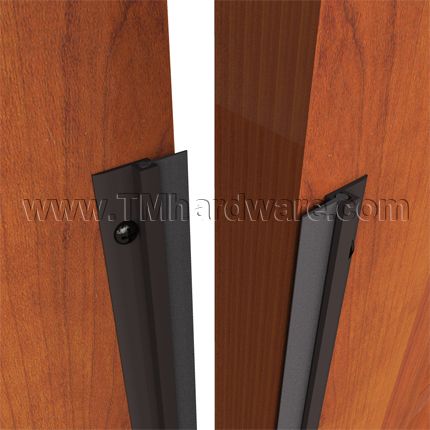

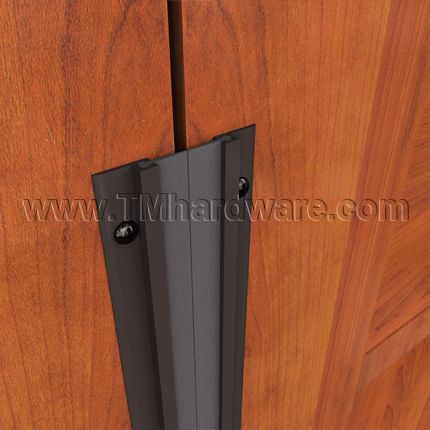

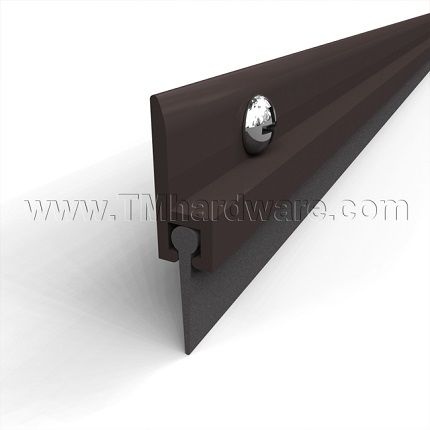

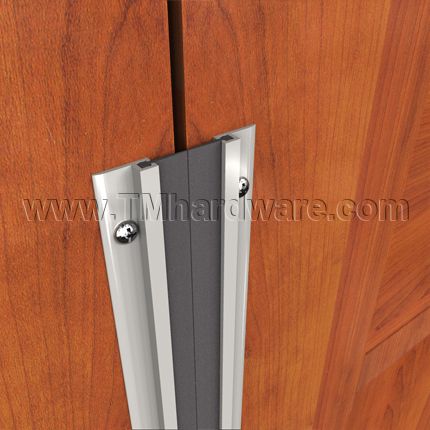

    This meeting stile is designed to be surface mounted to the face of double active doors. Casing is made of high quality anodized aluminum, which will show minimal wear and tear, even through constant usage. It is fitted with a .375" solid neoprene seal. As a pair, it can seal gaps up to .75". The rubber seal remains flexible in all conditions and will withstand extreme weather conditions.

    Product can also be applied along the bottom of the door as a Door Bottom Sweep.

    Installation screws provided. Screws are colored to blend unobtrusively with casing.

    Reminder, if being purchased for both doors, select 'Quantity 2' or as needed.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
     Click to view our Full Warranty Policy.


    To view a brush seal version, see our Zero International #8193MS .59" Aluminum with .375" Brush Seal Meeting Stile.

      • SKU
        ZR8194AA|MS
    • QuickShip
      No
    • Manufacturer
      Zero International
    • MPN
      8194
    • About This Product
      • Retainer Material
        Aluminum
      • Seal Type
        Neoprene
      • Door Type
        Double Active Doors
      • Mounting
        Surface Mounted

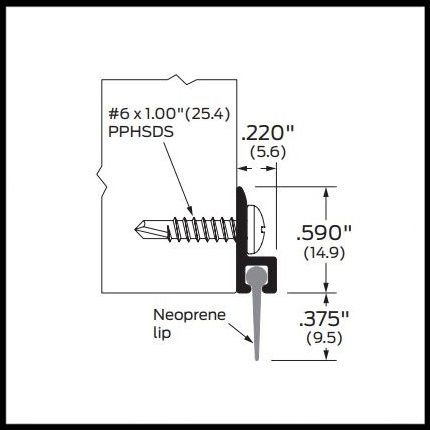

    • Dimensions
      • Seal Height
        .375"
      • Total Height
        .965"
      • Width
        .220"
    • Installation
      • Installation Screws
        #6 x 1.00" (25.4) PPHSDS Provided
    • Finishes
      • Finish

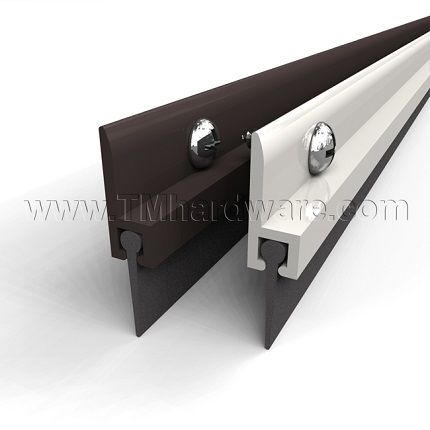

        Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313)
    • Compliance Details
      • Compliance Details
        Fire Rated, BHMA Certified
      • ANSI Designation
        R3B434, R3A735
      • Warranty
        1 Year Limited Warranty
