Zero #628 Bumper Threshold, 2.9" (W) Aluminum with Neoprene Seal for Outswing Doors, .5" H

Zero #628 Bumper Threshold, 2.9" (W) Aluminum with Neoprene Seal for Outswing Doors, .5" H
Zero International

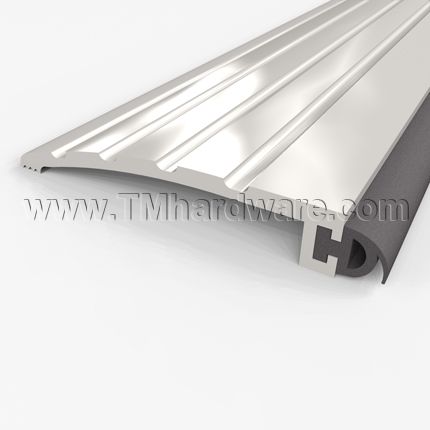

This Zero #628 threshold door stop / butt threshold is fitted with a neoprene gasket, ensuring a reliable seal. It has a 2.9" W and is .5" H. Available in Aluminum Mill Finish with Epoxy Abrasives and length is custom cut to size.

PRICED PER FOOT

See tabs below for additional information
    • SKU
      ZR628A-WH
    • Market price:$18.28
      • save 10%
    • Starting price: Price: $16.45 per foot

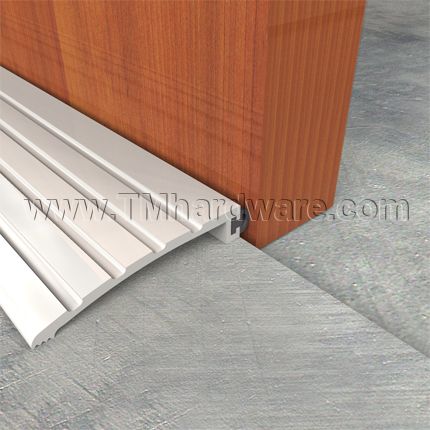

    The door closes against Threshold Stop / Butt Threshold with Seal to create a stong barrier against outdoor elements.

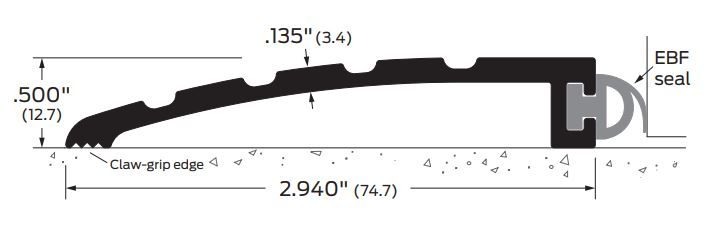

    Width: 2.940"

    Height: .5"

    Thickness: .135"

    Length: Custom cut to size up to 104" (Larger sizes can be purchased through our office)

    Finish: Aluminum mill finish

    Seal: Double Solid Neoprene EBF (Extruded Bulb and Finger Design). The bulb has great compression properties while the additional finger aids in sealing extra gaps due to misalignment during installation or natural warping of the door. Solid neoprene will remain effective in extreme weather conditions.

    Installation: Installation Instructions and screws provided. If the threshold is being drilled into concrete, Expansion Anchors are recommended.

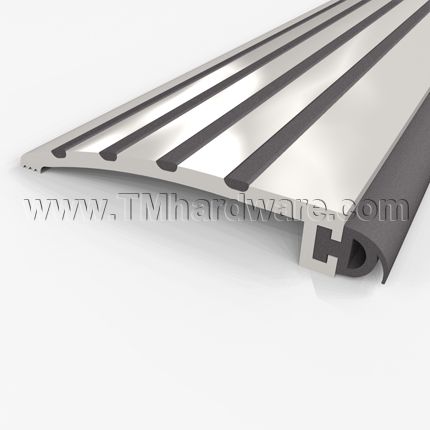

    Additional Options Include: Non-Stick Epoxy Abrasives can be bonded into the grooves. The tread provides a coefficient of friction of 1.02 dry and 0.98 wet to comply with ADA, OSHA and most local building codes requirements.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
    Click here to view our full Warranty Policy.

    Click here to see more Door Bumper Thresholds.

      • SKU
        ZR628A-WH
    • QuickShip
      No
    • Manufacturer
      Zero International
    • Dimensions
      • Overall Height
        .5" Height
      • Overall Width
        2.94" Width
      • Thickness
        .135" Thick
    • Product Design
      • Threshold Type
        Half Threshold, Rubber Seal / Bumper Threshold
      • Seal Type
        Neoprene Seal
    • Installation
      • Drilling Holes
        Select from options above
      • Fasteners
        Fasteners Provided
    • Finishes
      • Finish
        Mill Finish Aluminum (US27), Black Anodized Aluminum (315), Dark Bronze Anodized Aluminum (313), Gold Anodized Aluminum
    • Compliance Details
      • Compliance Details
        Fire Rated
      • Warranty
        1 Year Limited Warranty

    compliance details for z628
