Deltana, 2 Ball Bearings, Prime White Brass, Heavy Weight, 5 Knuckle, Full Mortise, 1/4" Radius Hinge, 4.5" x 4"
Deltana DSB4540NBW is a Full Mortise, 5 Knuckle, 2 Ball Bearing Hinge, and is made of Solid Brass. Size of hinges is 4-1/2" x 4" with 1/4" Radius Corners, Non-remvovable pin, and Button Tip Finials. Available in Prime White finish.
PRICED PER PAIR - See full product details and specs in the tabs below
Deltana DSB4540NBW is a Full Mortise, 5 Knuckle, 2 Ball Bearing Hinge, and is made of Solid Brass. Size of hinges is 4-1/2" x 4" with 1/4" Radius Corners, Non-remvovable pin, and Button Tip Finials. Available in Prime White finish.
Available Finishes: Prime White, see Deltana Hinges Color Chart for a detailed list of all Deltana Finishes.
Finials: Button Tip Provided.
Priced Per Pair

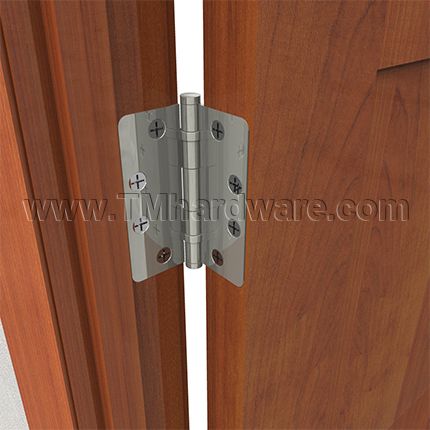

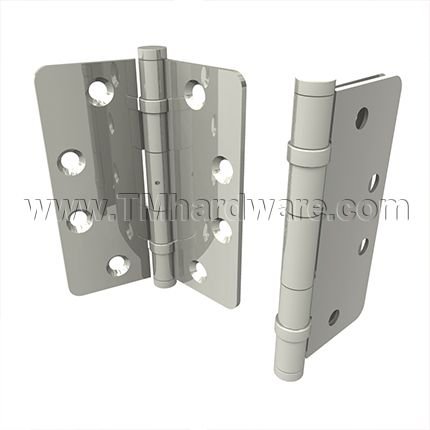

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year warranty against defects in material and workmanship
Click to see our Full Warranty Policy.
For larger hinges, see our Deltana Full Mortise, Solid Brass Square Hinge, 4" x 6" DSB4060
-
QuickShipYes
-
ManufacturerDeltana Hardware
-
MPNDSB4540
- Product Design
-
Hinge CategoryFull Mortised Hinge
-
Base MaterialBrass
-
Usage LevelHeavy Duty
-
ThrowStandard Throw
-
Bearing TypeBall Bearing
-
Knuckles5 Knuckle Hinge
-
Pin TypeNon-Removeable Pin (NRP)
-
Hinge Tip TypeButton Tip
-
Hinge Corner1/4" Radius Corner
-
Hole PatternCommercial "C" Pattern
-
Number of Holes8 Holes
-
- Dimensions
-

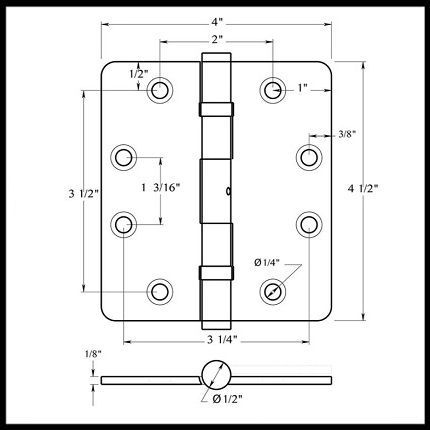

Hinge Size4-1/2" x 4"
-
Hinge Thickness.118" Thick
-
- Installation
-
Door TypeWooden Door
-
Installation ScrewsWooden Screws #12x1-1/4" Provided
-
- Finishes
-
FinishWhite
-
- Compliance Details
-
Warranty1 Year Limited Warranty
-
