Pemko #312 Door Gasket, .75" Aluminum or Bronze Casing with Sponge EPDM Seal

Pemko #312 Door Gasket, .75" Aluminum or Bronze Casing with Sponge EPDM Seal

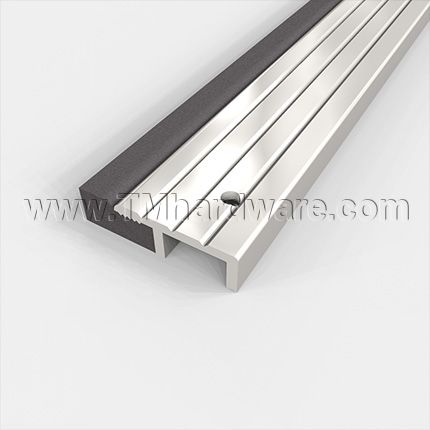

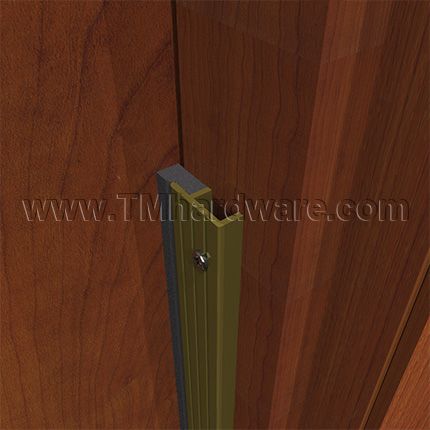

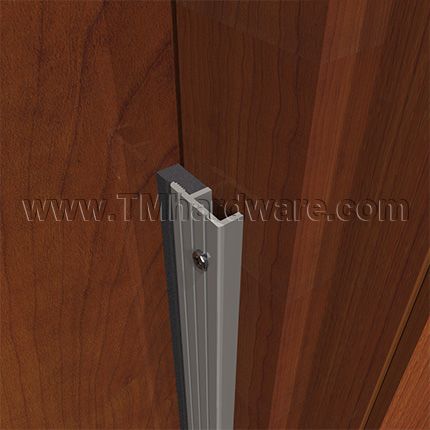

Product Specs of Door Gasket #312 Pemko Door Gasket #312 Pemko Door Gasket #312 in Clear Anodized Aluminum with Sponge Neoprene Seal Pemko Door Gasket #312 in Clear Anodized Alumnium with Sponge Neoprene Seal Applied on Wooden Door Pemko Door Gasket #312 in Gold Anodized Aluminum with Sponge Neoprene Seal Pemko Door Gasket #312 in Bronze Mill Finish with Sponge Neoprene Seal Applied on Wooden Door
0.0

This surface mounted head and jamb protection is fitted with a high quality Sponge EPDM seal which effectively seals the perimter of doors. This gasketing weatherstrip is designed to seal gaps up to 1/16", though it can seal up to the depth of its seal. .75" casing is available in three anodized finishes or bronze mill finish and is custom cut to size.

PRICED PER FOOT.

Market price: $4.20
save 15%
Price: $3.57
Finish
Size (Inches)
Qty
Save to wishlist
SKU P312CR
Shipping See Shipping Tab Below
Description

This gasketing weatherstrip is applied along the header and jamb of a door frame to seal the gaps along the perimeter of the door. It is fitted with a high quality sponge seal which prevents infiltration of  fire, smoke, sound, drafts and light. Casing is available in four finishes and is custom cut to size.

Key Features of this Product Include:

Seal: Seal material is available in Sponge EPDM which is comparable to Sponge Neoprene, but is more ecofriendly and delivers overall better performance. Specifically, it has great sound control properties and is resistant to solvents.

Gasket is designed to seal gaps of 1/16", however it can seal up the depth of its seal.

Casing: The gasketing seal is housed in a high quality aluminum anodized or bronze casing which is surface mounted to the stop of the door. The casing is punched with elongated slots which allow for easy adjustments while installing. Casing has dimensions of .75" x .25" (3/4" x 1/4").

Compliance: This door gasket is rated for Fire, Smoke, Sound and Air Infiltration.

  • Fire, Smoke, Sound and Air Infiltration Rated
  • Sponge EPDM Seal
  • Header and Jamb Protection
  • Aluminum Anodized or Bronze Casing
  • Applied Onto Stop
  • Custom Cut to Size

Installation Guide and screws provided. Screws are colored to coordinate with color of casing.

A Note on Finishes: Bronze is a mill finish, sometimes referred to as Architectural Bronze. It is a solid bronze piece, which increases longevity and aesthetics, thus the large difference in price. It gets darker in color in time when exposed to the environment. Anodizing is an electrolytic process that applies a corrosion-resistant coating to the aluminum for longer wear and color maintenance.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our
Full Warranty Policy.

Click here to view all our available Bronze Door Gaskets.

Product Specs

Click to Print

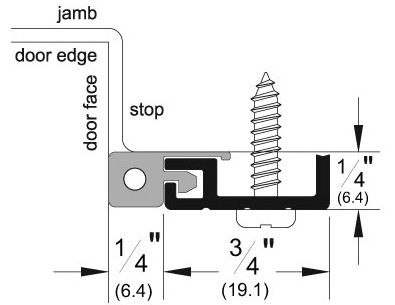

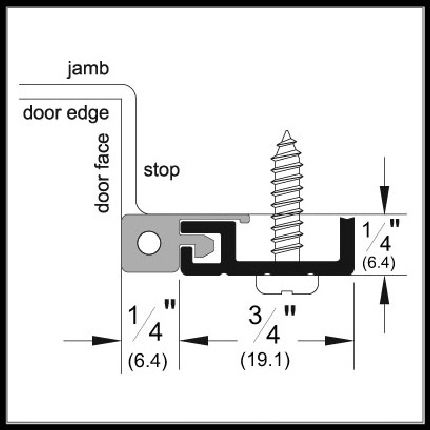

P312 Product Specs:

Product Specs of Door Gasket with Sponge EPDM Seal - P312

Installation

Click to Print



P312 Installation Guide:

Installation Guide for Door Gasket with Sponge EPDM Seal

Compliance Details

Click to View Ratings Explained

Compliance Details of Door Gasket with Sponge EPDM Seal


Finishes Comply with the Following ANSI / BHMA Codes:
  • Clear Anodized Aluminum - US28 / 628
  • Dark Bronze Anodized Aluminum - US10B / 710
  • Gold Anodized Aluminum - US4 / 688
  • Bronze Mill Finish (Brass) - US4 / 720
