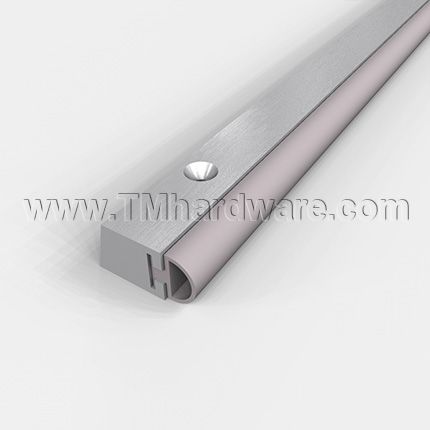

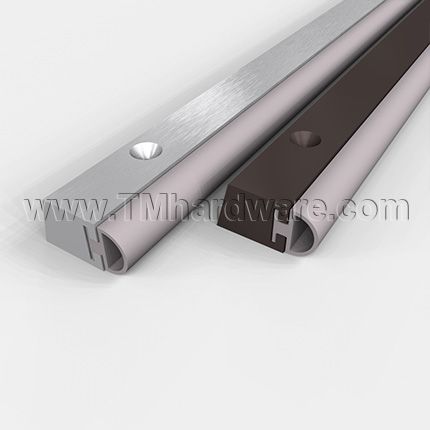

NGP 2 Threshold Stop Strips, Aluminum with Choice of Seals, .375" Height
NGP 2 Stop Strips are used in conjunction with standard utility thresholds or floor plates to provide a door stop and seal at the bottom of the door. These .375" tall Stop Strips are made of strong aluminum casing and a choice of seals. It comes in choice of two finishes and length is custom cut to size.
SOLD BY THE FOOT - See full product details and specs in the tabs below
NGP 2 Threshold Stop Strip Key Features:

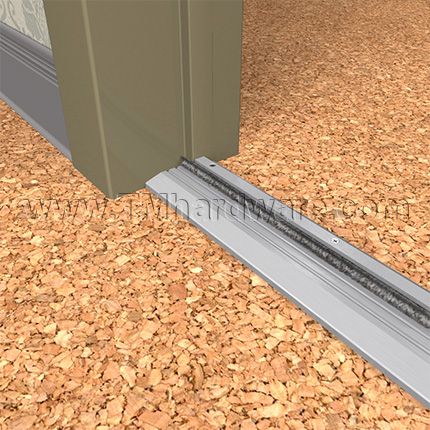

Works in conjunction with NGP utility thresholds to provide a seal against the door, providing weather resistance.
Material:Â Aluminum Alloy 6063, T5 Temper

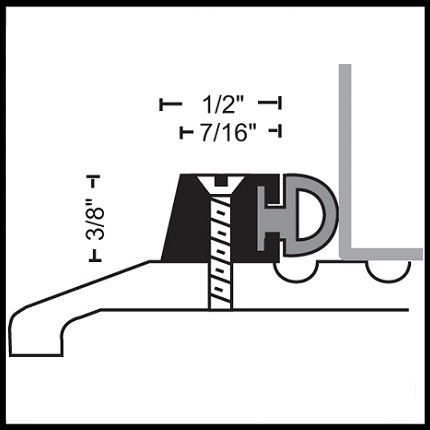

Width: .5" (1/2")
Height: .375" (3/8")
Length: Custom cut to size
Weight:Â .16 lbs./Ft.

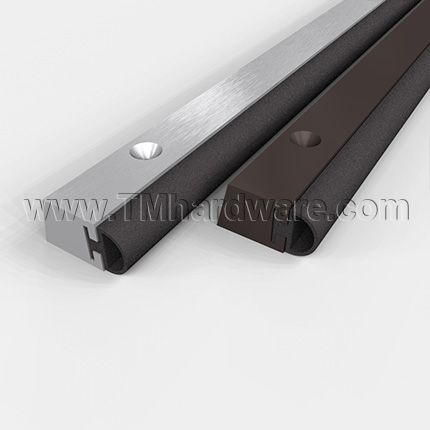

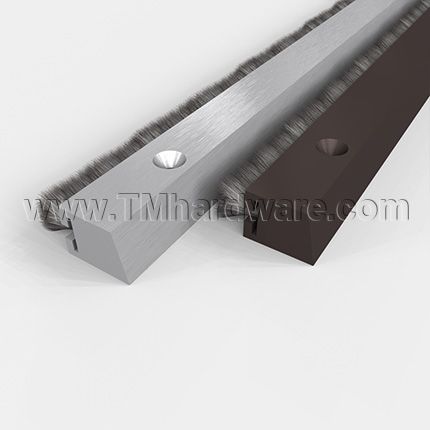

Inserts:Â Gray Vinyl, Black Silicone, Black NGP-TPV, Gray Pile
Rubber Seals: Silicone is the highest quality rubber and will hold up well in extreme conditions, particularly conditions with water. TVP Rubber is a regular duty rubber, which will perform well in applications that don't have a flux in weather, such as temperature controlled enviromnets or dry applications. Vinyl is the lowest grade rubber and will hold up for a year before becoming brittle, but it is the most economical option.

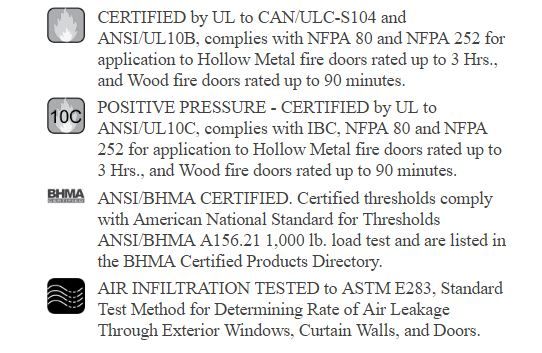

Compliance Details: UL Listed, ANSI/BHMA Certified, Air Infiltration Tested, Positive Pressure Certified.
Installation: See Installation Guide tab.
- #6 self-tapping machine screws provided.
Drilling: Threshold is drilled in standard factory locations.
Options (Can be purchased through our office at 845-388-1300): Available with Slip Resistant Textured Finish for thresholds up to 24".
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
For additional stop strips see our NGP 4 Threshold Stop Strips with Rubber Bumper, .25" Height
-
QuickShipNo
-
ManufacturerNational Guard Products
-
MPN2
-
Length12", 12.25", 12.5", 12.75", 13", 13.25", 13.5", 13.75", 14", 14.25", 14.5", 14.75", 15", 15.25", 15.5", 15.75", 16", 16.25", 16.5", 16.75", 17", 17.25", 17.5", 17.75", 18", 18.25", 18.5", 18.75", 19", 19.25", 19.5", 19.75", 20", 20.25", 20.5", 20.75", 21", 21.25", 21.5", 21.75", 22", 22.25", 22.5", 22.75", 23", 23.25", 23.5", 23.75", 24", 24.25", 24.5", 24.75", 25", 25.25", 25.5", 25.75", 26", 26.25", 26.5", 26.75", 27", 27.25", 27.5", 27.75", 28", 28.25", 28.5", 28.75", 29", 29.25", 29.5", 29.75", 30", 30.25", 30.5", 30.75", 31", 31.25", 31.5", 31.75", 32", 32.25", 32.5", 32.75", 33", 33.25", 33.5", 33.75", 34", 34.25", 34.5", 34.75", 35", 35.25", 35.5", 35.75", 36", 36.25", 36.5", 36.75", 37", 37.25", 37.5", 37.75", 38", 38.25", 38.5", 38.75", 39", 39.25", 39.5", 39.75", 40", 40.25", 40.5", 40.75", 41", 41.25", 41.5", 41.75", 42", 42.25", 42.5", 42.75", 43", 43.25", 43.5", 43.75", 44", 44.25", 44.5", 44.75", 45", 45.25", 45.5", 45.75", 46", 46.25", 46.5", 46.75", 47", 47.25", 47.5", 47.75", 48", 48.25", 48.5", 48.75", 49", 49.25", 49.5", 49.75", 50", 50.25", 50.5", 50.75", 51", 51.25", 51.5", 51.75", 52", 52.25", 52.5", 52.75", 53", 53.25", 53.5", 53.75", 54", 54.25", 54.5", 54.75", 55", 55.25", 55.5", 55.75", 56", 56.25", 56.5", 56.75", 57", 57.25", 57.5", 57.75", 58", 58.25", 58.5", 58.75", 59", 59.25", 59.5", 59.75", 60", 60.25", 60.5", 60.75", 61", 61.25", 61.5", 61.75", 62", 62.25", 62.5", 62.75", 63", 63.25", 63.5", 63.75", 64", 64.25", 64.5", 64.75", 65", 65.25", 65.5", 65.75", 66", 66.25", 66.5", 66.75", 67", 67.25", 67.5", 67.75", 68", 68.25", 68.5", 68.75", 69", 69.25", 69.5", 69.75", 70", 70.25", 70.5", 70.75", 71", 71.25", 71.5", 71.75", 72", 72.25", 72.5", 72.75", 73", 73.25", 73.5", 73.75", 74", 74.25", 74.5", 74.75", 75", 75.25", 75.5", 75.75", 76", 76.25", 76.5", 76.75", 77", 77.25", 77.5", 77.75", 78", 78.25", 78.5", 78.75", 79", 79.25", 79.5", 79.75", 80", 80.25", 80.5", 80.75", 81", 81.25", 81.5", 81.75", 82", 82.25", 82.5", 82.75", 83", 83.25", 83.5", 83.75", 84", 84.25", 84.5", 84.75", 85", 85.25", 85.5", 85.75", 86", 86.25", 86.5", 86.75", 87", 87.25", 87.5", 87.75", 88", 88.25", 88.5", 88.75", 89", 89.25", 89.5", 89.75", 90", 90.25", 90.5", 90.75", 91", 91.25", 91.5", 91.75", 92", 92.25", 92.5", 92.75", 93", 93.25", 93.5", 93.75", 94", 94.25", 94.5", 94.75", 95", 95.25", 95.5", 95.75", 96", 96.25", 96.5", 96.75", 97", 97.25", 97.5", 97.75", 98", 98.25", 98.5", 98.75", 99", 99.25", 99.5", 99.75", 100", 100.25", 100.5", 100.75", 101", 101.25", 101.5", 101.75", 102", 102.25", 102.5", 102.75", 103", 103.25", 103.5", 103.75", 104", 104.25", 104.5", 104.75", 105", 105.25", 105.5", 105.75", 106", 106.25", 106.5", 106.75", 107", 107.25", 107.5", 107.75", 108", 108.25", 108.5", 108.75", 109", 109.25", 109.5", 109.75", 110", 110.25", 110.5", 110.75", 111", 111.25", 111.5", 111.75", 112", 112.25", 112.5", 112.75", 113", 113.25", 113.5", 113.75", 114", 114.25", 114.5", 114.75", 115", 115.25", 115.5", 115.75", 116", 116.25", 116.5", 116.75", 117", 117.25", 117.5", 117.75", 118", 118.25", 118.5", 118.75", 119", 119.25", 119.5", 119.75", 120", 120.25", 120.5", 120.75", 121", 121.25", 121.5", 121.75", 122", 122.25", 122.5", 122.75", 123", 123.25", 123.5", 123.75", 124", 124.25", 124.5", 124.75", 125", 125.25", 125.5", 125.75", 126", 126.25", 126.5", 126.75", 127", 127.25", 127.5", 127.75", 128", 128.25", 128.5", 128.75", 129", 129.25", 129.5", 129.75", 130", 130.25", 130.5", 130.75", 131", 131.25", 131.5", 131.75", 132", 132.25", 132.5", 132.75", 133", 133.25", 133.5", 133.75", 134", 134.25", 134.5", 134.75", 135", 135.25", 135.5", 135.75", 136", 136.25", 136.5", 136.75", 137", 137.25", 137.5", 137.75", 138", 138.25", 138.5", 138.75", 139", 139.25", 139.5", 139.75", 140", 140.25", 140.5", 140.75", 141", 141.25", 141.5", 141.75", 142", 142.25", 142.5", 142.75", 143", 143.25", 143.5", 143.75", 144"
-
Seal TypeVinyl, Silicone, NGP-TPV, Pile
- Finishes
-

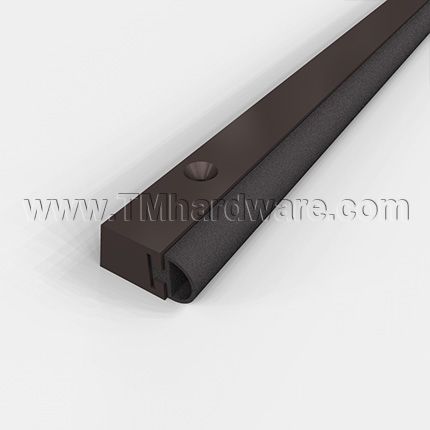

FinishMill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
-
