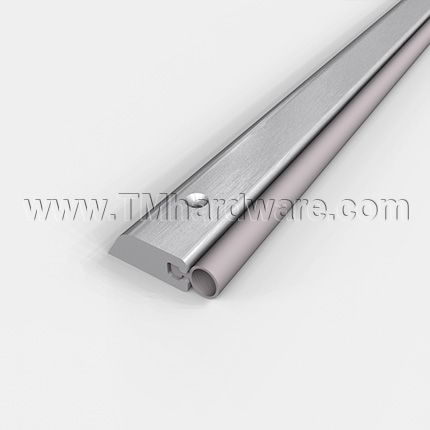

NGP 4 Threshold Stop Strips, Aluminum with Choice of Seals, .25" Height

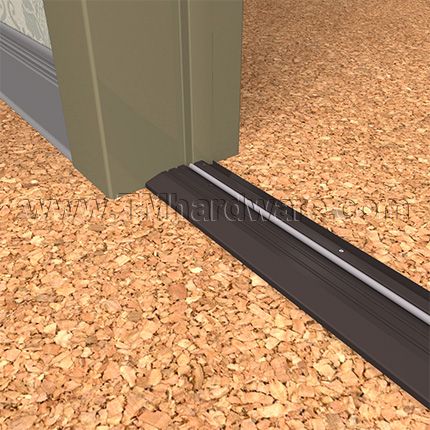

NGP 4 Stop Strips are used in conjunction with standard utility thresholds or floor plates to provide a door stop and seal at the bottom of the door. These .25" tall Stop Strips are made of strong aluminum casing and a choice of seals. It comes in choice of two finishes and length is custom cut to size.

SOLD BY THE FOOT - See full product details and specs in the tabs below

See tabs below for additional information

Finish
Length
Size (Inches)

Quantity

Add to compare

NGP 4 Threshold Stop Strip Key Features:

Works in conjunction with NGP utility thresholds to provide a seal against the door, providing weather resistance.

Material: Aluminum Alloy 6063, T5 Temper

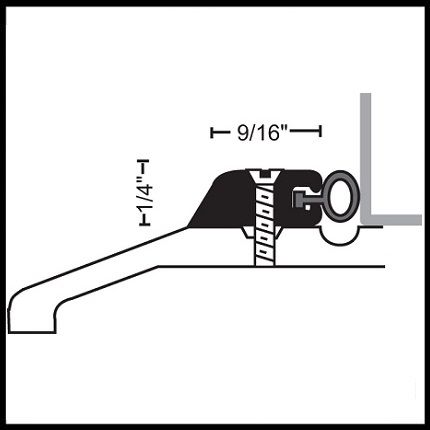

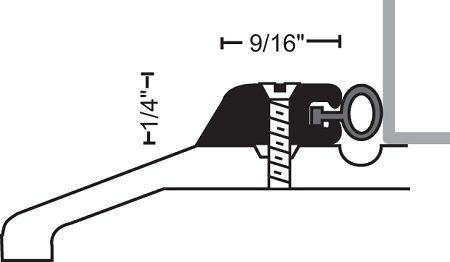

Width: .5625" (9/16")

Height: .25" (1/4")

Length: Custom cut to size

Weight: .14 lbs./Ft.

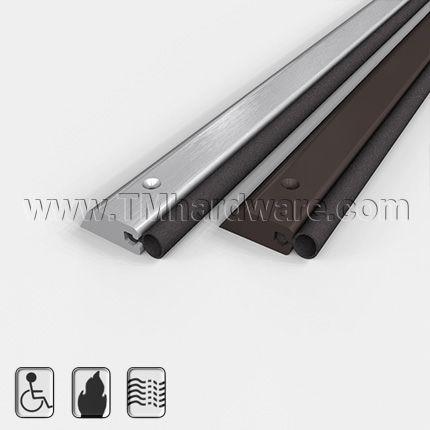

Inserts: Gray Vinyl, Black Silicone, Black NGP-TPV

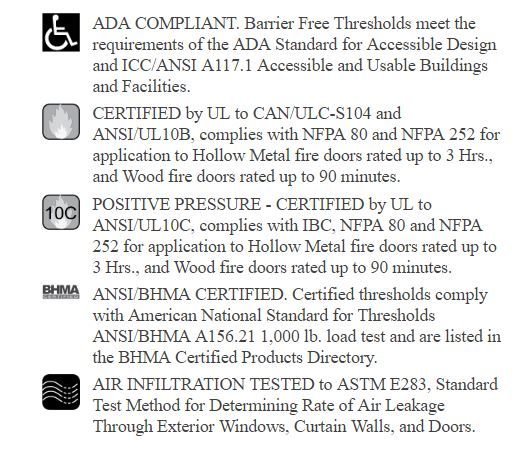

Compliance Details: ADA Compliant, UL Listed, ANSI/BHMA Certified, Air Infiltration Tested, Positive Pressure Certified.

Installation: See Installation Guide tab.

#6 self-tapping machine screws provided.

Drilling: Threshold is drilled in standard factory locations.

Options (Can be purchased through our office at 845-388-1300): Available with Slip Resistant Textured Finish for thresholds up to 24".

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

For additional threshold stop strips see our NGP 700EV Threshold Stop Strip, Aluminum with Vinyl Seal, .25" Height

- SKU
  NG4V
QuickShip
No
Manufacturer
National Guard Products
MPN
4
Length
12", 12.25", 12.5", 12.75", 13", 13.25", 13.5", 13.75", 14", 14.25", 14.5", 14.75", 15", 15.25", 15.5", 15.75", 16", 16.25", 16.5", 16.75", 17", 17.25", 17.5", 17.75", 18", 18.25", 18.5", 18.75", 19", 19.25", 19.5", 19.75", 20", 20.25", 20.5", 20.75", 21", 21.25", 21.5", 21.75", 22", 22.25", 22.5", 22.75", 23", 23.25", 23.5", 23.75", 24", 24.25", 24.5", 24.75", 25", 25.25", 25.5", 25.75", 26", 26.25", 26.5", 26.75", 27", 27.25", 27.5", 27.75", 28", 28.25", 28.5", 28.75", 29", 29.25", 29.5", 29.75", 30", 30.25", 30.5", 30.75", 31", 31.25", 31.5", 31.75", 32", 32.25", 32.5", 32.75", 33", 33.25", 33.5", 33.75", 34", 34.25", 34.5", 34.75", 35", 35.25", 35.5", 35.75", 36", 36.25", 36.5", 36.75", 37", 37.25", 37.5", 37.75", 38", 38.25", 38.5", 38.75", 39", 39.25", 39.5", 39.75", 40", 40.25", 40.5", 40.75", 41", 41.25", 41.5", 41.75", 42", 42.25", 42.5", 42.75", 43", 43.25", 43.5", 43.75", 44", 44.25", 44.5", 44.75", 45", 45.25", 45.5", 45.75", 46", 46.25", 46.5", 46.75", 47", 47.25", 47.5", 47.75", 48", 48.25", 48.5", 48.75", 49", 49.25", 49.5", 49.75", 50", 50.25", 50.5", 50.75", 51", 51.25", 51.5", 51.75", 52", 52.25", 52.5", 52.75", 53", 53.25", 53.5", 53.75", 54", 54.25", 54.5", 54.75", 55", 55.25", 55.5", 55.75", 56", 56.25", 56.5", 56.75", 57", 57.25", 57.5", 57.75", 58", 58.25", 58.5", 58.75", 59", 59.25", 59.5", 59.75", 60", 60.25", 60.5", 60.75", 61", 61.25", 61.5", 61.75", 62", 62.25", 62.5", 62.75", 63", 63.25", 63.5", 63.75", 64", 64.25", 64.5", 64.75", 65", 65.25", 65.5", 65.75", 66", 66.25", 66.5", 66.75", 67", 67.25", 67.5", 67.75", 68", 68.25", 68.5", 68.75", 69", 69.25", 69.5", 69.75", 70", 70.25", 70.5", 70.75", 71", 71.25", 71.5", 71.75", 72", 72.25", 72.5", 72.75", 73", 73.25", 73.5", 73.75", 74", 74.25", 74.5", 74.75", 75", 75.25", 75.5", 75.75", 76", 76.25", 76.5", 76.75", 77", 77.25", 77.5", 77.75", 78", 78.25", 78.5", 78.75", 79", 79.25", 79.5", 79.75", 80", 80.25", 80.5", 80.75", 81", 81.25", 81.5", 81.75", 82", 82.25", 82.5", 82.75", 83", 83.25", 83.5", 83.75", 84", 84.25", 84.5", 84.75", 85", 85.25", 85.5", 85.75", 86", 86.25", 86.5", 86.75", 87", 87.25", 87.5", 87.75", 88", 88.25", 88.5", 88.75", 89", 89.25", 89.5", 89.75", 90", 90.25", 90.5", 90.75", 91", 91.25", 91.5", 91.75", 92", 92.25", 92.5", 92.75", 93", 93.25", 93.5", 93.75", 94"
Finishes
- Finish

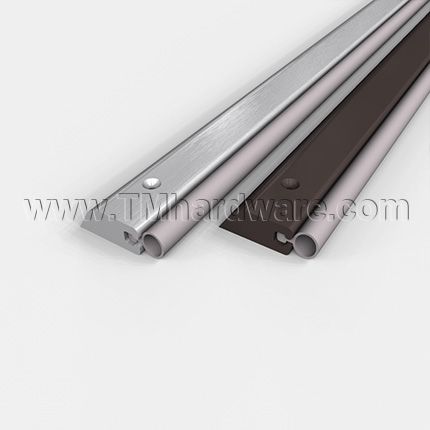

  Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)

Click to Print

Click to Print Installation Guide

Mill Aluminum complies with ANSI/BHMA US27 / 627
