Pemko #1842 Threshold Stop Strips, Aluminum with Choice of Seals, 1” W, .25” H
Stop Strips are often used with standard saddle thresholds or floor plates to provide a doorstop and seal at the bottom of the door. These 1.00” wide Stop Strips are made of the strong aluminum casing and a choice of either Silicone or PemkoPrene™ ring-shaped seal. Fire-rated and ADA compliant. Length is custom cut to size.
SOLD BY THE FOOT
Threshold Stop Strips can be installed on top of standard saddle thresholds and floor plates to improve the sealing efficiency of a door. The rubber seal inhibits the infiltration of drafts, fire, sound, light, moisture, and insects under the door. These strips also provide door stop for the door to close against. Fire rated and handicap accessible.
Key features of this product include:

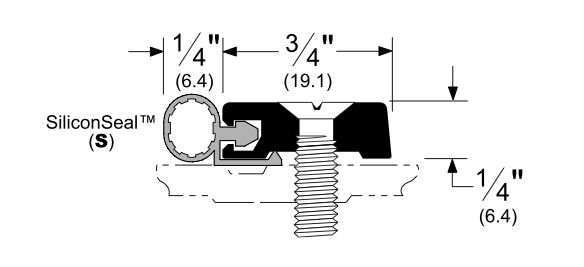

Dimensions: The aluminum casing measures only .75” wide with the compressible rubber seal extending an additional .25” (see product specs). The strip is .25” tall.
ADA Compliance: To maintain ADA Compliance rating, use in conjunction with a .25” H saddle threshold, so that the cumulative height does not exceed .5” (see product specs and detailed images).
Energy Conservation: A proper door seal prevents the passage of outside drafts beneath the door, which significantly reduces energy waste and lowers the cost of cooling and heating.
Aluminum Finish: Available in aluminum mill finish, dark bronze anodized aluminum, and gold anodized aluminum.
Seal: The rubber ring-shaped seal can be made of either PemkoPrene™ or silicon. PemkoPrene™, also referred to as “SantoPrene”, possesses the same flexibility and durability common to natural rubber compounds. Additionally, PEMKO has selected these materials because of their outstanding resistance to cleaning fluids and disinfectants as well as for their everyday resilience and low impedance to opening or closing requirements on door assemblies.
Silicone Rubber is generally non-reactive, stable, and resistant to extreme environments and temperatures. It does not become brittle and hard in the cold or very soft in the heat. This material has excellent resistance to sunlight, weather, ozone, oxidization, and water, and flame.
- Fire rated
- ADA Compliant with .25” H saddle.
- Stop Strips improve weather seal
- Strong Aluminum casing
- Available in aluminum mill finish and two anodized finishes
- Durable PemkoPrene™ or Silicone seal
- Length is custom cut to size
Installation guide and screws provided. Screws are colored to blend unobtrusively with the casing.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
For a wider option, please check out our Threshold Stop Strips, Aluminum with Choice of Seals, 1.5" W, .25” H
For a utility threshold with a low height, see our Utility Threshold, 8" Bronze, Aluminum, and Anodized with .25" Height
-
QuickShipNo
-
ManufacturerPemko Manufacturing
-
MPN1842
- Dimensions
-
Overall Height.25" Height
-
Overall Width1" Width
-
Threshold LengthCustom Cut to Size
-
- Product Design
-
Flat Saddle DesignFluted (Grooved) Design
-
Threshold TypeThreshold Stop Strip
-
Seal TypePemkoPrene® Seal, Silicone Seal
-
MaterialAluminum
-
- Installation
-
FastenersFasteners Provided
-
- Finishes
-
FinishMill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
-
- Compliance Details
-
Compliance DetailsFire Rated, ADA Compliant, Air Infiltration Rated
-
Warranty5 Year Limited Warranty
-
