Deltana Interconnected Grade 2 Deadbolt with Claredon Lever, Steel / Zinc
Deltana CL300ILC Handlesets are part of Deltana's Commercial Locks with ANSI Grade 2 Certification. Designed with a Claredon Lever on interior and exterior with Schalge C Single Cylinder Deadbolt on the exterior. Made of steel with zinc levers and available in a selection of finishes.
PRICED PER PIECE - See full product details and specs in the tabs below

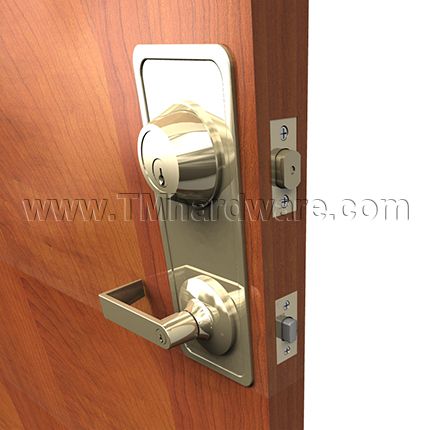

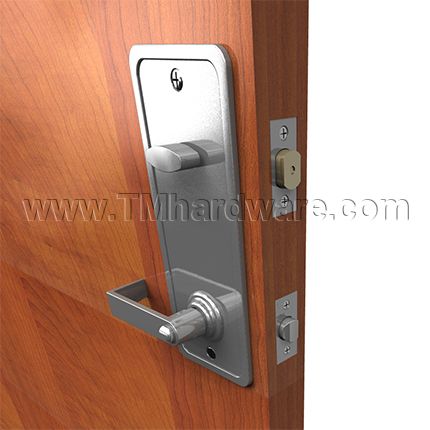

Deltana CL300ILC and CL308ILC Interconnected Door Lock and with Claredon Lever

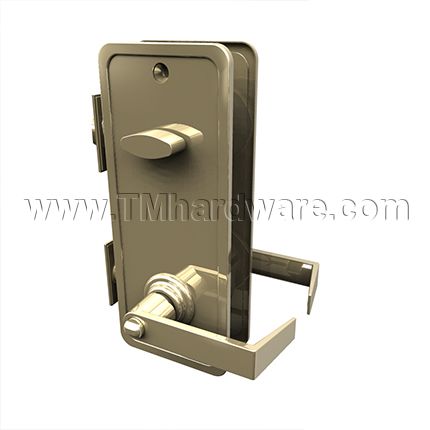

Function: CL300ILC Single Cylinder Entry Lock with Lever, locks and unlocks with a key on the outside and thumbturn on the inside in both the door lock and door lever.

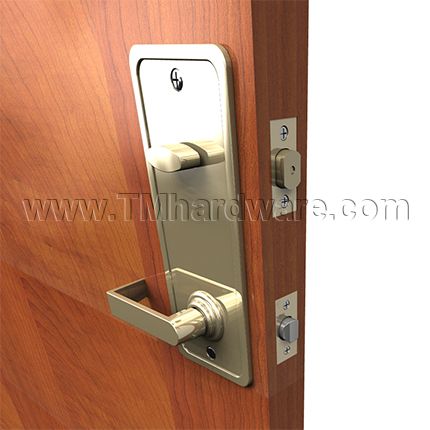

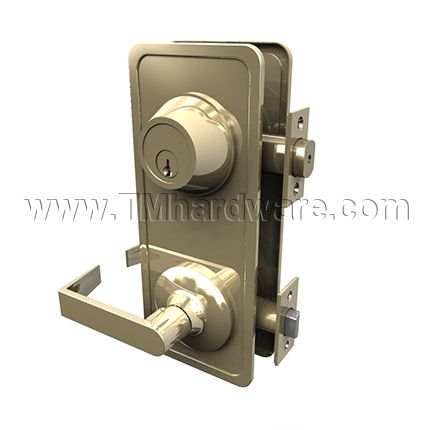

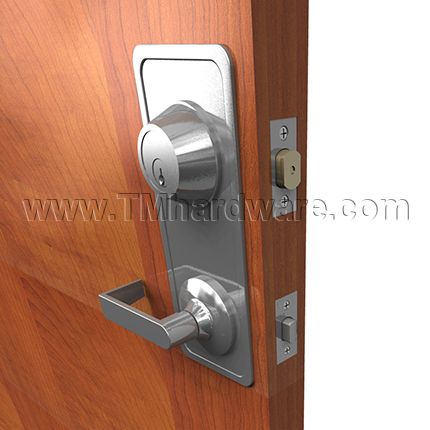

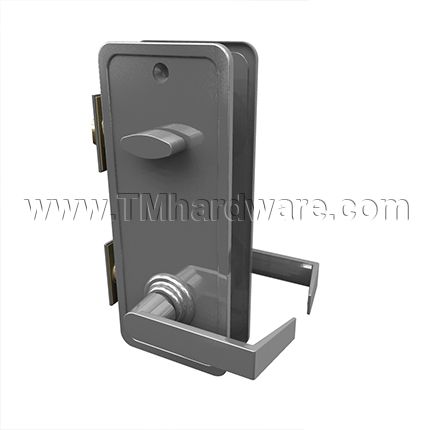

CL308ILC Single Cylinder Passage Lock with Lever, locks and unlocks with a key on the outside in both the door lock and lever. Locks and unlocks on the door lever with a thumbturn on the inside.
Design: Claredon Door Lever with interconnected door lock. Grade 2. For 1-3/8"-2" thick doors. Schlage "C" compatible keyway.
Specifications: Strike plate and latch included.
Handing: Universal handing
Material: Steel/Zinc

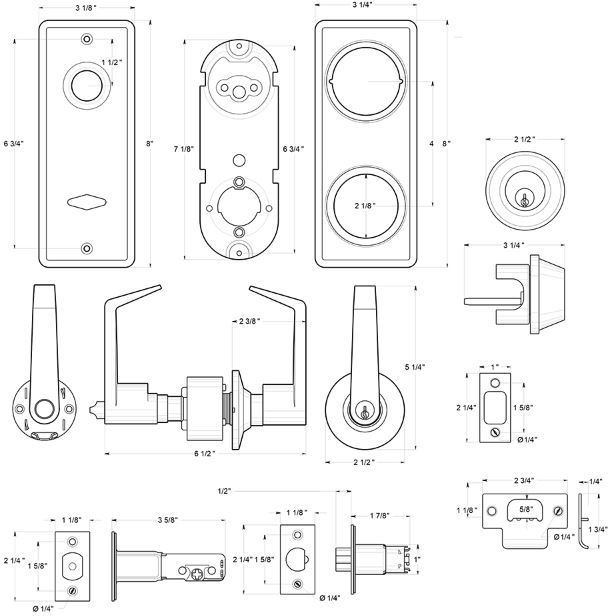

Dimensions: Lever- 2-1/2" x 5 1/4"
Lever projection- 2- 3/8"
Backset: 2 3/4"
Door Thickness: 1-3/8"-2"
Plate Dimensions: 3 1/4" x 8"
See Product Data Tab for additional information

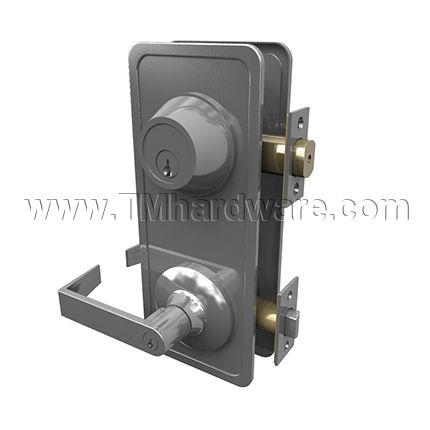

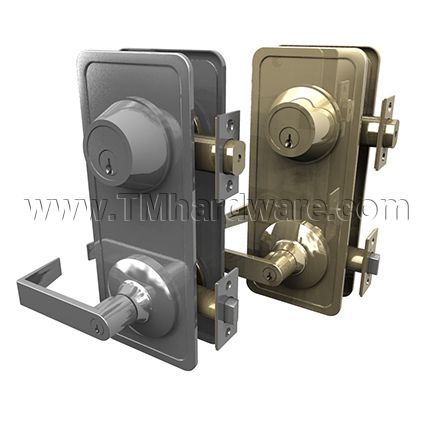

Available Finishes: Polished Brass: US3, Brushed Chrome: US26D
Priced per piece
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.
Click to view our Deltana KA7312 Double Cylinder Deadbolt.
-
QuickShipYes
-
ManufacturerDeltana Hardware
-
MPNCL300ILC; CL308ILC
-
FunctionEntry #CL300ILC, Passage#CL308ILC
- Finishes
-
FinishSatin Chrome (US26D), Polished Brass (US3)
-
Click to print Deltana CL300ILC Interconnected Entry Door Lock and Lever
Click to print Deltana CL308ILC Interconnected Passage Door Lock and Lever
