Deltana, 4 Ball Bearings, Brass, Extra Heavy Weight, 5 Knuckle, Full Mortise Hinge, 5" x 5"
Deltana DSB55B is a Full Mortise, 5 Knuckle, 4 Ball Bearings Hinge, and is made of Solid Brass. Size of hinge is 5" x 5" with Square corners and Button Tip Finials. Available in choice of finishes.
PRICED PER PAIR - See full product details and specs in the tabs below
Deltana DSB55B is a Full Mortise, 5 Knuckle, 4 Ball Bearings Hinge, and is made of Solid Brass. Size of hinge is 5" x 5" with Square corners and Button Tip Finials. Available in choice of finishes.
Available Finishes: See options above, see Deltana Hinges Color Chart for a detailed list of all Deltana Finishes.
Finials: Button Tip Provided. See the additional Finial options available.
Priced Per Pair
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year warranty against defects in material and workmanship
Click to see our Full Warranty Policy.
For additional hinges, see our Deltana Full Mortise, Plain Bearing Square Hinge, 5" x 5" DSB55
-
QuickShipYes
-
ManufacturerDeltana Hardware
-
MPNDSB55B
- Product Design
-
Hinge CategoryFull Mortised Hinge
-
Base MaterialBrass
-
Usage LevelExtra Heavy Duty
-
ThrowStandard Throw
-
Bearing TypeBall Bearing
-
Knuckles5 Knuckle Hinge
-
Pin TypeStandard Hinge Pin, Non-Removeable Pin (NRP)
-
Hinge Tip TypeButton Tip
-
Hinge CornerSquare Corner
-
Hole PatternCommercial "C" Pattern
-
Number of Holes8 Holes
-

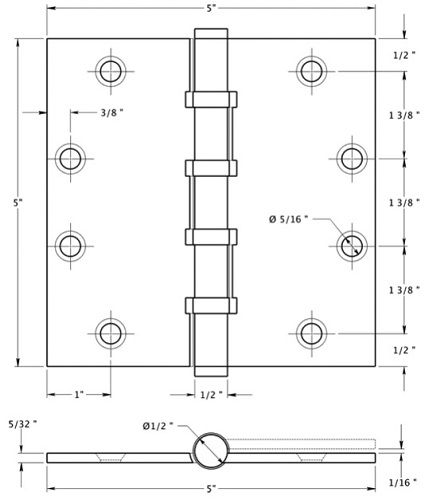

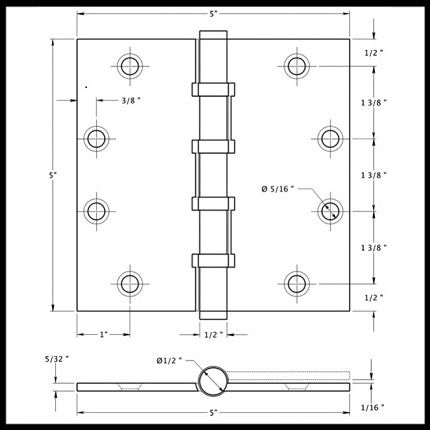

- Dimensions
-
Hinge Size5" x 5"
-
Hinge Thickness.150" Thick
-
- Installation
-
Door TypeWooden Door, Metal Door
-
Installation ScrewsMachine Screw: #12x 1/2"
Wood Screw: #12x 1-1/4"
-
- Finishes
-
FinishPolished Brass (US3), Unlacquered Brass (US3NL), Antique Brass (US5), Oil Rubbed Bronze (US10B), Polished Nickel (US14), Satin Nickel (US15), Antique Nickel (US15A), Flat Black (US19), Polished Chrome (US26), Satin Chrome (US26D), PVD Polished Brass
-
- Compliance Details
-
Warranty1 Year Limited Warranty
-
