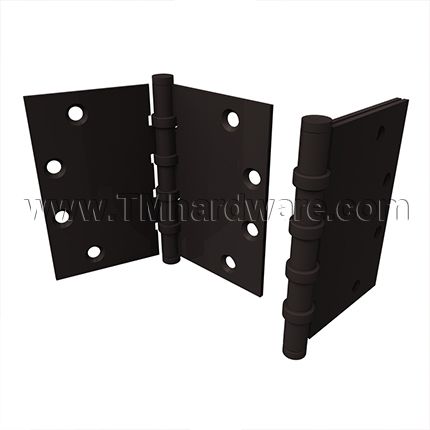

Deltana, 4 Ball Bearings, Brass, Extra Heavy Weight, 5 Knuckle, Full Mortise, Wide Throw Hinge, 4.5" x 6"
Deltana DSB4560BB is a Full Mortise, 5 Knuckle, 4 Ball Bearings Hinge, and is made of Solid Brass. Size of hinges is 4-1/2" x 6" with Square corners and Button Tip Finials. Available in choice of finishes.
PRICED PER PAIR - See full product details and specs in the tabs below
Deltana DSB4560BB is a Full Mortise, 5 Knuckle, 4 Ball Bearings Hinge, and is made of Solid Brass. Size of hinges is 4-1/2" x 6" with Square corners and Button Tip Finials. Available in choice of finishes.
Available Finishes: See options above, see Deltana Hinges Color Chart for a detailed list of all Deltana Finishes.
Finials:Â Button Tip Provided. See the additional Finial options available.
Priced Per Pair
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year warranty against defects in material and workmanship
 Click to see our Full Warranty Policy.
For larger hinges, see our Deltana Full Mortise, 4 Ball Bearing Square Hinge, 5" x 5" DSB55B
-
QuickShipYes
-
ManufacturerDeltana Hardware
-
MPNDSB4560BB
- Product Design
-
Hinge CategoryFull Mortised Hinge
-
Base MaterialBrass
-
Usage LevelExtra Heavy Duty
-
ThrowWide Throw
-
Bearing TypeBall Bearing
-
Knuckles5 Knuckle Hinge
-
Pin TypeStandard Hinge Pin
-
Hinge Tip TypeButton Tip
-
Hinge CornerSquare Corner
-
Hole PatternCommercial "C" Pattern
-
Number of Holes8 Holes
-
- Dimensions
-

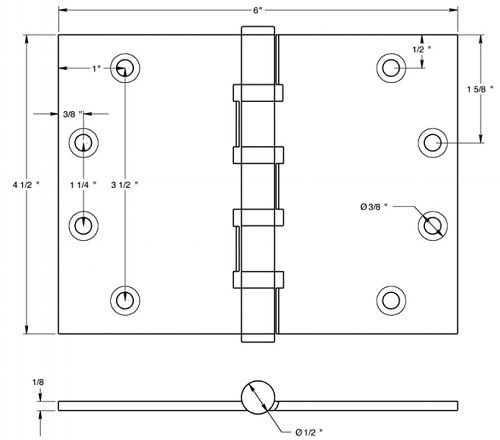

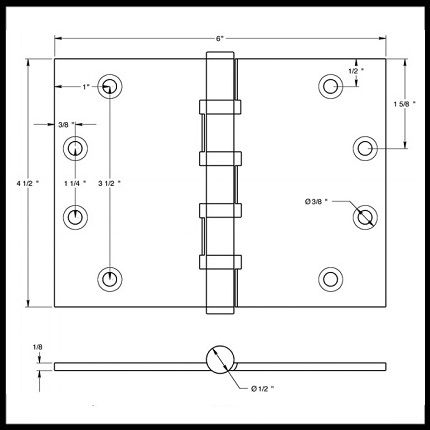

Hinge Size4-1/2" x 6"
-
Hinge Thickness.137" Thick
-
- Installation
-

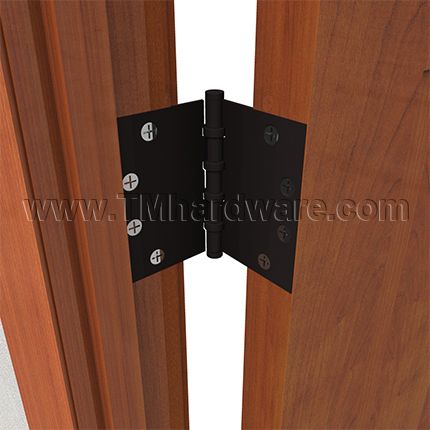

Door TypeWooden Door, Metal Door
-
Installation ScrewsWooden Screws #12x1-1/2", Machine Screw #12x1/2"
-
- Finishes
-
FinishOil Rubbed Bronze (US10B), PVD Polished Brass
-
- Compliance Details
-
Warranty1 Year Limited Warranty
-
