Zero #539 Door Bottom, 1" Aluminum with 1.034" Solid Neoprene Seal, .314" Thick

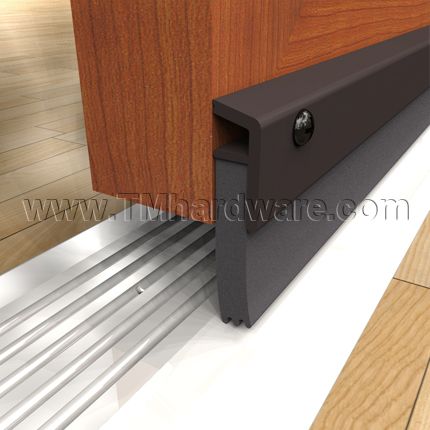

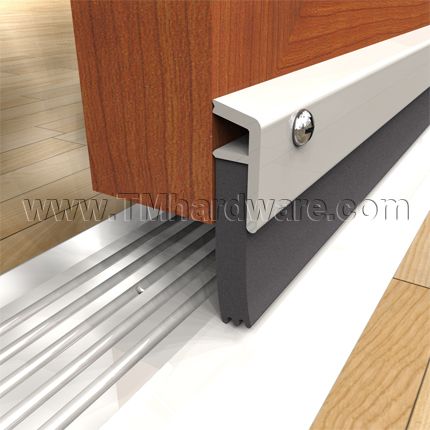

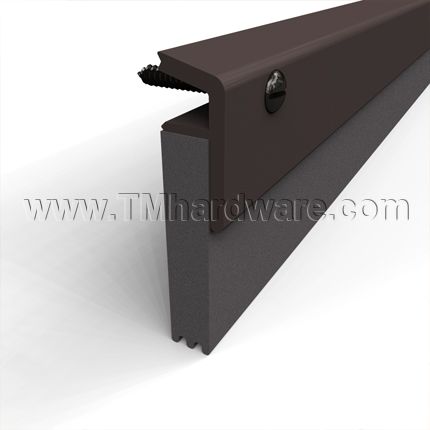

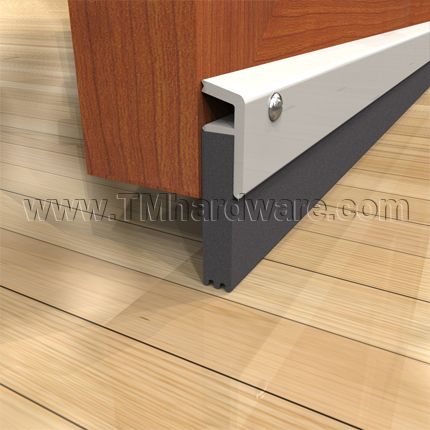

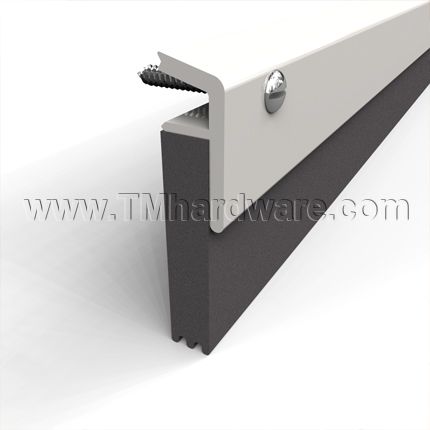

This Zero #539 aluminum casing door bottom is fitted with a smoke rated, approx. 1" solid neoprene extrusion. Casing is surface applied to create a seal between the door bottom and threshold / floor surface. Available in options of finishes and length is custom cut to size.

SOLD BY THE FOOT.

See tabs below for additional information

Finish
Length

Quantity

Add to compare

This door bottom is surface applied to create a proper seal between the door bottom and threshold / floor surface and minimize infiltration of dust, drafts, light, sound and smoke. It is fitted with a smoke rated .314” thick solid neoprene extrusion which can seal gaps up to 1.034".

Encased in a high quality sleek 1" aluminum casing, it is sure to be long-lasting and will provide ongoing superior performance and will not impede on proper operation of the door. Casing is anodized for enhanced color which will not fade, even through constant usage.

This product can be used directly over the floor surface, however, for ultimate sealing performance, It is recommended that this product be used in conjunction with a Doorway Saddle.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year warranty against defects in material and workmanship.
Click here to view our full Warranty Policy.

Click here to return to our Surface Mounted Rubber Door Bottoms.

- SKU
  ZR539AA
QuickShip
No
Manufacturer
Zero International
MPN
539
About this Product
- Door Shoe Retainer Material
  Aluminum
- Door Type
  Wooden Door, Metal Door
- Seal Type
  Neoprene Rubber Seal
- Mounting
  Surface Mounted

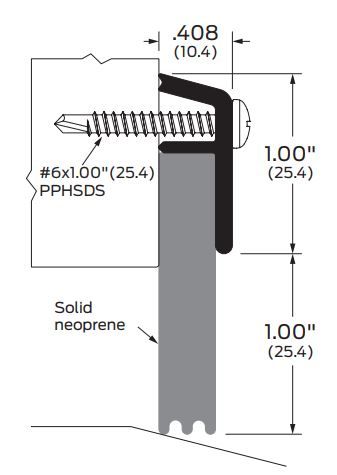

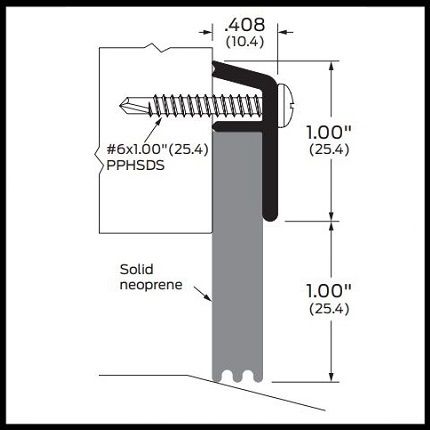

Dimensions
- Seal Height
  1" Height
- Total Height
  2" Height
- Additional Dimensions
  Door seal is .408" thick
- Length
  Custom Cut to Size
Installation
- Drill Holes
  Drill holes are provided
- Installation Screws
  #6 x 1.00" (25.4) PPHSDS Provided
Finishes
- Finish
  Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313)

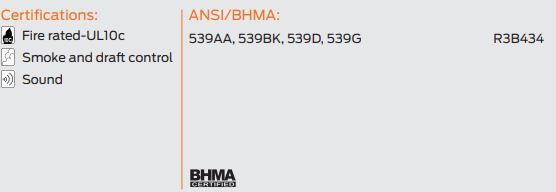

Compliance Details
- Compliance Details
  Smoke Rated, Fire Rated, Sound Rated
- ANSI Designation
  R3B434
- Warranty
  1 Year Limited Warranty
