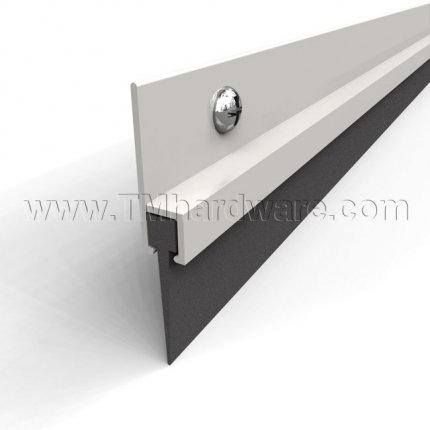

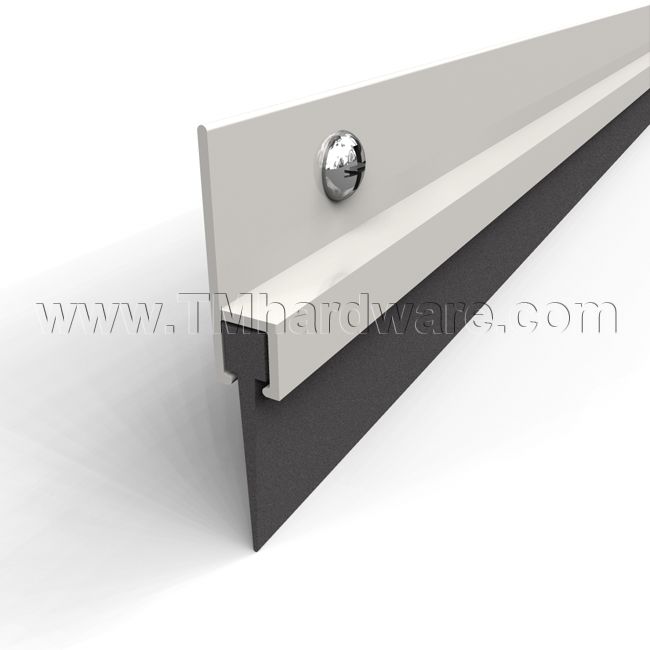

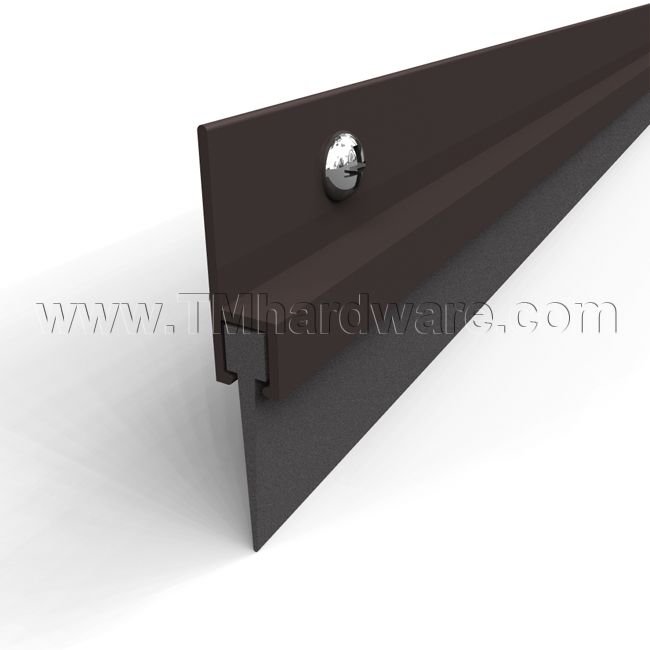

Zero #8191 Door Bottom, Aluminum Casing with .813" Neoprene Lip

This Zero #8191 surface mounted door bottom is fitted with a high quality neoprene extrusion that will seal a gap up to .813" between your door and floor, it will also provide protection from smoke. Available in various aluminum anodized finishes and is custom cut to size.

SOLD BY THE FOOT

See tabs below for additional information

Finish
Length

Quantity

Add to compare

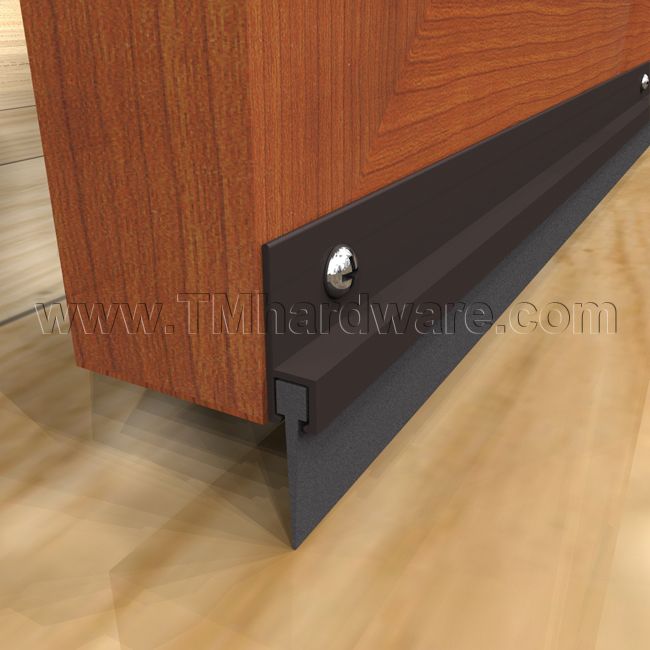

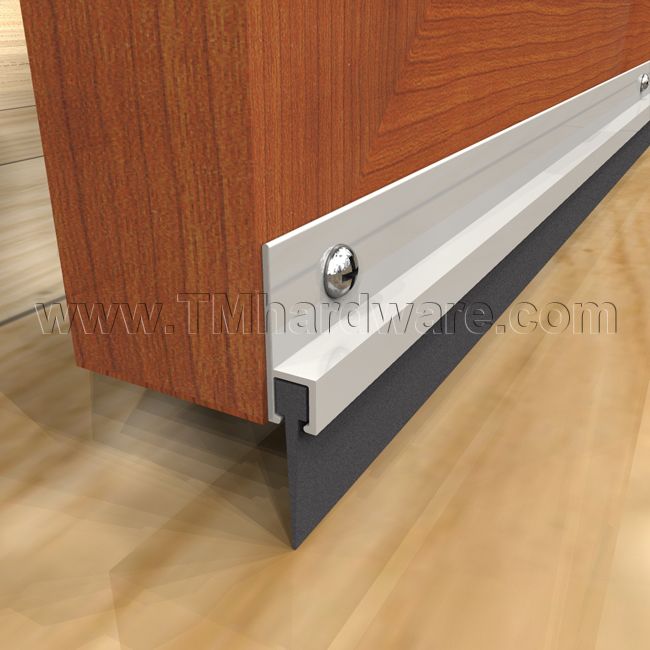

This smoke rated door bottom is built to last. It is crafted from high quality material that will not lend itself to wear. It is fitted with a durable neoprene extrusion which can fill a gap up to .813" to create a seal between a door and the floor. Its sleek aluminum anodized case is surface mounted to the door.

Installation instructions and screws provided.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 1 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.

Click here to return to our door seals homepage.

- SKU
  ZR8191AA
QuickShip
No
Manufacturer
Zero International
MPN
8191
About this Product
- Door Shoe Retainer Material
  Aluminum
- Door Type
  Wooden Door, Metal Door
- Seal Type
  Neoprene Rubber Seal
- Mounting
  Surface Mounted

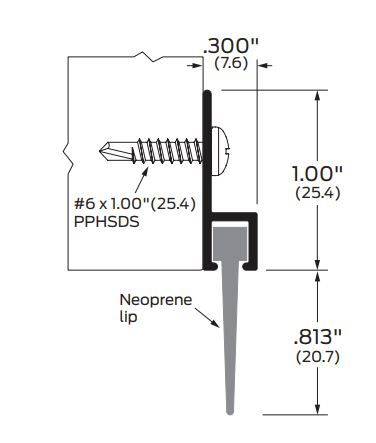

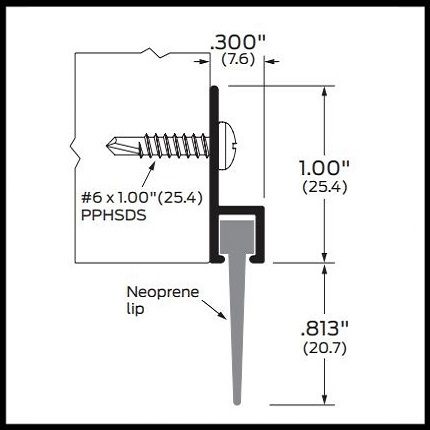

Dimensions
- Seal Height
  .813" Height
- Total Height
  1.83" Height
- Additional Dimensions
  Door seal is .3" thick
Installation
- Drill Holes
  Drill holes are provided
- Installation Screws
  #6 x 1.00" (25.4) PPHSDS Provided
Finishes
- Finish
  Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), Gold Anodized Aluminum, Flat Black (US19)

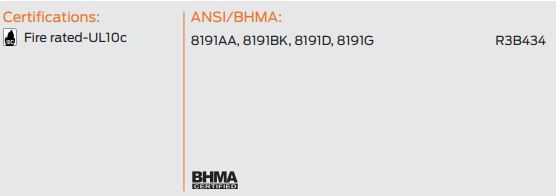

Compliance Details
- Compliance Details
  Fire Rated, BHMA Certified
- ANSI Designation
  R3B434
- Warranty
  1 Year Limited Warranty

Click to Print

product specs

Click to Print

compliance details
