Pemko #321SSN Door Bottom, Stainless Steel with .56" Neoprene Seal
This door bottom is fitted with a .562" (9/16”) neoprene extrusion which is smoke, fire and air infiltration rated. It has a .938” stainless steel casing which is surface applied to create a seal between the door bottom and floor surface. Made of high quality material that will last through many usages.
PRICED PER FOOT.

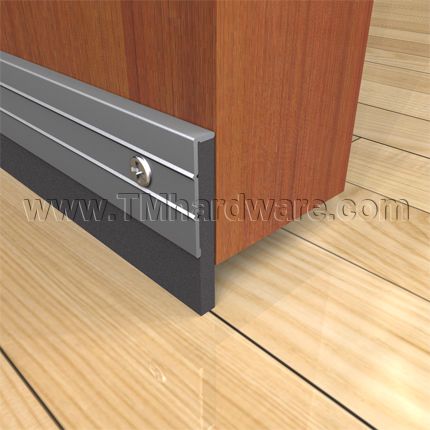

This door bottom sweep is surface applied to the bottom of the door to seal the gap between the door bottom and floor surface. It has a .938” (15/16") casing which is fitted with a .562” (9/16”) fire, smoke and air infiltration rated neoprene extrusion. The seal is made of high quality, dense material which will provide ongoing superior performance and will not impede operation of door.
Retainer is made of high quality stainless steel which does not corrode, rust or stain as ordinary steel does. Stainless steel is a low maintenance material and its luster appearance makes it an aesthetically appealing product. It has a sleek design which is great for homes, offices and upscale facilities.

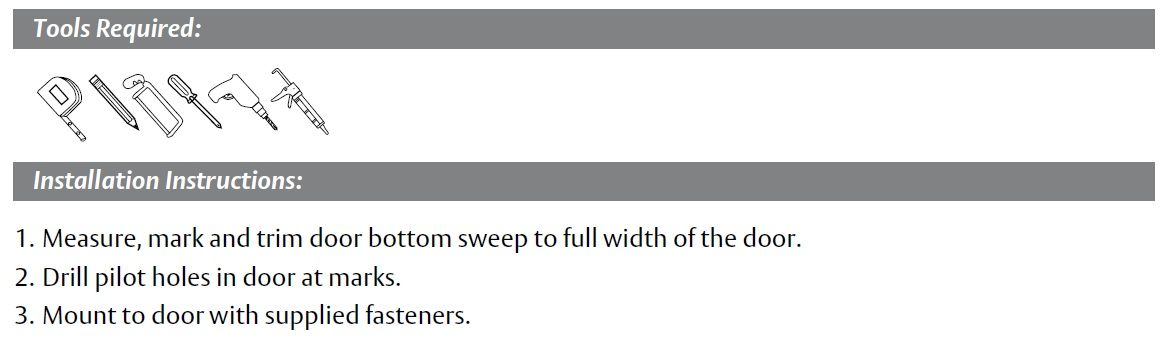

Installation instructions and screws provided.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our full Warranty Policy.
If a larger seal is required, see our Stainless Steel Door Bottom with 1.375" Neoprene.
-
QuickShipNo
-
ManufacturerPemko Manufacturing
-
MPN321SSN
- About this Product
-
Door Shoe Retainer MaterialStainless Steel
-
Door TypeWooden Door, Metal Door
-
Seal TypeNeoprene Rubber Seal
-
MountingSurface Mounted
-
- Dimensions
-

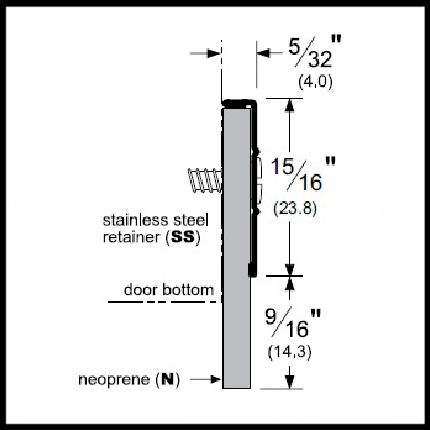

Seal Height9/16" Height
-
Total Height1-1/2" Height
-
Additional DimensionsDoor seal is 5/32" thick
-
LengthCustom Cut to Size
-
- Installation
-
Drill HolesDrill holes are provided
-
- Finishes
-
FinishFlat Black (US19)
-
- Compliance Details
-
Compliance DetailsFire Rated, Smoke Rated, Air Infiltration Rated, BHMA Certified, UL Classified
-
ANSI DesignationR5B165
-
Warranty5 Year Limited Warranty
-
Click to View Ratings Explained
- Stainless Steel (Polished): US32D / 63
