Pemko #412 Automatic Door Bottom, Aluminum, Bronze or Stainless Steel with Choice of Rubber Seal, .75" Drop
This decorative surface mounted Automatic Door Bottom lowers a rubber seal when the door is closed for light and sound reduction as well as smoke and fire protection. Sponge EPDM, Silicone and PemkoPrene Rubber inserts are available, custom cut to lengths. Aesthetic casing is available in various finishes.
PRICED PER ITEM
To determine sizing, see How to Measure for Automatic Door Bottom.
This decorative surface mounted Automatic Door Bottom lowers a rubber seal when the door is closed for light and sound reduction as well as smoke and fire protection.
Seals: Available with a PemkoPrene™, Sponge EPDM and Sponge Silicone insert.
- EPDM is comparable to Sponge Neoprene, though has significantly better performance and is more environmentally friendly! It has great sound control properties and is resistant to solvents.
- PemkoPrene has a multi-point contact design and is great for uneven surfaces such as a tiled floor or carpet. Due to the way PemkoPrene™ is manufactured, it is not as firm as sponge silicone and allows for more leniencies.
- Sponge Silicone has great overall performance, except in the area of soundproofing. All three options remain effective in a wide range of temperatures and can be used on external doors.
Insert Replacement: This seal is designed to last through much usage, however if necessary a replacement seal can be purchased - see our Sponge Rubber Replacement for Pemko #412
Handing: This is supplied for Left Handed Doors. Handing can be reversed in the field, see installation guide. See How to Determine Handing / Swing of Door.
Installation: Installation instructions, screws and end plate included. Screws are colored to coordinate with casing.

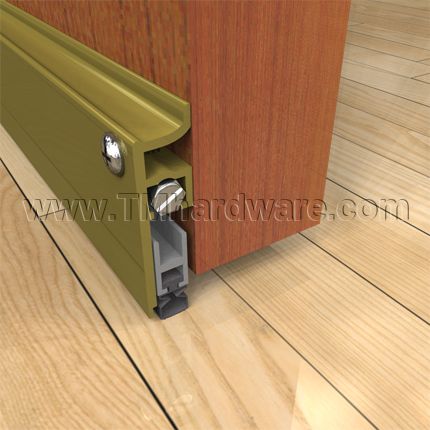

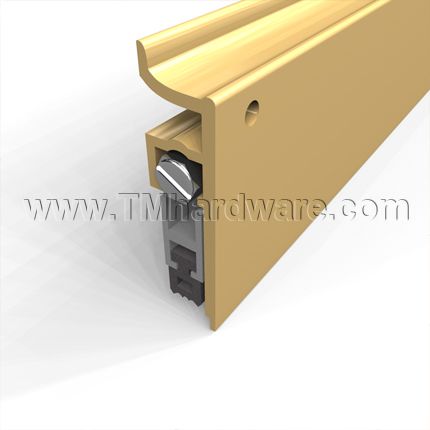

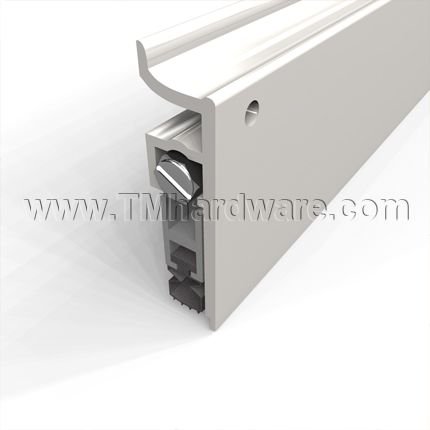

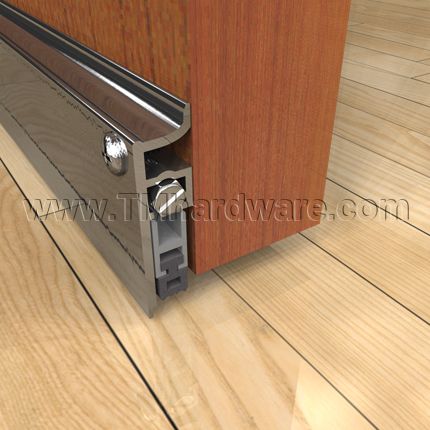

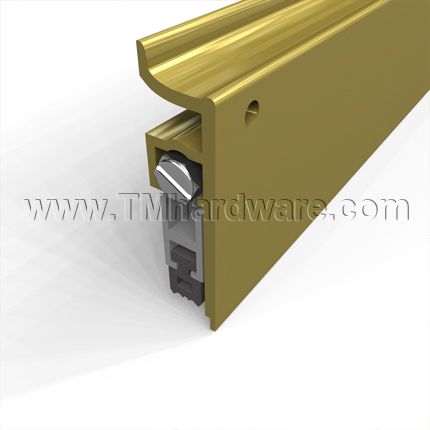

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our full Warranty Policy.
Click here to view all our Pemko Surface Mounted Automatic Door Bottoms.
-
QuickShipNo
-
ManufacturerPemko Manufacturing
-
MPN412R, 412S, 412PK
- Product Design
-
Seal TypePemkoPrene® Rubber Seal, EPDM Rubber Seal, Silicone Rubber Seal
-
Mounting TypeSurface Mounted
-
Door TypeWooden Door, Hollow Metal Door
-
- Dimensions
-
Casing DimensionsCasing measures .562" W x 1.938" H.
-
LengthCustom Cut to Size
-
Drop SizeUp to .75" Drop
-
- Installation
-
HandingRight Handed, Left Handed
-
Installation ScrewsInstallation Screws Provided
-
SizingTo determine sizing required see 'How to Size an Automatic Door Bottom'
-
- Special Features
-
Compatible Insert Replacement#SR6BL Sponge Silicone Replacement
-
- Finishes
-
FinishClear Anodized Aluminum (US28), Bronze Mill Finish (Brass), Dark Bronze Anodized Aluminum (313), Clad Stainless Steel
-
- Compliance Details
-
Compliance DetailsAir Infiltration Rated, Sound Rated, BHMA Certified, Smoke Rated, Fire Rated, UL Classified, GreenGuard Gold Certified
-
ANSI DesignationR3E334, R3E335, R3G334, R3G335
-
Warranty5 Year Limited Warranty
-
How It Works
The high quality automatic mechanism consists of an aluminum case which surrounds a moveable drop-bar seal. The drop-bar seal is actuated by a plunger which contacts the door jamb as the door is closing, forcing the drop-bar seal down against the floor / threshold. The plunger requires low "Feather Touch" closing force to actuate the drop-bar seal. The plunger causes the seal to always actuate on the hinge side first, which prevents the seal from skidding along the floor/threshold while the door is being closed. Door hang-up will not occur!
See also About Automatic Door Bottoms
Click here to print Automatic Door Bottom Installation Instructions and End Plate Installation Instructions.
