Pemko #430 Automatic Door Bottom, Handed, Aluminum with Choice of Seals, .75" Drop

Pemko #430 Automatic Door Bottom, Handed, Aluminum with Choice of Seals, .75" Drop

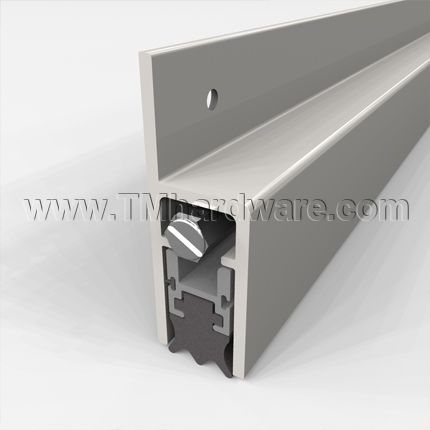

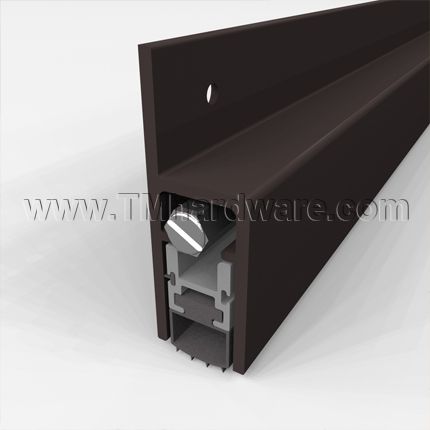

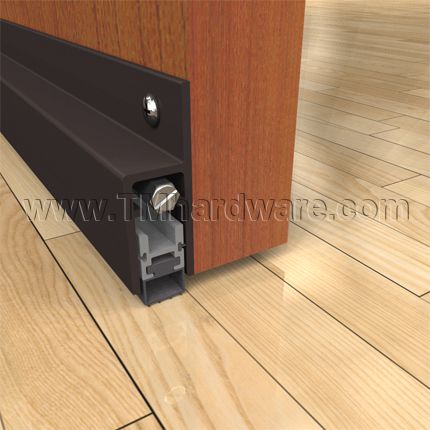

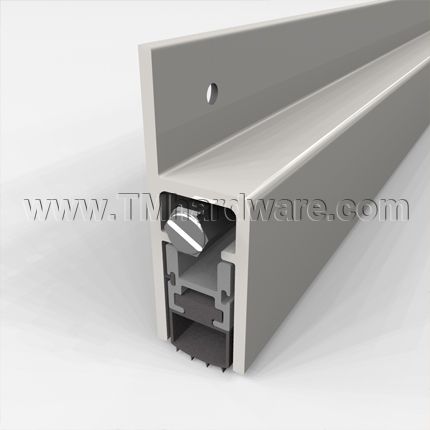

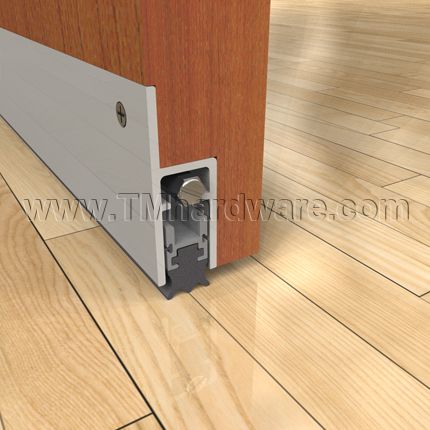

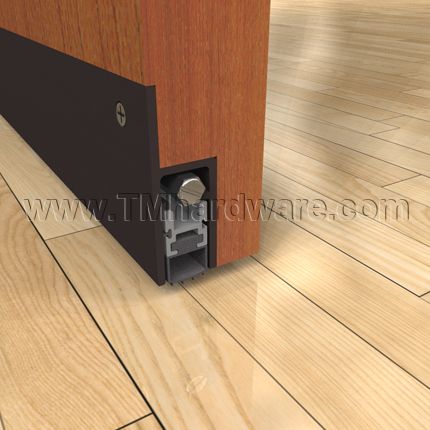

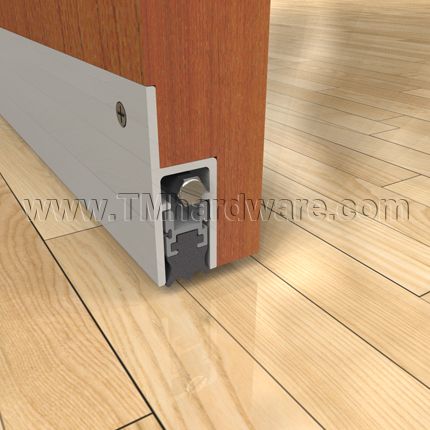

Product Specs of Pemko Automatic Door Bottom #430 Clear Anodized Pemko Automatic Door Bottom #430 with Sponge Neoprene Seal Clear Anodized Pemko Automatic Door Bottom #430 Semi-Mortised into Wooden Interior Door with Seal Open Clear Anodized Pemko Automatic Door Bottom #430 Semi-Mortised into Wooden Interior Door with Seal Closed Dark Bronze Anodized Pemko Automatic Door Bottom #430 with PemkoPrene Seal Dark Bronze Anodized Pemko Automatic Door Bottom #430 Surface Mounted to Wooden Interior Door with PemkoPrene Seal Lowered Dark Bronze Anodized Pemko Automatic Door Bottom #430 Surface Mounted to Wooden Interior Door with PemkoPrene Seal Raised
0.0

Heavy duty automatic door bottoms have a drop-down seal which is lowered when the door is closed to prevent air, light, sound, fire, smoke, dust and moisture from infiltrating the gap under doors. It can be surface mounted to the door or semi-mortised into the bottom of the door. Available with a PemkoPrene™ or Sponge EPDM seal, in two finishes and length is custom cut to size.

PRICED PER RANGE

To determine length needed, see How to Measure for an Automatic Door BottomNot sure what handing is required for your door? See How to Determine Handing / Swing of Door.

Market price: $120.00
save 15%
Price: $102.00
Finish
Insert
Size Range
Exact Size
Mounting
Handing
Qty
Save to wishlist
Made in USA
SKU P430DMRL|36
Options Surface Mounted, Semi-Mortised; Sponge EPDM or PemkoPrene™ Seal
Shipping See Shipping Tab Below
Description

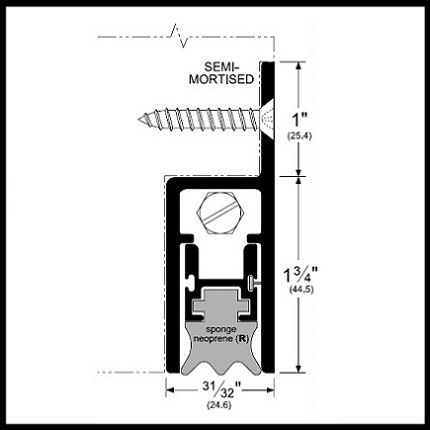

Dimensions: Casing measures .986" W x 2-3/4" H. Length is custom cut to size. To determine size needed, see How to Measure for an Automatic Door Bottom.

  • Note, 48.25" - 72" Length is only available in Clear Anodized Aluminum with Sponge EPDM seal.

Finishes: Available in clear anodized and dark brozne anodized aluminum.

Seal: Fitted with either a PemkoPrene or EPDM seal. The seal drops to fill gaps up to .75".

EPDM vs. PemkoPrene: When choosing a seal it is essential to determine the purpose for sealing and the floor surface beneath the seal. EPDM is comparable to Neoprene, though it is more Eco Friendly and has better performance in many areas. Specifically, it has great sound control properties and is solvent resistant. PemkoPrene has a multi-point compression design which works great on uneven surfaces such as a tiled floor or carpet. PemkoPrene is not a firm seal which allows for more leniencies. Both types of seals remain effective in a wide range of temperatures and can be used on external doors.

Installation: Installation instructionsend plates and screws provided. Screws are colored to coordinate with casing.

MountingThis automatic door bottom can be surface mounted or semi-mortised to the face of the door. Select from drop-down menu above which mounting option will be applied, since the two mounting options require different sized screws.

Handing: Casing is non-reversible and requires disassembly if different handing is required. Select handing from options above. Not sure what handing is required for your door? See How to Determine Handing / Swing of Door.

Seal Replacement: Seals are manufactured to last through many usages, however if required, a replacement seal can be purchased, which eliminates the need to replace the whole door bottom. See our Pemko Automatic Door Bottom Replacement Seal.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our full Warranty Policy.

For a non-handed option see our Automatic Door Bottom with Choice of Seals.

Product Data

How It Works

The high quality automatic mechanism consists of an aluminum case which surrounds a moveable drop-bar seal. The drop-bar seal is actuated by a plunger which contacts the door jamb as the door is closing, forcing the drop-bar seal down against the floor / threshold. The plunger requires low "Feather Touch" closing force to actuate the drop-bar seal. The plunger causes the seal to always actuate on the hinge side first, which prevents the seal from skidding along the floor/threshold while the door is being closed. Door hang-up will not occur!

See also About Automatic Door Bottoms



Click to Print

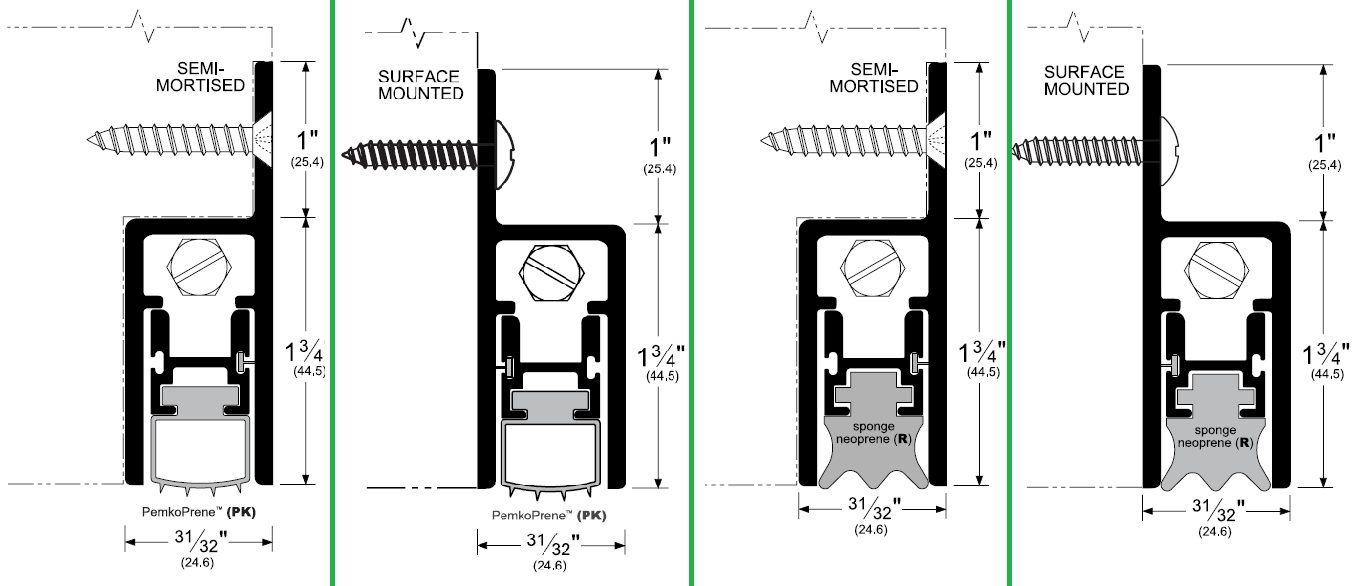

Product specs for pemko automatic door bottom 430

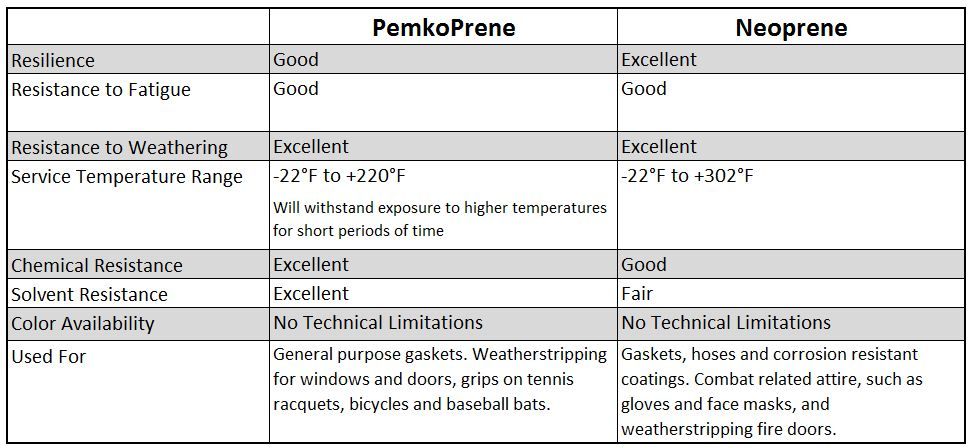

Insert Material

See Understanding Rubber Seals for more details.

Installation Guide

Click to Print Installation Guide for:

Compliance Details

Click to View Ratings Explained

Finishes Comply with the Following ANSI / BHMA Finish Codes:

  • Clear Anodized Aluminum- US28 / 628
  • Dark Bronze Anodized Aluminum- US10B / 710
