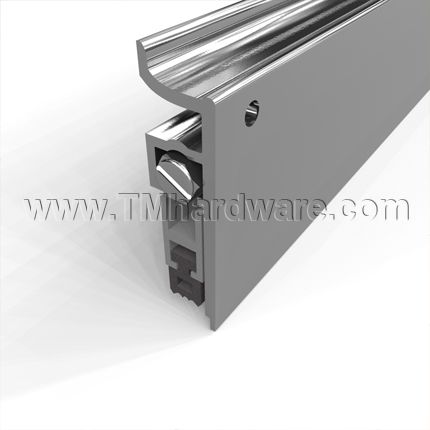

Pemko #412 Automatic Door Bottom, Aluminum, Bronze or Stainless Steel - QuickShip

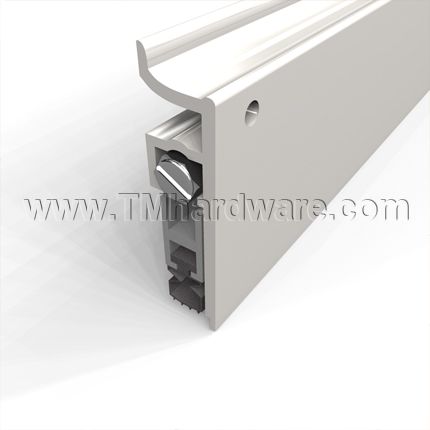

Pemko #412 Automatic Door Bottom, Aluminum, Bronze or Stainless Steel with EPDM Rubber Seal, .75" Drop, 36" Length, Clear Anodized Aluminum Finish
Pemko Manufacturing

This decorative surface-mounted Automatic Door Bottom lowers a rubber seal when the door is closed for light and sound reduction as well as smoke and fire protection. Sponge EPDM insert is available, in either 36" or 48" in length. Aesthetic casing is available in Clear Anodized Aluminum or Dark Bronze Anodized Aluminum finish.

For more options and finishes, See Our Pemko #412 Automatic Door Bottom, Aluminum, Bronze or Stainless Steel with Choice of Rubber Seal, .75" Drop

PRICED PER ITEM

To determine sizing, see How to Measure for Automatic Door Bottom.

See tabs below for additional information
    • SKU
      PK412CRL36-086691
    • Market price:$85.11
      • save 10%
    • Starting price: Price: $76.60 per item


    This decorative surface-mounted Automatic Door Bottom lowers a rubber seal when the door is closed for light and sound reduction as well as smoke and fire protection.

    For more options and finishes, See Our Pemko #412 Automatic Door Bottom, Aluminum, Bronze or Stainless Steel with Choice of Rubber Seal, .75" Drop

    Seals: Sponge EPDM

    • EPDM is comparable to Sponge Neoprene, though has significantly better performance and is more environmentally friendly! It has great sound control properties and is resistant to solvents.

    Insert Replacement: This seal is designed to last through much usage, however, if necessary a replacement seal can be purchased - see our Sponge Rubber Replacement for Pemko #412

    Handing: This is supplied for Left Handed Doors. Handing can be reversed in the field, see installation guide. See How to Determine Handing / Swing of Door.

    Installation: Installation instructions, screws and end plate included. Screws are colored to coordinate with casing.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5-year guarantee against defects in material and workmanship.
    Click here to view our full Warranty Policy.

    Click here to view all our Pemko Surface Mounted Automatic Door Bottoms.

      • SKU
        PK412CRL36-086691
    • QuickShip
      Yes
    • Manufacturer
      Pemko Manufacturing
    • MPN
      412CRL, 412DRL
    • Product Design
      • Mounting Type
        Surface Mounted
      • Door Type
        Wooden Door, Hollow Metal Door
    • Dimensions
      • Casing Dimensions

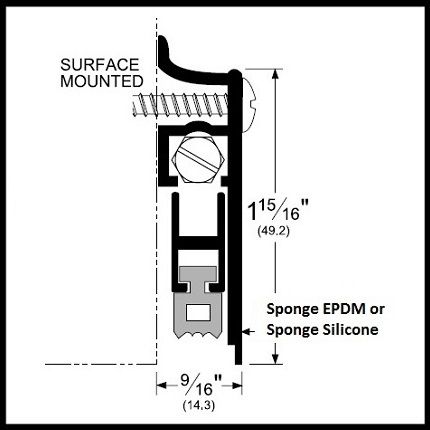

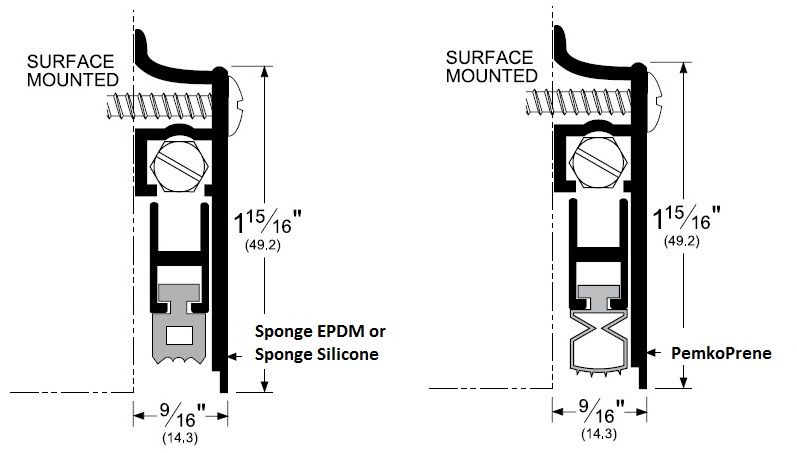

        Casing measures .562" W x 1.938" H.
      • Length
        36" Length, 48" Length
      • Drop Size
        Up to .75" Drop
    • Installation
      • Handing
        Right Handed, Left Handed
      • Installation Screws
        Installation Screws Provided
    • Special Features
      • Compatible Insert Replacement
        #SR6BL Sponge Silicone Replacement
    • Finishes
      • Finish

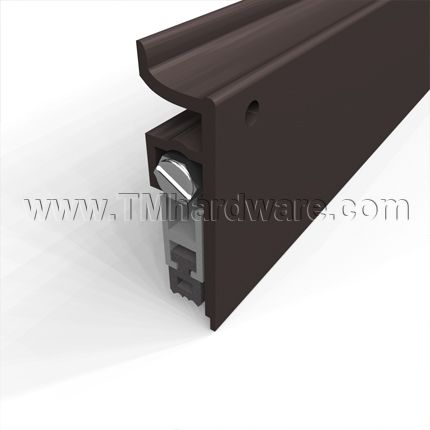

        Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313)
    • Compliance Details
      • Compliance Details
        Air Infiltration Rated, Sound Rated, BHMA Certified, Smoke Rated, Fire Rated, UL Classified, GreenGuard Gold Certified
      • ANSI Designation
        R3E334, R3E335, R3G334, R3G335
      • Warranty
        5 Year Limited Warranty

    How It Works

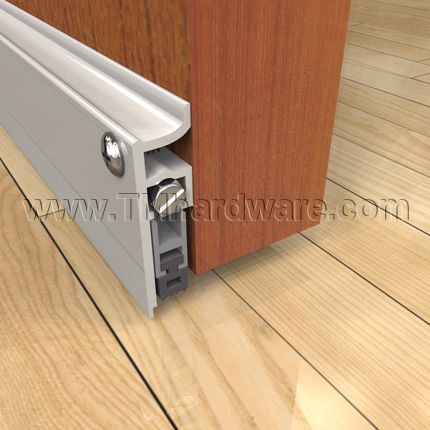

    The high quality automatic mechanism consists of an aluminum case which surrounds a moveable drop-bar seal. The drop-bar seal is actuated by a plunger which contacts the door jamb as the door is closing, forcing the drop-bar seal down against the floor / threshold. The plunger requires low "Feather Touch" closing force to actuate the drop-bar seal. The plunger causes the seal to always actuate on the hinge side first, which prevents the seal from skidding along the floor/threshold while the door is being closed. Door hang-up will not occur!

    See also About Automatic Door Bottoms
