Pemko #4131 Automatic Door Bottom, Aluminum with Choice of Seals, Narrow Casing, .75" Drop, 36" Length - QuickShip

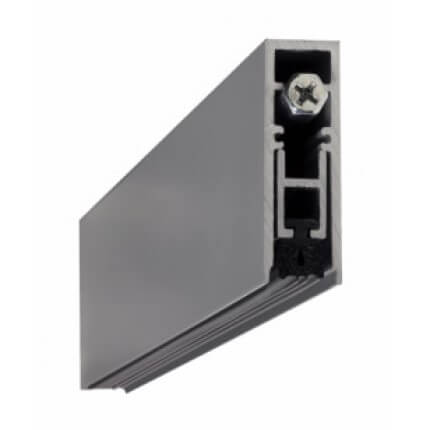

Pemko #4131 Automatic Door Bottom, Aluminum with Choice of Seals, Narrow Casing, .75" Drop, PemkoPrene® Rubber Seal, Clear Anodized Aluminum Finish

This regular duty Automatic Door Bottom lowers a rubber seal when the door is closed to prevent infiltration of light, sound and drafts. The high quality mechanism of the door bottom ensures smooth action when the seal is lowered and fills gaps up to 3/4".

For more options and finishes, See Our Pemko #4131 Automatic Door Bottom, Aluminum With Choice of Seals, Narrow Casing, .75" Drop

PRICED PER ITEM

To determine sizing, see How to Measure for Automatic Door Bottom.

See tabs below for additional information

Quantity

Add to compare

This Pemko #4131 Automatic Door Bottom lowers a rubber seal when the door is closed to prevent infiltration of light, sound and drafts. The high quality mechanism of the door bottom ensures smooth action when the seal is lowered.

It is designed for regular duty usage, in residential or low-frequency usage commercial settings.

For more options and finishes, See Our Pemko #4131 Automatic Door Bottom, Aluminum with Choice of Seals, Narrow Casing, .75" Drop

Seals: Available with a PemkoPrene™, Sponge EPDM and Sponge Silicone insert.

EPDM is comparable to Sponge Neoprene, though has significantly better performance and is more environmentally friendly! It has great sound control properties and is resistant to solvents.
PemkoPrene™ has a multi-point contact design and is great for uneven surfaces such as a tiled floor or carpet. Due to the way PemkoPrene™ is manufactured, it is not as firm as sponge silicone and allows for more leniencies.

Mounting: This automatic door bottom can be surface mounted or semi-mortised applied to the face of the door.

Installation: Installation instructions, end plates and screws provided. Screws are colored to coordinate with casing.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5-year guarantee against defects in material and workmanship.
Click here to view our full Warranty Policy.

Click here to view all our Surface Mounted Automatic Door Bottoms.

- SKU
  PK4131CRL36-085671
QuickShip
Yes
Manufacturer
Pemko Manufacturing
MPN
4131R, 4131S, 4131PK
Product Design
- Mounting Type
  Surface Mounted, Semi-Mortised
- Door Type
  Wooden Door, Hollow Metal Door
Dimensions
- Casing Dimensions
  Casing measures .594" (W) x 1.844" (H). Length is custom cut to size up to 72".
- Length
  36" Length
- Drop Size
  Up to .75" Drop
Installation
- Handing
  Non-Handed
- Installation Screws
  Installation Screws Provided
Special Features
- Compatible Insert Replacement
  #SR6BL Sponge Silicone Replacement
Finishes
- Finish
  Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313)
Compliance Details
- Compliance Details
  Air Infiltration Rated, Sound Rated, BHMA Certified, Smoke Rated, Fire Rated, UL Classified, GreenGuard Gold Certified
- ANSI Designation
  R3G334, R3G335, R3G344, R3G345
- Warranty
  5 Year Limited Warranty

How it Works

The high quality automatic mechanism consists of an aluminum case which surrounds a moveable drop-bar seal. The drop-bar seal is actuated by a plunger which contacts the door jamb as the door is closing, forcing the drop-bar seal down against the floor / threshold. The plunger requires low "Feather Touch" closing force to actuate the drop-bar seal. The plunger causes the seal to always actuate on the hinge side first, which prevents the seal from skidding along the floor/threshold while the door is being closed. Door hang-up will not occur!
