Pemko #4301NB Automatic Door Bottom, Aluminum with Double Brush Seal, .75" Drop

Pemko #4301NB Automatic Door Bottom, Aluminum with Double Brush Seal, .75" Drop
Pemko Manufacturing

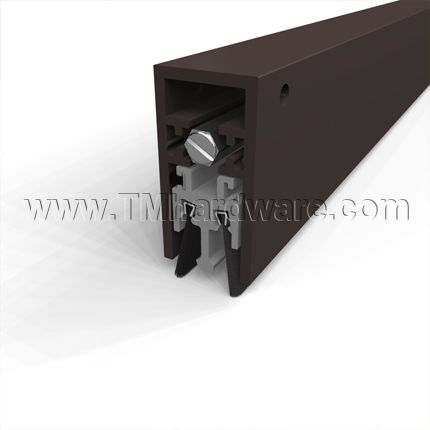

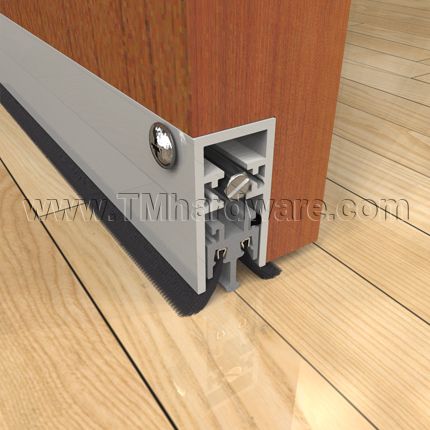

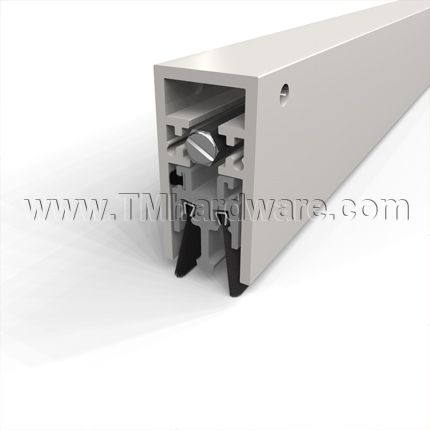

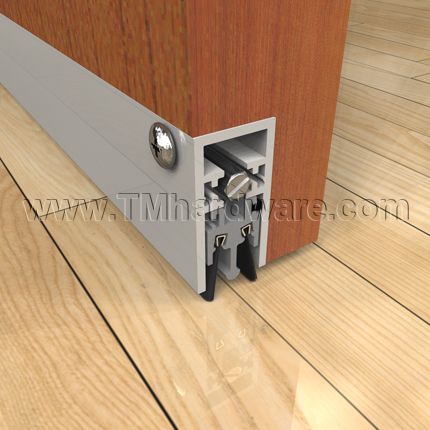

This heavy duty automatic door bottom has a drop-down seal which is lowered two nylon brush seals when the door is closed to prevent light, sound, fire, smoke, dust, and insects from seeping through the gap under doors. Designed to be surface mounted or semi-mortised applied to the face of the door. Available in a choice of aluminum anodized finishes and length is custom cut to size.

PRICED PER ITEM

To determine size needed, see How to Measure for an Automatic Door Bottom. Note, door bottom can be trimmed up to 2" in the field.

See tabs below for additional information
    • SKU
      PK4301CNBL|36
    • Market price:$132.60
      • save 10%
    • Starting price: Price: $119.34 per item


    This heavy duty automatic door bottom has a drop-down seal which is lowered two nylon brush seals when the door is closed to prevent light, sound, fire, smoke, dust, and insects from seeping through the gap under doors. Designed to be surface mounted or semi-mortised applied to the face of the door.

    Seal: Fitted with a double nylon brush seal. The brush conforms well to surface irregularities and can be used on uneven surfaces, such as tiles or a carpeted area. A metal bar prevents bristles from lowering too much and crimping.

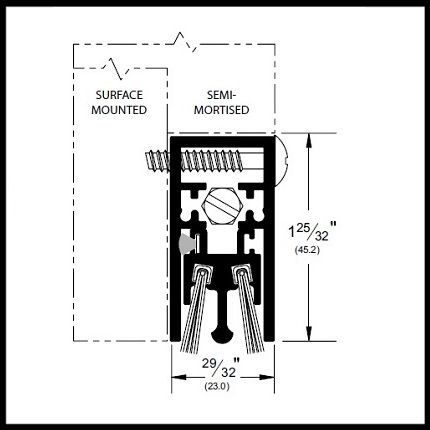

    Mounting: This automatic door bottom can be installed in a surface mounted or semi-mortised application. For a semi-mortised application it requires a cut-out of .906” (W) x 1.781” (H).

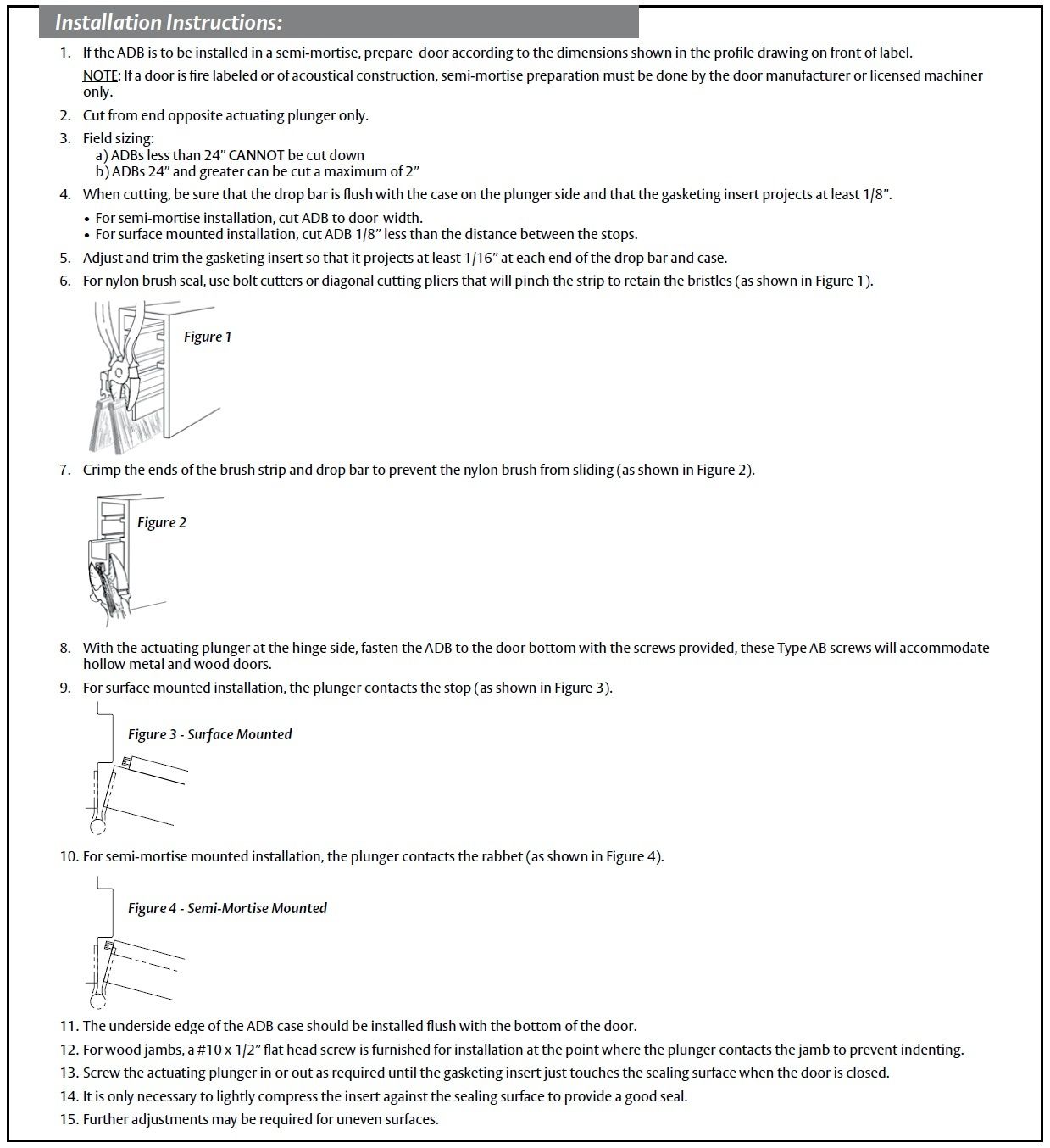

    Installation: Installation instructions, screws and end plates provided. Screws are colored to coordinate with casing.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.
    Click here to view our full Warranty Policy.

    For a Narrower Version, see our Narrow Casing Automatic Door Bottom with Nylon and Neoprene Seal.

      • SKU
        PK4301CNBL|36
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      4301NBL
    • Product Design
      • Mounting Type
        Surface Mounted, Semi-Mortised
      • Door Type
        Wooden Door
    • Dimensions
      • Casing Dimensions
        Casing measures .906" W x 1.781" (H). Door bottom can be trimmed in the field up to 2".
      • Length
        Custom Cut to Size
      • Drop Size
        Up to .75" Drop
      • Suggested Door Cut-Out
        For a semi-mortised application it requires a cut-out of .906” (W) x 1.781” (H).
      • Door Thickness
        1-3/4" Thick
    • Installation
      • Handing
        Non-Handed
      • Installation Screws
        Installation Screws Provided
      • Sizing
        To determine sizing required see 'How to Size an Automatic Door Bottom'
    • Finishes
      • Finish

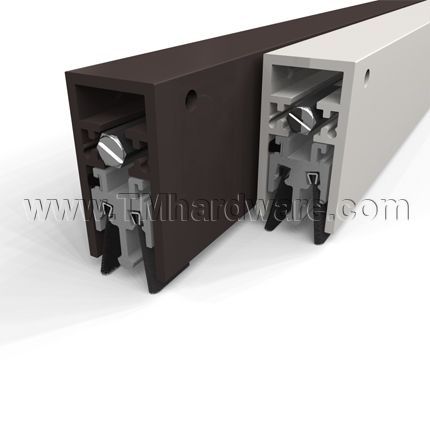

        Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), Flat Black (US19)
    • Compliance Details
      • Compliance Details
        Air Infiltration Rated, ADA Compliant, BHMA Certified, Smoke Rated, Fire Rated, UL Classified, GreenGuard Gold Certified
      • ANSI Designation
        R3A334, R3A335, R3A344, R3A345
      • Warranty
        5 Year Limited Warranty

    How It Works

    The high quality automatic mechanism consists of an aluminum case which surrounds a moveable drop-bar seal. The drop-bar seal is actuated by a plunger which contacts the door jamb as the door is closing, forcing the drop-bar seal down against the floor / threshold. The plunger requires low "Feather Touch" closing force to actuate the drop-bar seal. The plunger causes the seal to always actuate on the hinge side first, which prevents the seal from skidding along the floor/threshold while the door is being closed. Door hang-up will not occur!

    See also About Automatic Door Bottoms.



    Click to Print

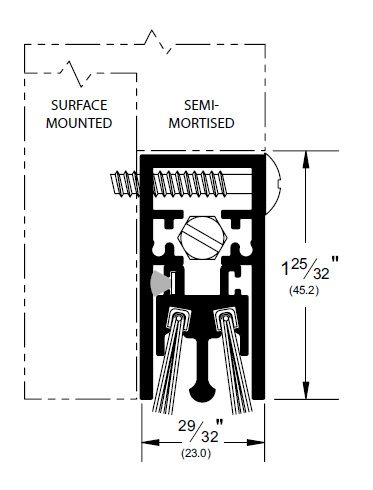

    Product specs of pemko automatic door bottom 4301NB with nylon brush
