Pemko #2893 Door Gasket, 1.5" Heavy Duty Aluminum for Headers with Eco-V Vinyl Double Fin Seal

Pemko #2893 Door Gasket, 1.5" Heavy Duty Aluminum for Headers with Eco-V Vinyl Double Fin Seal
Pemko Manufacturing

This Heavy Duty Door Gasket is fitted with a Eco-V Vinyl Double Fin, specifically designed for small gaps, which seals the gaps around the door to prevent infiltration of light, dust, drafts, moisture, sound and insects. The door gasket is designed to be applied to the header only, see below for corresponding jamb piece. Available in two finishes and is custom cut to size.

PRICED PER FOOT.

See tabs below for additional information
    • SKU
      PK2893AV
    • Market price:$23.58
      • save 10%
    • Starting price: Price: $21.22 per foot


    This Heavy Duty Door Gasket is fitted with a high quality Eco-V Vinyl bulb seal which seals the gaps around the door to prevent infiltration of light, dust, sound, drafts, moisture and insects. This door gasket is a heavy duty model, which has thicker extrusions and can handle greater traffic frequency than our standard Rubber Door Gasket models, ideal for commercial applications.

    Design: This model is specifically designed for the headers of doors where parrallel arm closer brackets or other door hardware will be used.

    Corresponding Jamb Piece: Sold separately. See our Heavy Duty Door Gasket with Eco-V Fin Seal for Jambs.

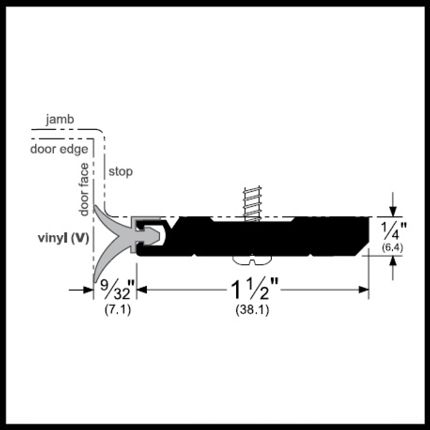

    Casing Dimensions: 1.5" x .25" (1-1/2" x 1/4") x Custom Length.

    Seal: Casing is fitted with an Eco-V Vinyl fin seal. The flexible fins aid in sealing by compensating for slight misalignment of door, due to poor installation or natural warping. Eco-V is comparable to vinyl, though it is a newer, greener and more environmentally friendly version. It surpasses the quality and durability of standard vinyl, resulting in a longer service life and less need for replacement.

    Compliance: Air Infiltration and fire rated, UL Listed and Complies with GreenGuard Gold Certification, see product data tab for more details.

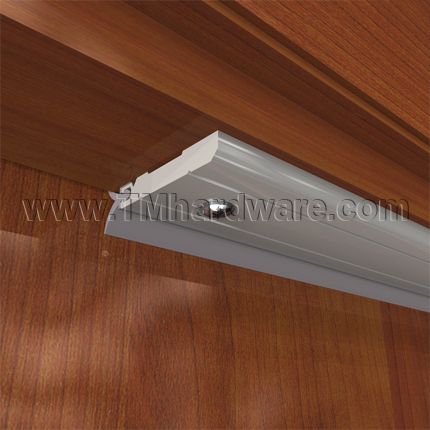

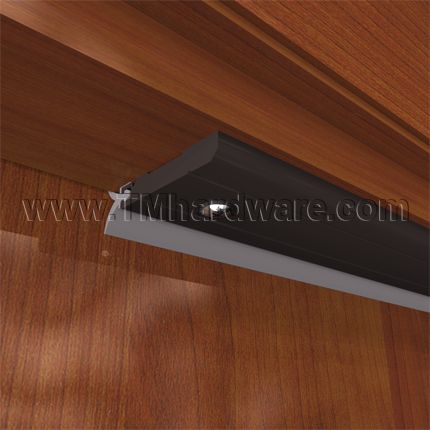

    Installation: Designed to be surface mounted to the stop of the door. See Installation Guide. Sheet Metal Screws are only supplied if drilling is requested above. #10 Countersunk screw holes with flat head machine screws can also be provided if required. Please contact us or call us at 845-388-1300 to place order.

    Drilling: Product can be pre-drilled for easy installation if requested, select from options above. This product can be easily drilled on site if necessary.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.
     Click to view Full Warranty Policy.

      • SKU
        PK2893AV
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      2893V
    • Drilling
      Standard Drilling Required, None Required
    • Finishes
      • Finish

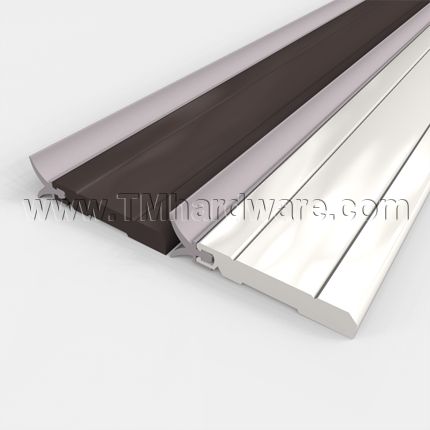

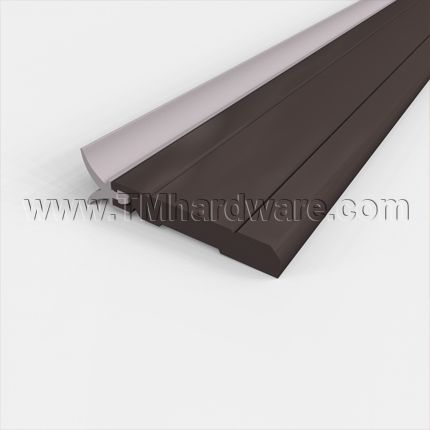

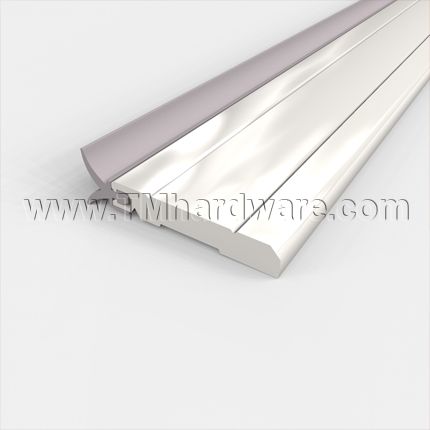

        Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)

    Click to Print



    P2893 Product Specs:

    Product Specs for Door Gasket with Eco-V Fin Seal by Pemko



    NOTE, Drilling and screws are only supplied unless requested.

    This door gasket is designed for Headers of Doors.
    For corresponding jamb piece, see our Heavy Duty Door Gasket with Eco-V Fin Seal for Jambs.

    Click to Print



    P2893 Installation Guide:

    Installation Guide for Pemko Door Gasket with Eco-V Fin Seal

    Click to View Ratings Explained

    Compliance Details for Pemko Door Gasket with Eco-V Fin Seal



    Finishes Comply with the Following ANSI / BHMA Codes:

    • Aluminum Mill Finish - US27 / 719
    • Dark Bronze Anodized Aluminum - US10B / 710
