Pemko #2903 Door Gasket, 1.5" Heavy Duty Aluminum for Jambs with Eco-V Vinyl Double Fin Seal

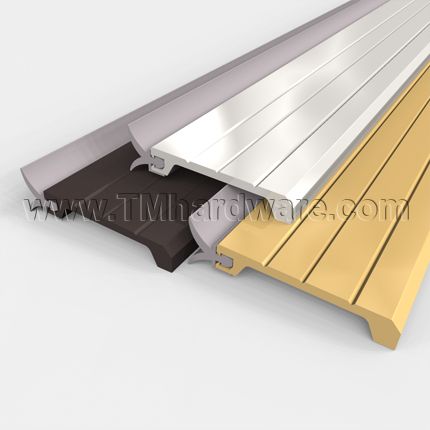

This Heavy Duty Door Gasket is fitted with a Eco-V Vinyl Double Fin, specifically designed for small gaps, which seals the gaps around the door to prevent infiltration of light, dust, drafts, moisture, sound and insects. The door gasket is designed to be applied to the jambs only, see below for corresponding header piece. Available in three finishes and is custom cut to size.
PRICED PER FOOT.
This Heavy Duty Door Gasket is fitted with a high quality Eco-V Vinyl bulb seal which seals the gaps around the door to prevent infiltration of light, dust, sound, drafts, moisture and insects. Available in three aluminum finishes and is custom cut to size.
Key Features Include:
Design: This door gasket is a heavy duty model, which has thicker extrusions and can handle greater traffic frequency than our standard Rubber Door Gasket models, ideal for commercial applications. This model is specifically designed for the jambs of doors and for small gaps.
For corresponding header piece, see our Heavy Duty Door Gasket with Eco-V Fin Seal for Headers.

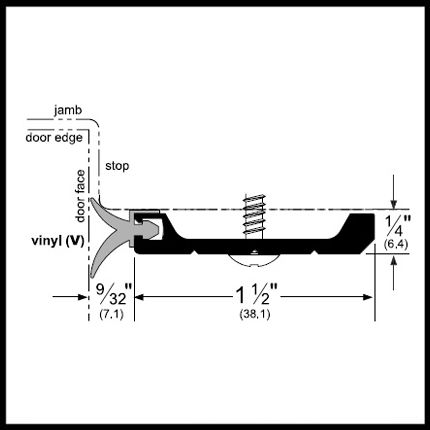

Casing: Aluminum casing is surface mounted to the stop of the door and has dimensions of 1.5" x .25" (1-1/2" x 1/4").
Seal: Casing is fitted with an Eco-V Vinyl fin seal. The flexible fins aid in sealing by compensating for slight misalignment of door, due to poor installation or natural warping. Eco-V is comparable to vinyl, though it is a newer, greener and more environmentally friendly version. It surpasses the quality and durability of standard vinyl, resulting in a longer service life and less need for replacement.
Compliance: Door Gasket is rated for fire and smoke.
- Eco-V Vinyl Fin Seal
- Heavy Duty Aluminum Casing
- Designed for Jambs of Door, for small gaps

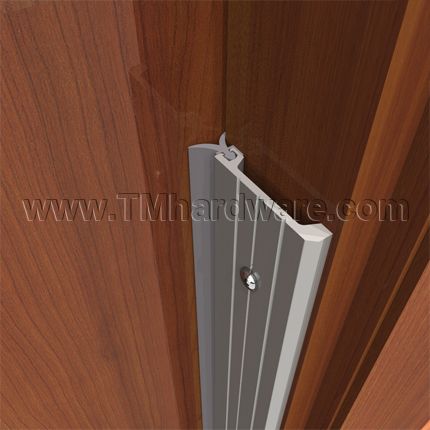

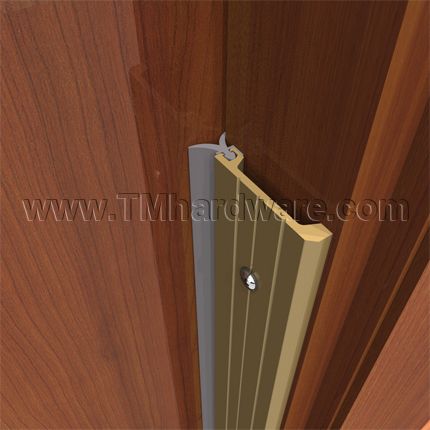

- Surface Mounted to Stop of Door
- Fire and Smoke Rated
- Custom cut to size

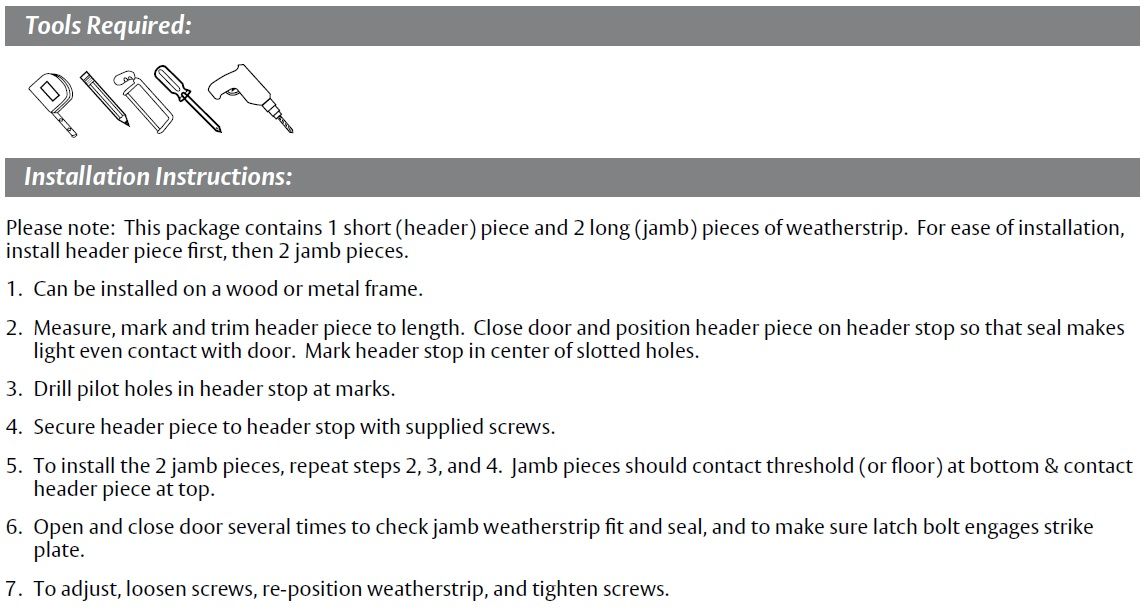

Installation Guide and screws provided. Screws are colored to coordinate with casing.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and workmanship.
Click to view Full Warranty Policy.
-
QuickShipNo
-
ManufacturerPemko Manufacturing
-
MPN2903V
- Finishes
-

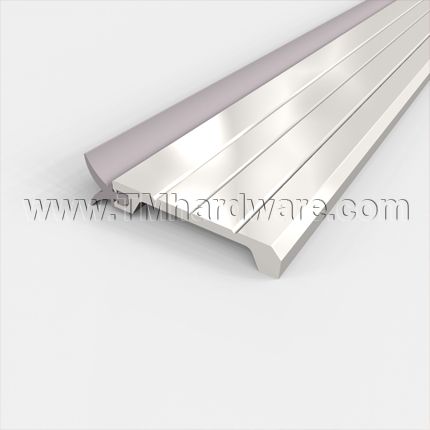

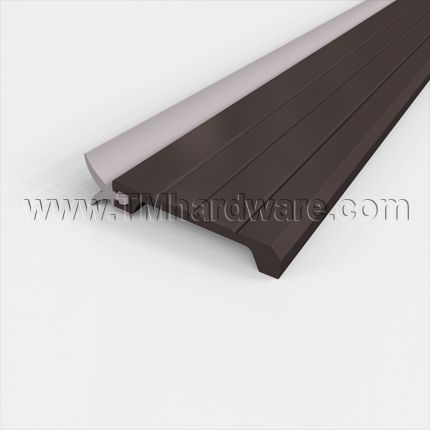

FinishMill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
-

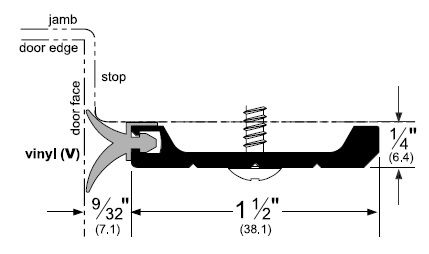

P2903 Product Specs:
This door gasket is designed for jambs of doors.
For corresponding header piece, see our Heavy Duty Door Gasket with Eco-V Fin Seal for Headers.
Click to View Ratings Explained
Finishes Comply with the Following ANSI / BHMA Codes:
- Aluminum Mill Finish - US27 / 719
- Dark Bronze Anodized Aluminum - US10B / 710

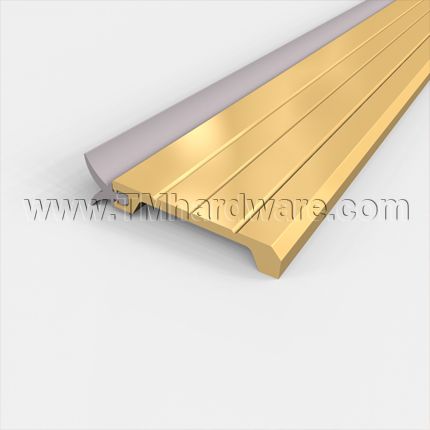

- Gold Anodized Aluminum - US4 / 688
