Pemko #28945 Door Gasket, 1.5" Heavy Duty Aluminum for Headers with Pile Brush Seal

This item has been discontinued.

For similar items, see our Brush Door Gaskets.

See tabs below for additional information
    • SKU
      PK28945ANB
    Call for price!
    845-388-1300

    This Heavy Duty Door Gasket is fitted with a high quality pile brush seal which seals the gaps around the door to prevent infiltration of light, dust, drafts, moisture and insects. This door gasket is a heavy duty model, which has thicker extrusions and can handle greater traffic frequency than our standard Brush Door Gasket models, ideal for commercial applications.

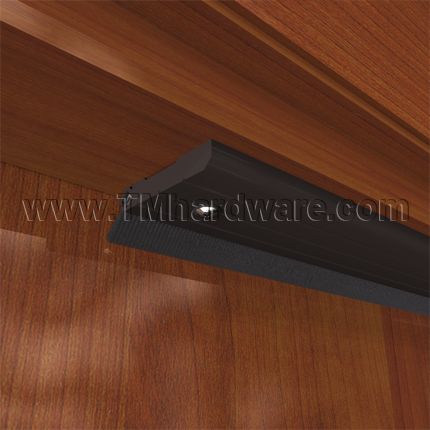

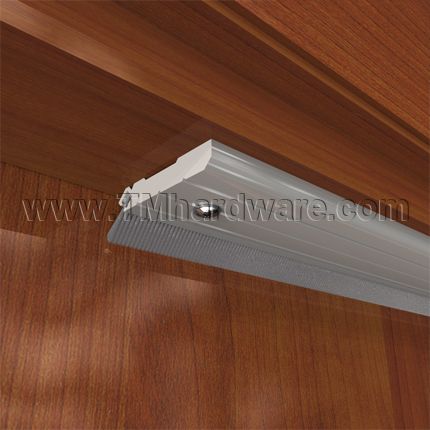

    Design: This model is specifically designed for the headers of doors where parallel arm closer brackets or other door hardware will be used.

    Corresponding Jamb Piece: see our Heavy Duty Door Gasket with Brush Seal for Jambs.

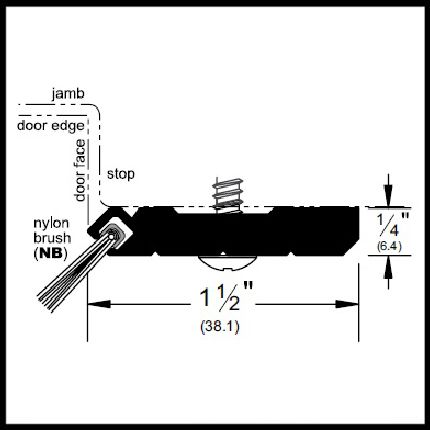

    Casing Dimensions: 1.5" x .25" (1-1/2" x 1/4") x Custom Length.

    Seal: Casing is fitted with a Nylon Brush seal, set at a 45° angle, to ensure the best possible contact with door surface. Nylon bristles are flexible and can conform to slight irregularities on the sealing surface.

    Compliance: Door Gasket is rated for fire, smoke and air infiltration. See product data tab for more details.

    Installation: Designed to be surface mounted to the stop of the door. See Installation Guide. Sheet Metal Screws are only supplied if drilling is requested above. #10 Countersunk screw holes with flat head machine screws can also be provided if required. Please contact us or call us at 845-388-1300 to place order.

    DrillingProduct can be pre-drilled for easy installation if requested, select from options above. This product can be easily drilled on site if necessary.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.
     Click to view our Full Warranty Policy.

    For an additional heavy duty options, see our Heavy Duty Door Gasket with Rubber Bulb Seal.

      • SKU
        PK28945ANB
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      28945NB
    • Drilling
      Standard Drilling Required, None Required
    • Finishes
      • Finish
        Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)

    Click to Print

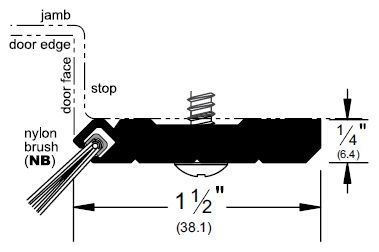

    P28945 Product Specs:

    Product Specs for Heavy Duty Gasketing with Pile Brush Seal P28945      Product Specs for Heavy Duty Gasketing with Pile Brush Seal - P28945

    NOTE, Drilling and screws are only supplied unless requested.

    This model is designed for Jambs of Doors.
    For corresponding jamb piece, see our Heavy Duty Door Gasket with Brush Seal for Jambs.

    Click to View Ratings Explained

    Compliance Details for Heavy Duty Gasketing with Pile Brush Seal - P29045



    Finishes Comply with the Following ANSI / BHMA Codes:

    • Dark Bronze Anodized Aluminum - US10B / 710
    • Gold Anodized Aluminum - US4 / 688
