Home > Door Seals > Door Shoes > Rubber Door Shoes > PEmko #225 Door Shoe Sweep, U Shaped Aluminum for 1-13/16" Hollow Metal Doors

PEmko #225 Door Shoe Sweep, U Shaped Aluminum for 1-13/16" Hollow Metal Doors

PEmko #225 Door Shoe Sweep, U Shaped Aluminum for 1-13/16" Hollow Metal Doors
Product Specs of Door Bottom #225 Door Shoe Sweep for Hollow Metal Doors #225 Aluminum Mill Finish Door Shoe Sweep for Hollow Metal Doors #225 Aluminum Mill Finish Door Shoe Sweep for Hollow Metal Doors #225 Applied on Hollow Metal Doors Dark Bronze Anodized Door Shoe Sweep for Hollow Metal Doors #225 Gold Anodized Door Shoe Sweep for Hollow Metal Doors #225 Applied on Hollow Metal Doors

This door shoe sweep is specifically designed for 13/16" thick Hollow Metal Doors. It is fitted with a choice of PemkoPrene or Eco-V (Vinyl) Seals which can fill gaps up to .5". Available in two aluminum finishes and is custom cut to size.


Market price: $5.40
save 15%
Price: $4.59
Seal Type
Size (Inches)
Save to wishlist
Shipping See Shipping Tab Below

Commercial Grade Door Shoe Sweep and Rubber Fingered Seal:

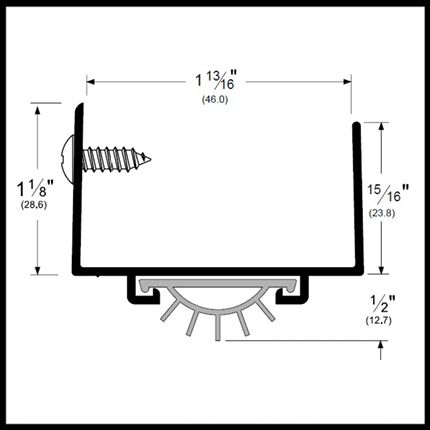

Dimensions: Casing on the face of the door has a height of 1-1/8", on back of door it extends upward 15/16". Length is custom cut to size. It can seal gaps from .3" - .5".

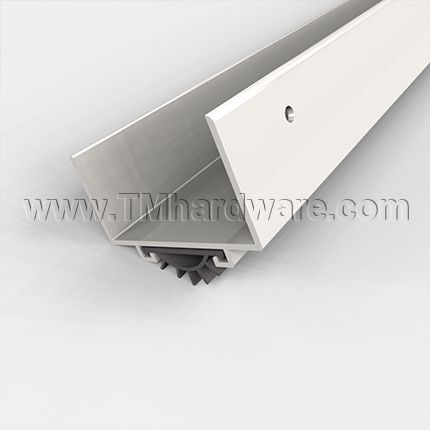

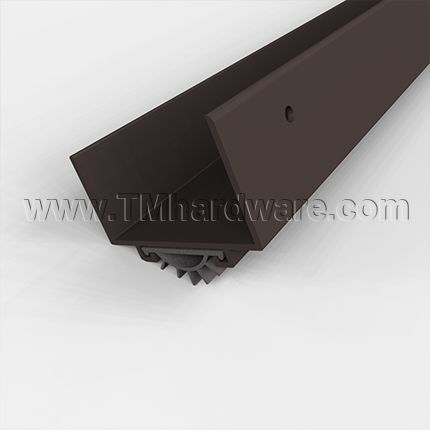

Available Finishes: Aluminum Mill Finish, Dark Bronze Anodized Aluminum

Door Compatibility: Designed for Hollow Metal Doors, 13/16" Thick

Seal Types This model is available with Eco-V™ (Vinyl) or PemkoPrene™ inserts. PemkoPrene™ is a thermo-plastic elastomer which stays flexible in temperatures between -70º and +250ºF, making it ideal for exterior doors and ensures a longer-lasting product than its vinyl counterpart. Eco-V is comparable to vinyl, though it is a newer, greener and more environmentally friendly version and surpasses the quality and durability of standard vinyl. See Insert Material Tab for more information.

The fingered design conforms well to uneven floor or threshold surfaces, ensuring a proper seal constantly. The insert is made of high quality material which will last through much usage, however, if needed, it can be easily replaced without removing the track. Click to view our Pemko Fingered Replacement Seal.

Insert Colors: Aluminum is supplied with gray seal, Dark Bronze Anodized is supplied with black seal.

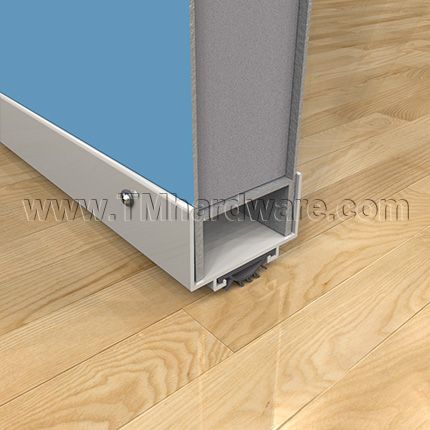

Installation: Installation Guide and screws provided. Drilling holes are slotted to allow for minor adjustments during installation. Screws are colored to coordinate with casing.

Compliance Details: UL GreenGuard Gold Compliant; Smoke and Fire Rated, BHMA Certified

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

To view this product with a rain drip strip, see our P2251 - Door Shoe Sweep with Rain Drip for Hollow Metal Doors.

Product Specs

Click to Print


P225 Product Specs:

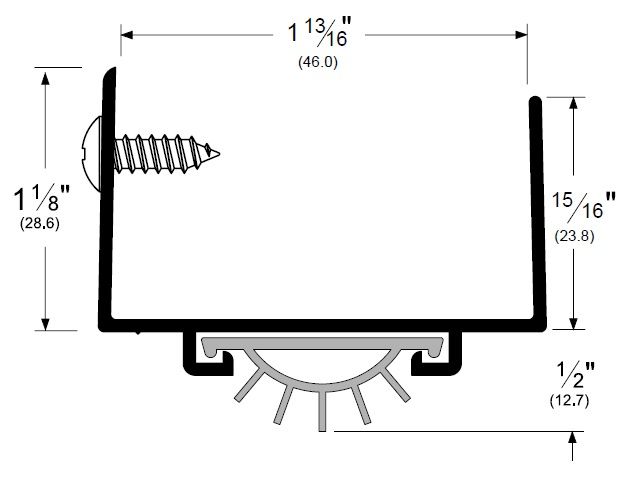

Product Specs of Door Shoe Sweep #225

Material Comparison


Click to Print


P225 Installation Guide:

Compliance Details

Click to View Ratings Explained

Compliance Details of Door Shoe Sweep for Hollow Metal Doors #2251


Finishes Comply with the Following ANSI / BHMA Codes:

  • Aluminum Mill Finish - US27 / 719
  • Dark Bronze Anodized Aluminum - US10B / 710
Shipping / Returns
  • Ship Time:
    • This product is custom made to your specifications, please allow 10-14 Business Day to ship.
    • Ships via major carriers, such as UPS or FedEx Ground, with tracking information provided.
  • Domestic Shipping Fees- (Hawaii and Alaska not Included):
    • FREE SHIPPING on orders over $200.00 (excludes oversized and freight orders).
    • There will be a flat $19.99 shipping and handling fee on orders under $200.00.
    • Oversized Items: Items 86" and above have an oversize surcharge of $70.00
    • Freight Orders: Items 95" and above require freight shipment and have a shipping charge of $150.00
    • Orders totals above $1,500.00 will ship free, regardless of size.
  • Alaska and Hawaii, Canada, and International Shipping:
  • Returns:
    • This product is custom made and is not returnable.
    • We are commited to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 25% restock fee.
    • Weatherstripping products will not be considered for returns.
    • Item must be in new, resaleable condition.
    • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
    • Return shipping is customer's responsibility. A return address will be provided with RMA#.
    • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
