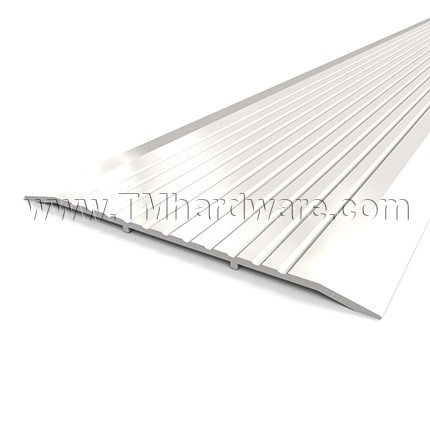

Zero #547 Utility Threshold, 7" Aluminum, .25" Height
This Zero #547 7" saddle threshold is built from high quality aluminum that will withstand the test of time. It is wheelchair accessible and fire rated. It can also be purchased with epoxy abrasives for outdoor use or full body strength options. Available in aluminum mill finish and custom cut to size.
PRICED PER FOOT
This Zero #547 7" saddle threshold is built from high quality aluminum that will withstand the test of time. It can also be purchased with epoxy abrasives for outdoor use or full body strength options. Available in a variaty of finishes and is custom cut to size.
Installation: Installation instructions and screws provided. If threshold is being drilled into concrete, an Expansion Anchor is recommended.
Drilling: Drilling for threshold is not supplied unless specified and template is provided. Please contact us or call at 845-388-1200 to supply template.
Additional Options- Select from options above:

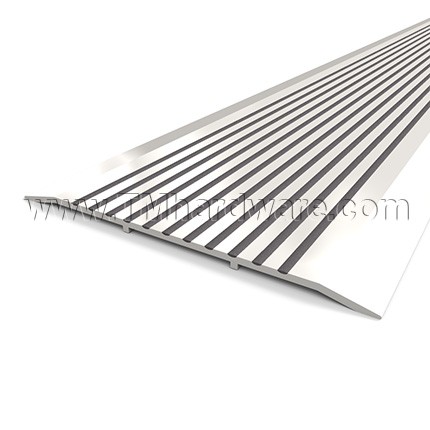

- Non-Stick Epoxy Abrasives can be bonded into the grooves. The tread provides a coefficient of friction of 1.02 dry and 0.98 wet to comply with ADA, OSHA and most local building codes requirements.
- Full Body Strength: An aluminum composite filler containing aluminum oxide and silicone carbide. Ideal applications include heavy commercial traffic in supply rooms, manufacturing buildings, schools, cafeterias, automobile dealers, hospitals, industrial facilities.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
-
QuickShipNo
-
ManufacturerZero International
-
MPN547

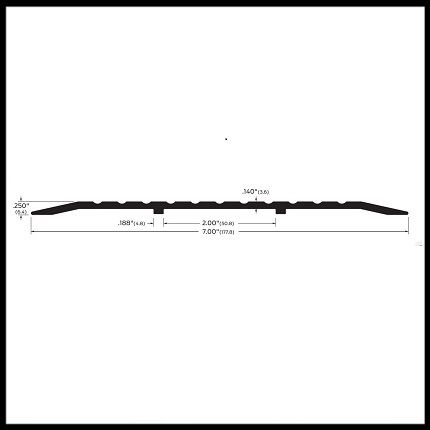

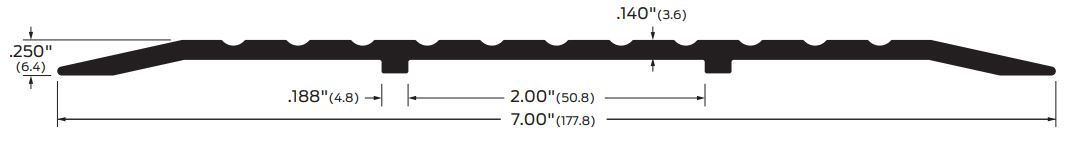

- Dimensions
-
Overall Height.25" Height
-
Overall Width7" Width
-
Threshold LengthCustom Cut to Size
-
Required Door Clearance.375" Height
-
Thickness.125" Thick
-
- Product Design
-
Flat Saddle DesignFluted (Grooved) Design
-
Threshold TypeFlat Utility Threshold
-
MaterialAluminum
-
- Installation
-
Drilling HolesThreshold is not provided drilled
-
- Finishes
-
FinishMill Finish Aluminum (US27), Black Anodized Aluminum (315), Dark Bronze Anodized Aluminum (313), Gold Anodized Aluminum, Flat Black (US19)
-

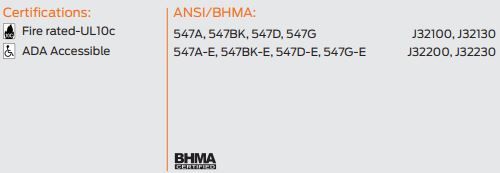

- Compliance Details
-
Compliance DetailsFire Rated, ADA Compliant, BHMA Certified
-
ANSI DesignationJ32100, J32130, J32200, J32230
-
