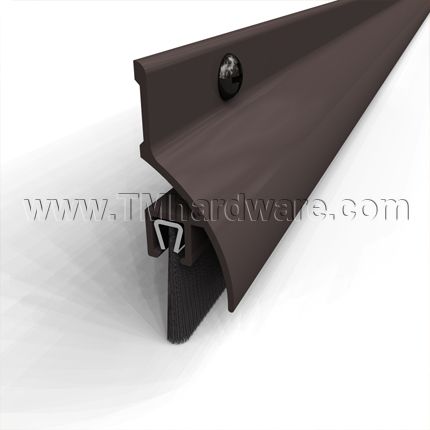

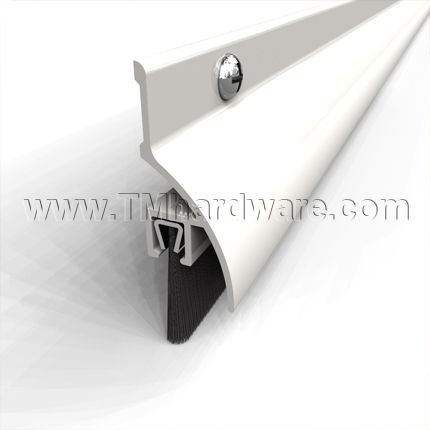

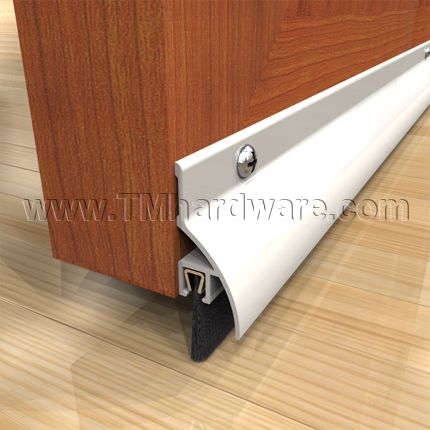

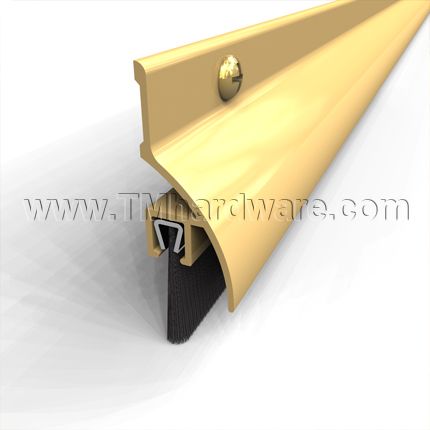

Zero #8198 Door Sweep, Aluminum Rain Drip Casing with .875" Nylon Brush
This Zero #8198 door bottoms features a rain cap which deflects water and prevents seepage. It is fitted with a nylon sweep which seals the door gap from moisture, drafts, light, dust, insects and rodents. Available in various finishes and is custom cut to size.
SOLD BY THE FOOT.
This Zero #8198 door bottoms features a rain cap which deflects water and prevents seepage. It is fitted with a nylon sweep which seals the door gap from moisture, drafts, light, dust, insects and rodents. It remains flexible in cold and hot weather and ensures smooth usage in all situations.

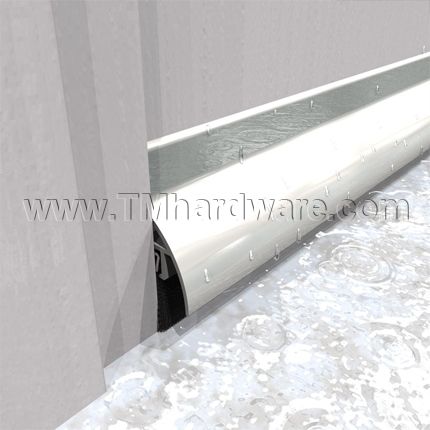

Rain Drip: This door bottom is ideal for outdoor conditions. It features a rain cap design which deflects water and prevents seepage.
Screws: Screws are Included. They are colored to blend unobtrusively with casing.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
 Click to view our Full Warranty Policy.Â
For another mounting option, see our Zero International # 8149AAÂ Door Bottom Sweep, Mortised Nylon Brush
-
QuickShipNo
-
ManufacturerZero International
-
MPN8198
- About this Product
-
Door Shoe Retainer MaterialAluminum
-
Door TypeWooden Door, Metal Door
-
Seal TypeNylon Brush Seal
-
MountingSurface Mounted
-

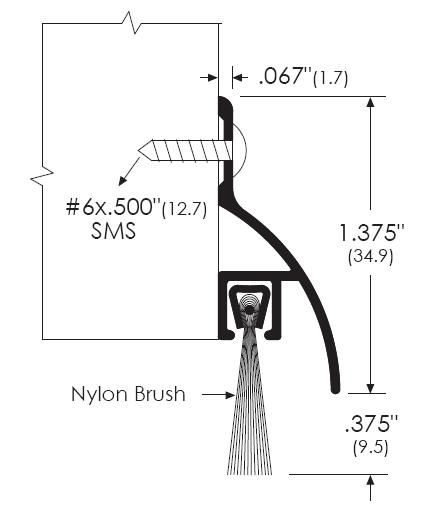

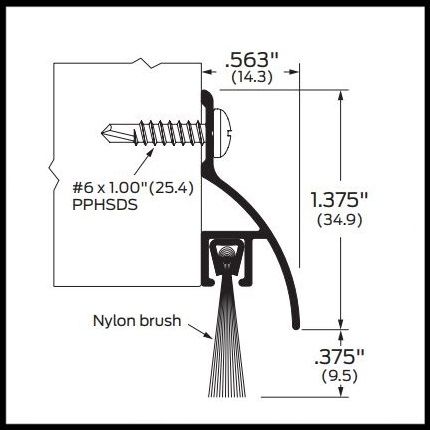

- Dimensions
-
Seal Height.375" Height
-
Total Height1-3/4" Height
-
Additional DimensionsDoor seal is .563" thick
-
LengthCustom Cut to Size
-
- Installation
-
Drill HolesDrill holes are provided
-
Installation Screws#6 x 1.00" (25.4) PPHSDS Provided
-
- Special Features
-
Rain Drip CapYes
-
- Finishes
-
FinishClear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), Gold Finish, Flat Black (US19)
-

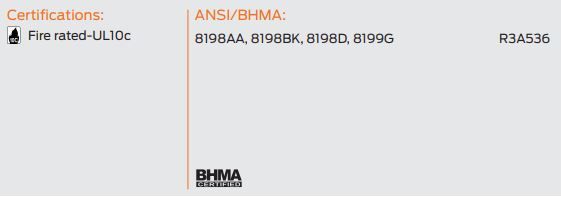

- Compliance Details
-
Compliance DetailsFire Rated, BHMA Certified
-
ANSI DesignationR3A536
-
Warranty1 Year Limited Warranty
-
